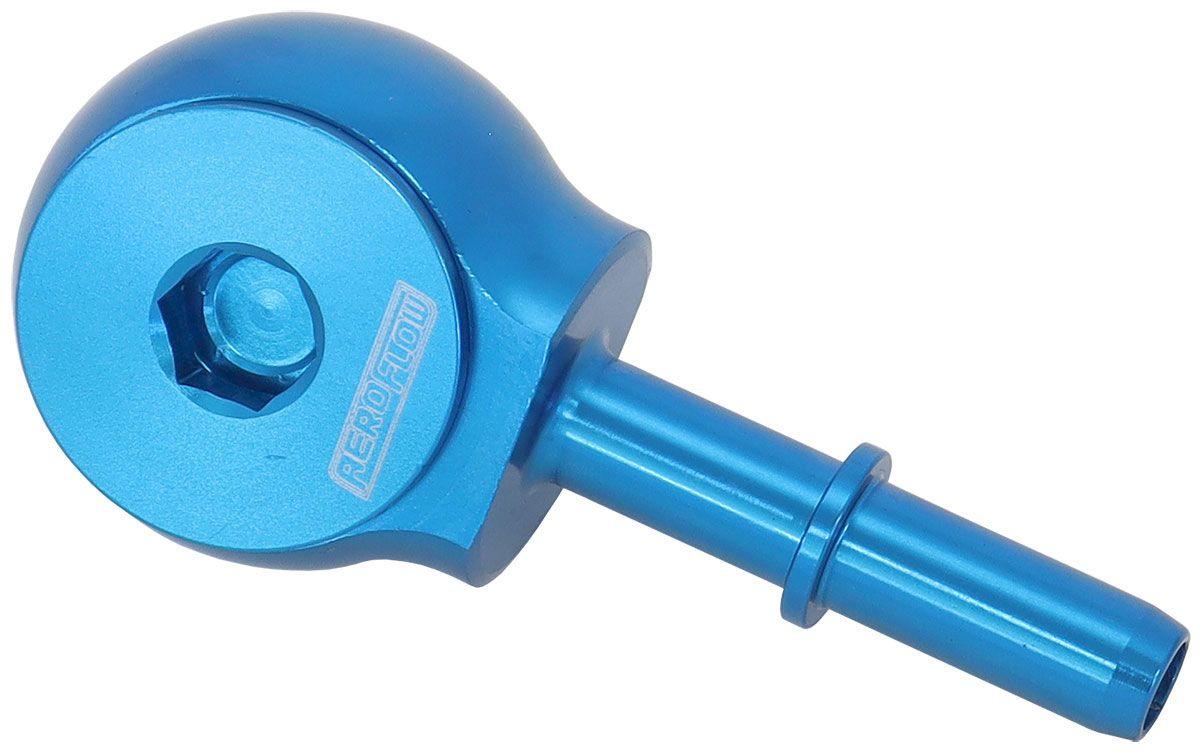

Aeroflow 90° Low Profile -8ORB to EFI Push On 3/8" Barb Blue Finish (AF969-06-08)
Aeroflow 90° Low Profile -8ORB to EFI Push On 3/8" Barb Blue Finish (AF969-06-08) is not in stock at Fast Lane Spares and will ship direct from supplier
Aeroflow 90° Low Profile -8ORB to EFI Push On 3/8" Barb Blue F...
Description
Description
SLIMLINE -8ORB TO 3/8" EFI
Part Number: AF969-06-08
Low Profile 90 Degree -8ORB to EFI Push On 3/8" (9.52mm) Straight Barb.
Aeroflow have designed these low profile 90 degree ORB to efi push on male adapters that areperfect for tight clearance applications. The EFI push male fitting is perfect for OEM applications and designed specifically to suit the rangeof Aeroflow Performance billetquick connect EFI fittings as well. They swivel 360 degrees allowing you get the perfect desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6to -10ORB to various barb sizes.
Specifications: Dimensions :
Height From O-Ring - 18.80mm
OverallLength - 68.55mm
OverallWidth - 31.15mm
