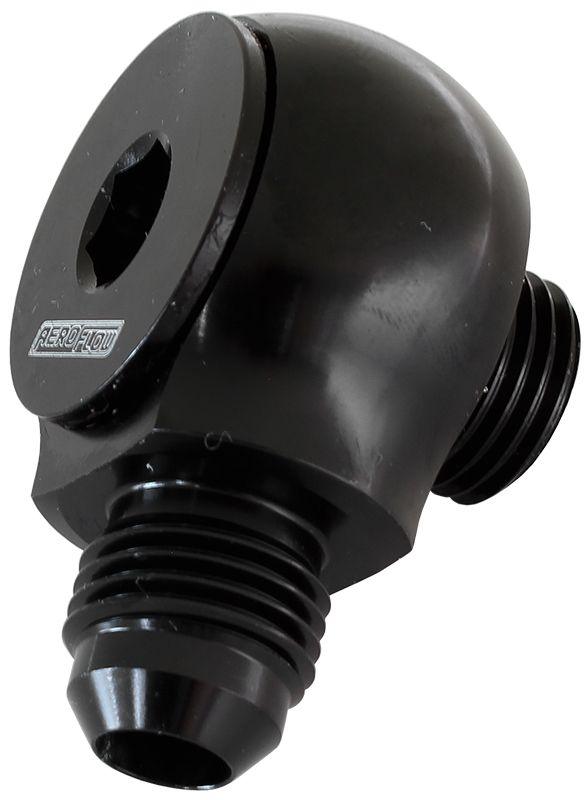

Aeroflow 90° Low Profile -8ORB to -6AN Male Adapter (AF909-06-08BLK)

Black Finish
SKU: AF909-06-08BLK
Original price $85.50 - Original price $85.50
Original price
$85.50 - $85.50
Current price $85.50
Available, allow for 2-10 days shipping

AF909-06-08BLK - SLIMLINE -8ORB TO -6AN 90 DEG

Black Finish

Part Number: AF909-06-08BLK

Aeroflow now have available low profile 90 degree ORB to AN adapters that are perfect for tight clearance applications, they swivel 360 degrees allowing you get you’re desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6 to -12.

Specifications: Dimensions :
Height From O-Ring - 20.75mm
Overall Length - 45.90mm
Overall Width - 31.20mm
