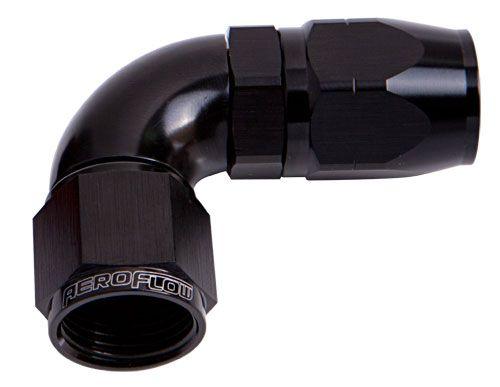

Aeroflow 550 Series Cutter One-Piece Full Flow Swivel 90° Hose End -12AN (AF553-12BLK)

AF553-12BLK - ALLOY 90 DEG HOSE END -12AN

Black Finish. Suits 100 & 450 Series Hose

Part Number: AF553-12BLK

Aeroflow's 550 Series cutter fittings are a CNC machined one piece fitting which provide uninterrupted flow. The billet cutter end separates the wire braid for maximum hose retention, sealing the hose for a second time which provides a greater sealing area for strength and easier assembly. The tight mandrel bent radius body has superior wall thickness and a swivel head allowing for easy adjustment. Aeroflow's 550 series fittings are the choice of professionals for use in fuel systems, cooling systems, vacuum applications and oil systems. Compatible hose: 100 Series Stainless Steel braid and 450 Series Lightweight Nylon braid.

Note:
Not compatible for power steering and automatic transmission line applications. Hose ends are hard anodised (excluding Silver finish).
