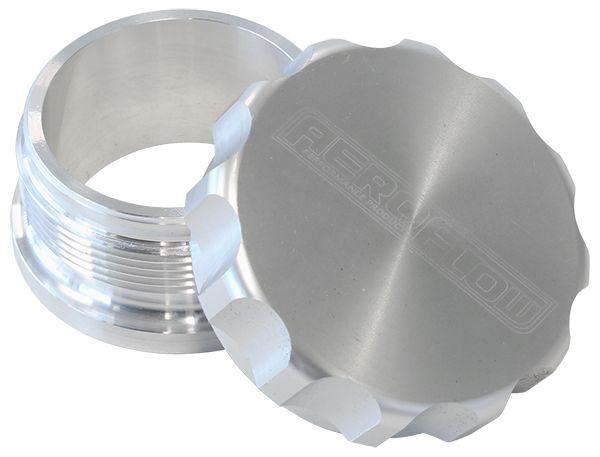

Aeroflow 3" Billet Aluminium Weld-On Filler with Silver Cap (AF460-48S)

SKU: AF460-48S
Original price $115.70 - Original price $115.70
Original price
$115.70
$115.70 - $115.70
Current price $115.70
+ GST
Availability:
Available, allow for 2-10 days shipping

AF460-48S - 3" ALUM WELD BUNG AND CAP

Part Number: AF460-48S

Billet Alloy Weld On Filler & Cap.

Aeroflow Performance non-vented filler caps are manufactured from 6061-T6 aluminium and are supplied with BUNA-N (wide range of fuel and oils) and EPR (Nitro methane fuel) O-Ring seals. Available in 1", 1-1/2", 2", 2-1/2" & 3" diameters in Blue, Red, Black, Gold, Purple, Raw, Polished and Silver anodized finishes.ย

Bore Size: 76.2mm (3")

Neck O.D.: 89mm (3-1/2")

Neck Height: 25.4mm (1")

Specifications: Bore - 76.2mm (3")
Neck Outside Diameter - 89mm (3-1/2")
Cap Internal Diameter - 86.7mm (3-27/64")
Overall Height - 39.5mm
Thread - 3-1/2"-12 UNF
Replacement O-Ring Kit - AF460-48-KIT
