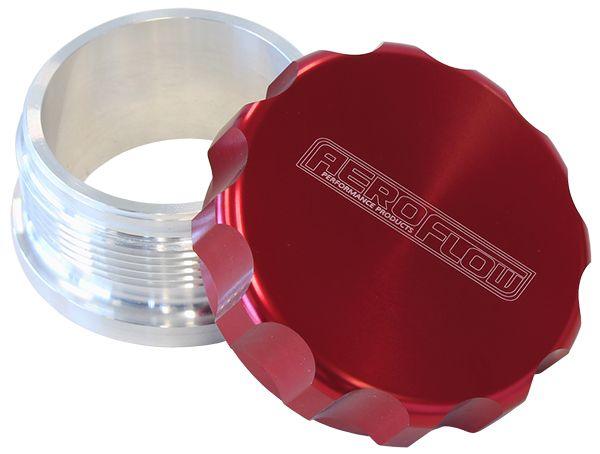

Aeroflow 2-1/2" Billet Aluminium Weld-On Filler with Red Cap (AF460-40R)

SKU: AF460-40R
Contact for availability
Original price $94.30 - Original price $94.30
Original price
$94.30
$94.30 - $94.30
Current price $94.30
+ GST
Availability:
Please contact for availability

AF460-40R - 2-1/2" ALUM WELD BUNG AND CAP

Part Number: AF460-40R

Billet Alloy Weld On Filler & Cap.

Aeroflow Performance non-vented filler caps are manufactured from 6061-T6 aluminium and are supplied with BUNA-N (wide range of fuel and oils) and EPR (Nitro methane fuel O-Ring seals. Available in 1", 1-1/2", 2", 2-1/2" & 3" diameters in Blue, Red, Black, Gold, Purple, Raw, Polished and Silver anodized finishes.ย

Bore Size: 63.5mm (2-1/2")

Neck O.D.: 76.2mm (3")

Neck Height: 25.4mm (1")

Specifications: Bore - 63.5mm (2-1/2")
Neck Outside Diameter - 76.2mm (3")
Cap Internal Diameter - 73.8mm (2-29/32")
Overall Height - 37.5mm
Thread - 3"-12 UNF
Replacement O-Ring Kit - AF460-40-KIT
