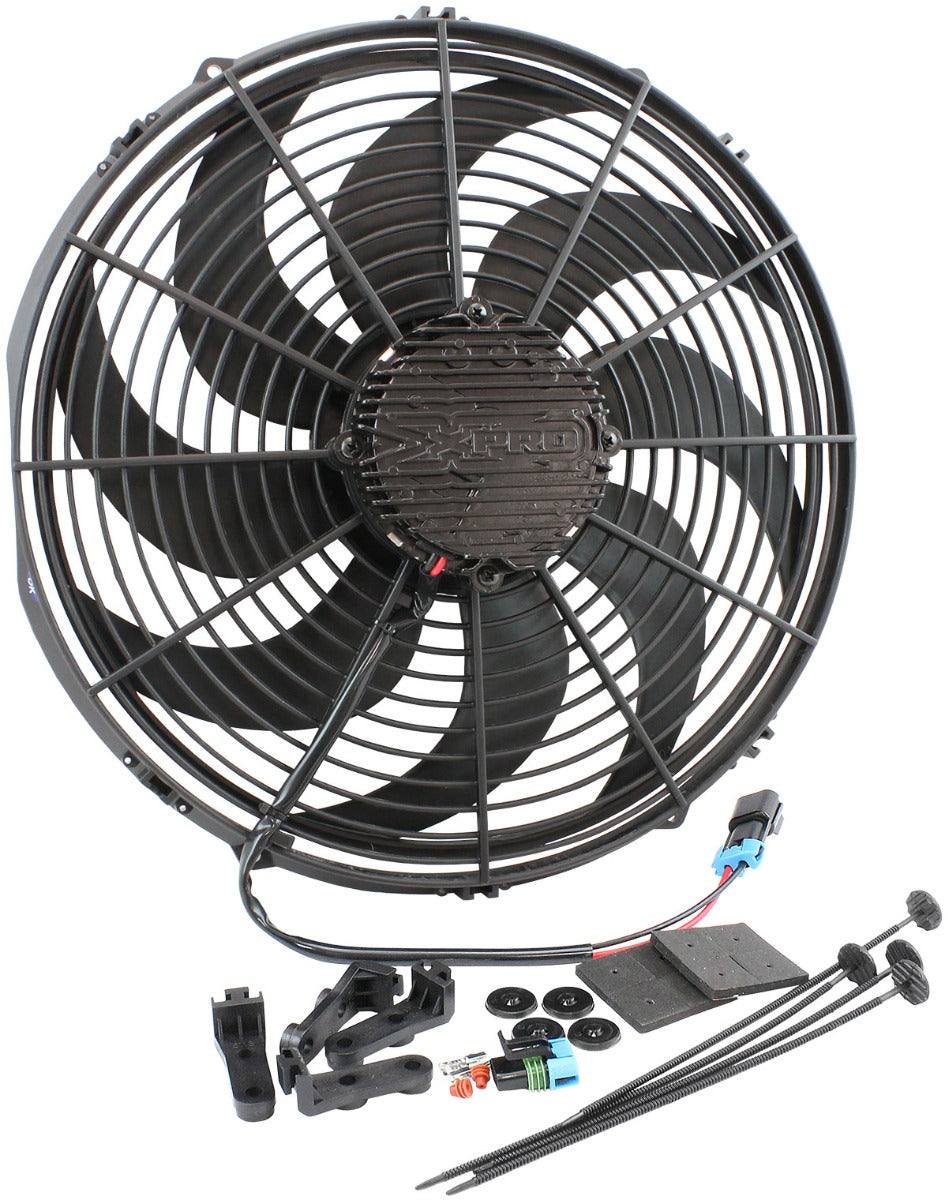

Aeroflow 16" Brushless Electric Fan with Curved Blades 3,300 CFM Rating. Non Reversable (AF49-1126)

3,300 CFM Rating. Non Reversable
SKU: AF49-1126
Original price $402.60 - Original price $402.60
Original price
$402.60
$402.60 - $402.60
Current price $402.60
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

BRUSHLESS 16" ELECTRIC FAN

3,300 CFM Rating. Non Reversable

Part Number: AF49-1126

The Aeroflow Performance universal brushless electric fans are suitable for both A/C condenser, radiator cooling or can be mounted to any fluid cooler. These fans provide an increase in air flow with less amp draw, compared to our regular electric fans. This makes it better for air conditioning performance, cooler engine running, and increased engine power with less load on the electrical system. This brushless fan does not require any specific controllers and just a simple positive (+) and negative (-) wiring with an appropriate automotive relay. It will not work with any variable speed fan controllers but on/off thermostat controllers will work which are sold separately. Designed for 12-volt systems only with a soft start ramp up feature which prevents amp spikes with a fan turning on and off.

Specifications:

Fan Blade Diameter: 16" (406mm)

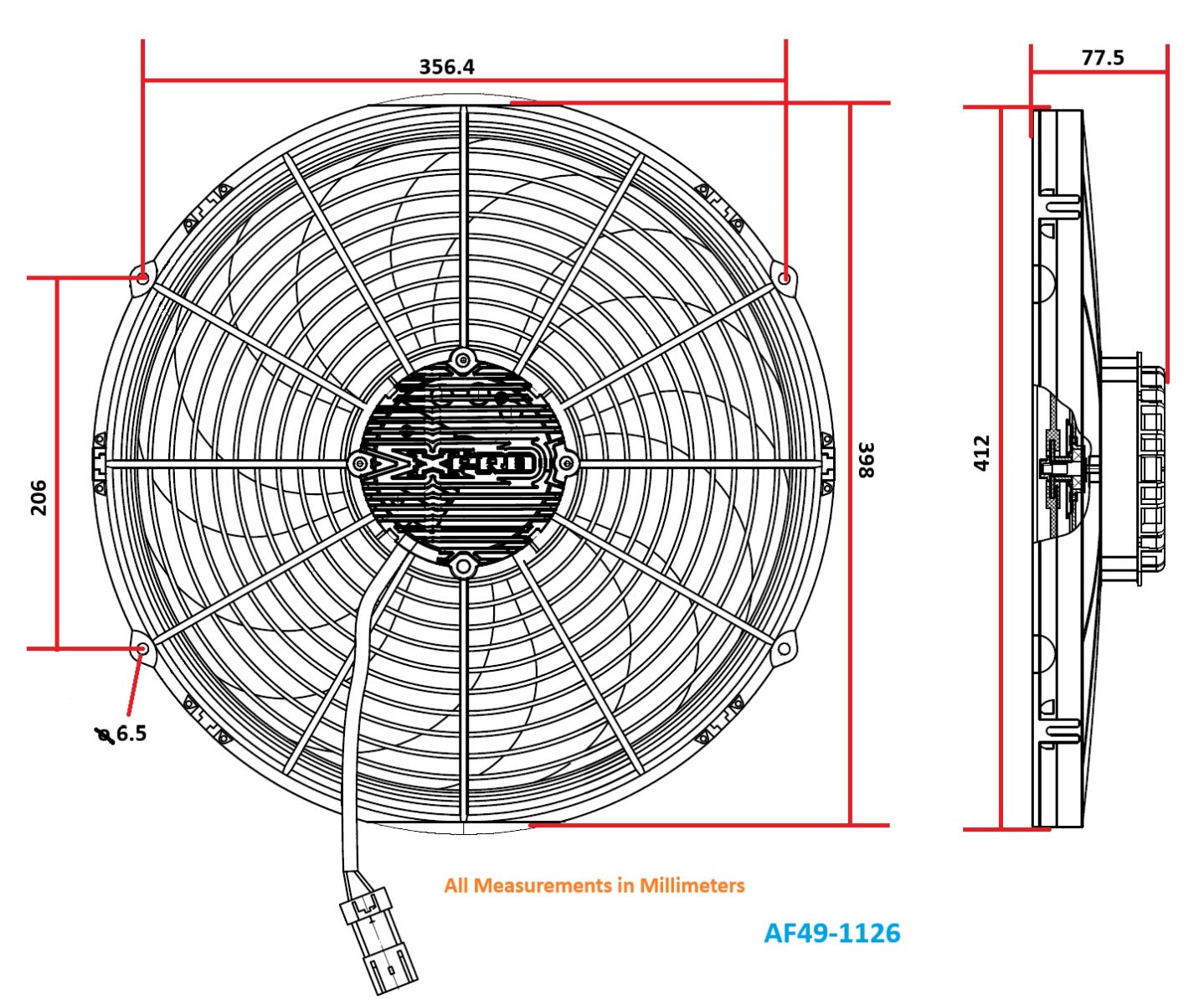

Fan Dimensions: 16.5" (419mm) x 15.75" (400mm) x 3" (80mm)
Fan CFM Rating: 3,300
Fan Style: Puller
Voltage: 12 Volt
Amp Draw: 24
Weatherproof Rating: IP66
Weight: 2.13kg
Recommended Fuse Size: 35 amp

Important Information:

This fan is strictly a puller type fan and is not reversible.
