AEM Electronics  |  SKU: 25-204

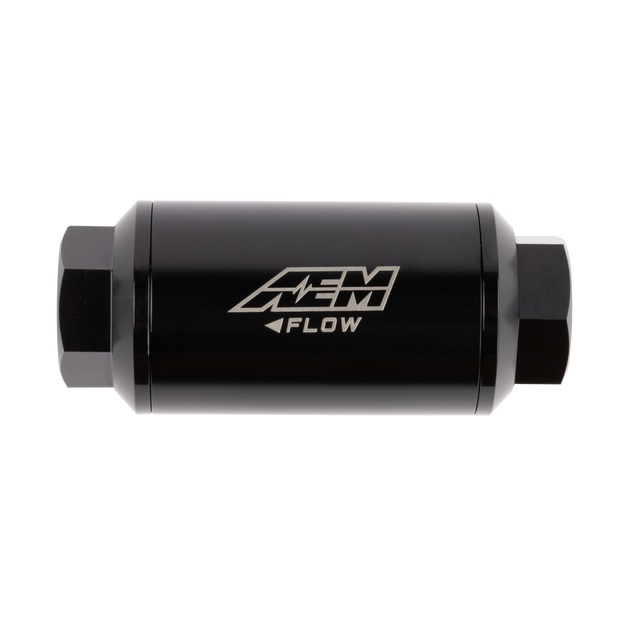

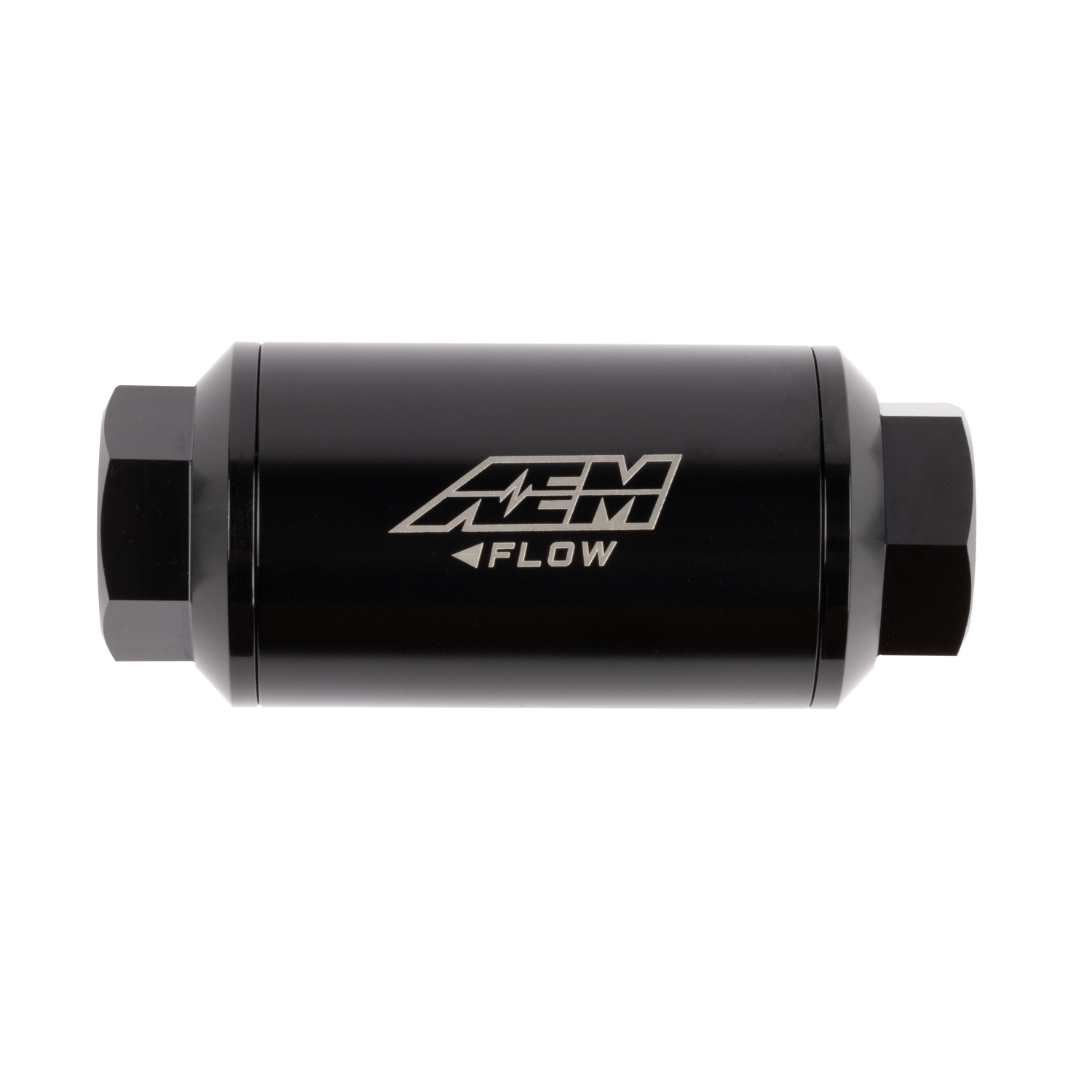

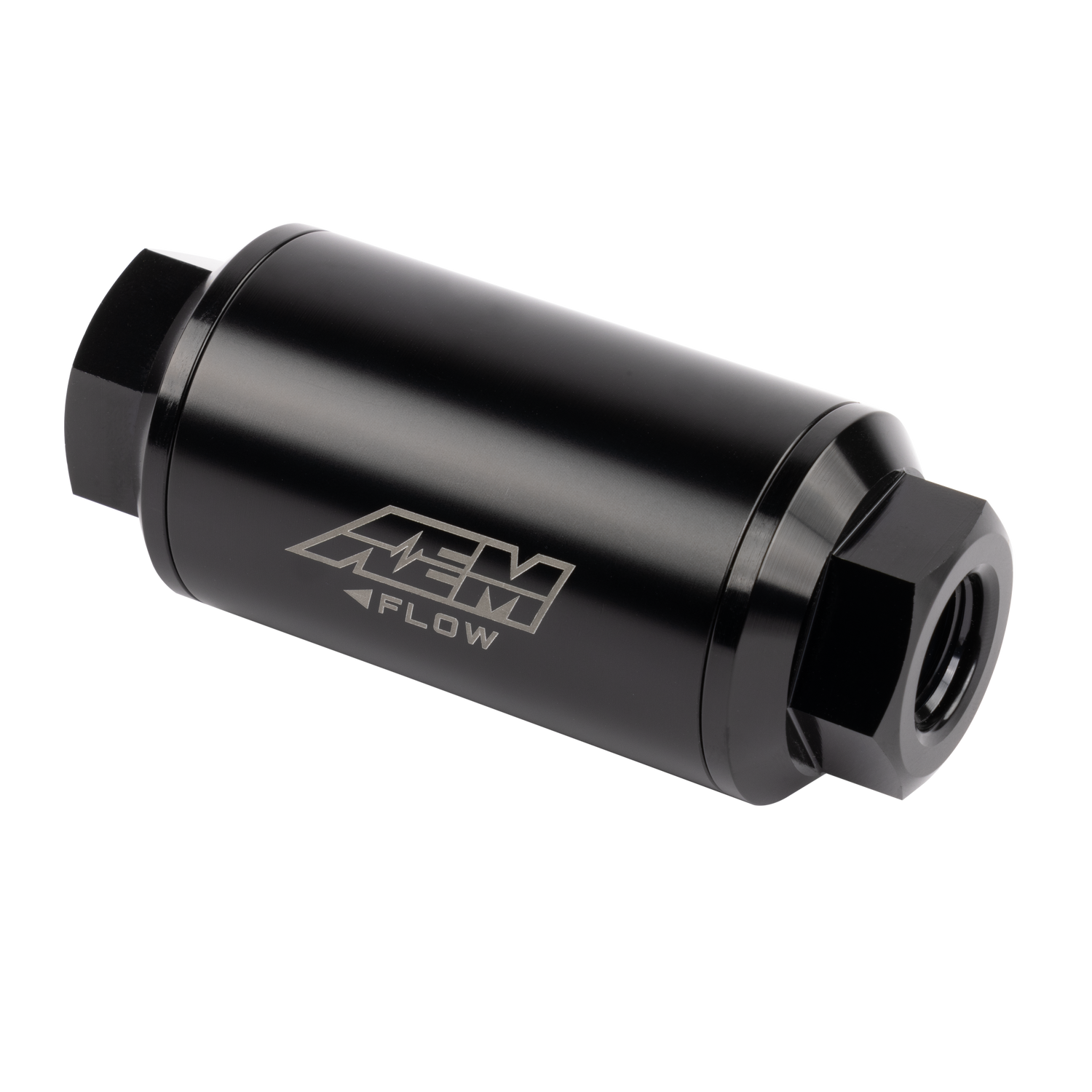

AEM Universal High Volume 100GPH, -6AN ORB, 10 Micron Fuel Filter - 25-204

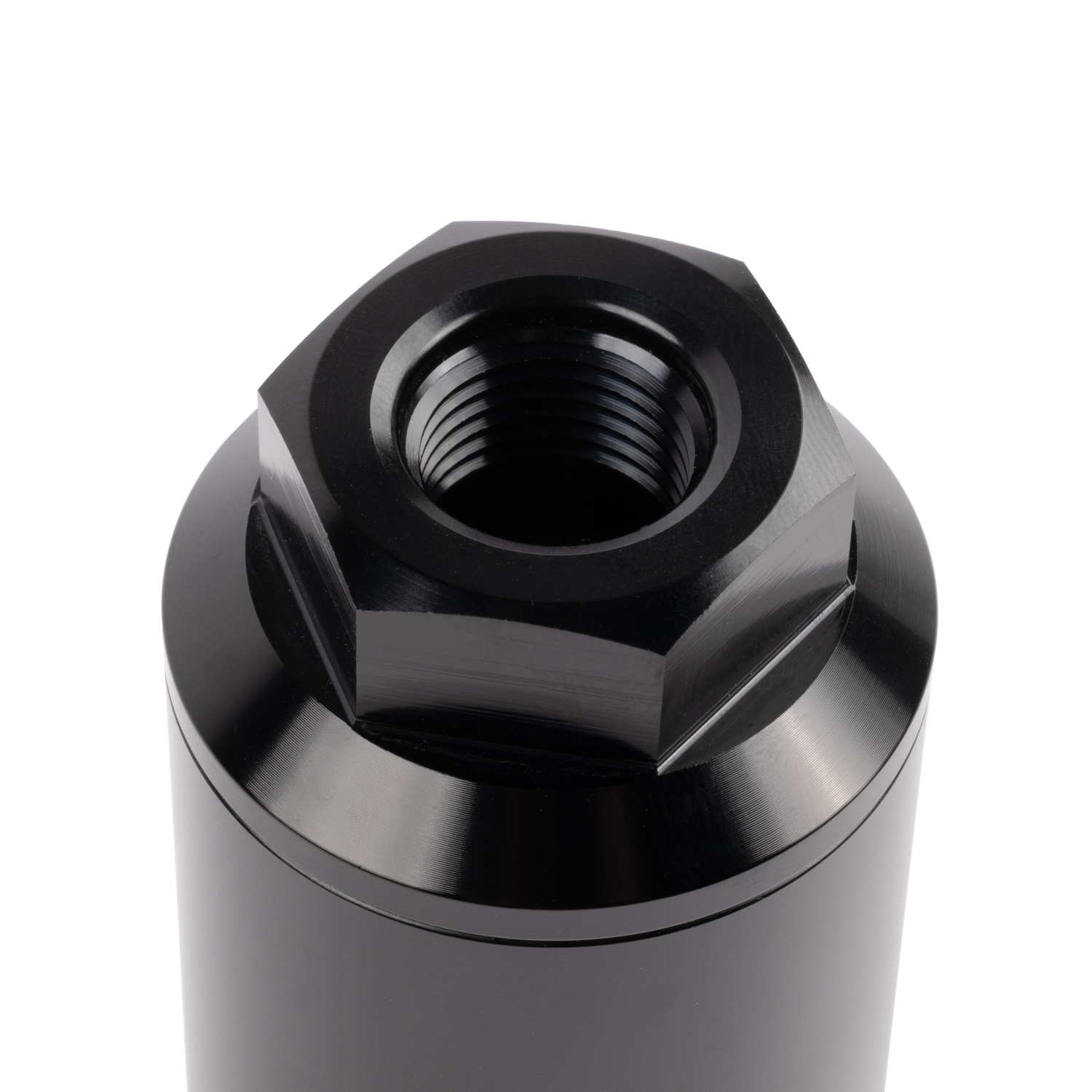

AEM's Universal High Flow 100GPH, -6 AN ORB Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -6AN female fittings.Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, E85, alcohol or gasoline/alcohol blended fuels.The commonly available replacement filter cartridges filter particles as small as 10 microns.***Earls Part #230605ERL***

$195.60 NZD + GST
Shipping calculated at checkout.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description
AEM's Universal High Flow 100GPH, -6 AN ORB Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -6AN female fittings. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, E85, alcohol or gasoline/alcohol blended fuels. The commonly available replacement filter cartridges filter particles as small as 10 microns. ***Earls Part #230605ERL***

Part Number: 25-204

AEM's Universal High Flow -6 AN ORB Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -6AN female fittings. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing O-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels.

Features and Benefits

• Gasoline/E85 Compatible
• Flows 100 GPH
• 10 Micron Filtration
• -6AN ORB inlet/outlet
• Compact 3.5" X 1.5" size

Specifications
  • Specifications
    BrandAEM
    CategoryAir and Fuel Delivery
    ColorBlack
    ColorBlack Anodized
    Diameter1.5
    Emission Code5
    End 1 GenderFemale
    End 2 GenderFemale
    Fitting TypeMale
    Fuel TypeGas
    Fuel TypeE85
    Fuel TypeRace Fuels
    Grade TypePerformance
    Inlet Size6 AN ORB
    Length3.5
    MaterialBillet Aluminum
    Micron10
    part typeFuel Filter
    Product TypeFuel Filter
    Sub CategoryFilters
    WarrantyManufacturer's 1 Year Warranty
