AEM Electronics | SKU:
30-8601

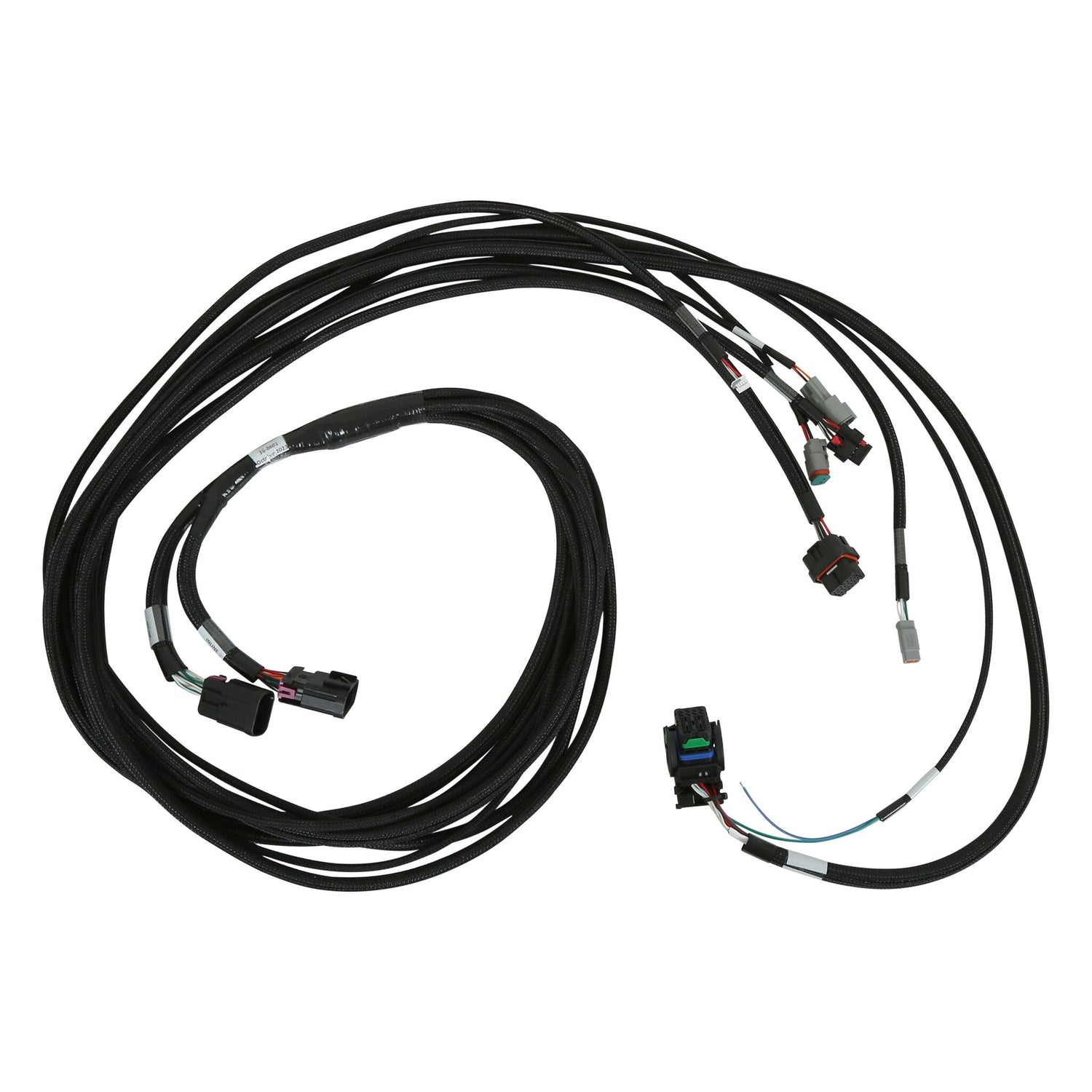

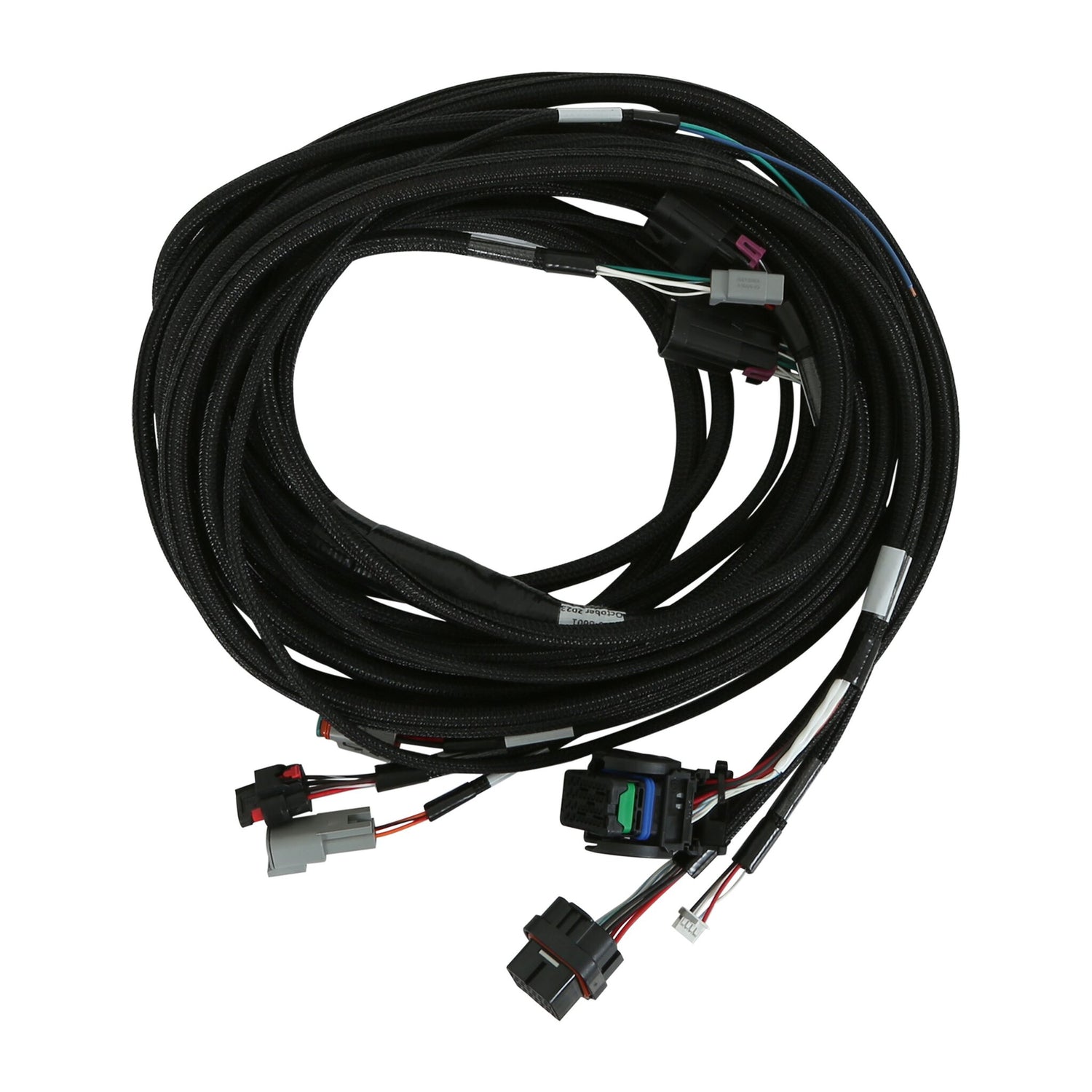

AEM Rear Low Voltage VCU Harness - 30-8601
Low voltage harness assembly designed to be installed in the rear half of the electric vehicle.
Regular price
$1,496.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
AEM Rear Low Voltage VCU Harness - 30-8601
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Low voltage harness assembly designed to be installed in the rear half of the electric vehicle.
Part Number: 30-8601
This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.
Features and Benefits

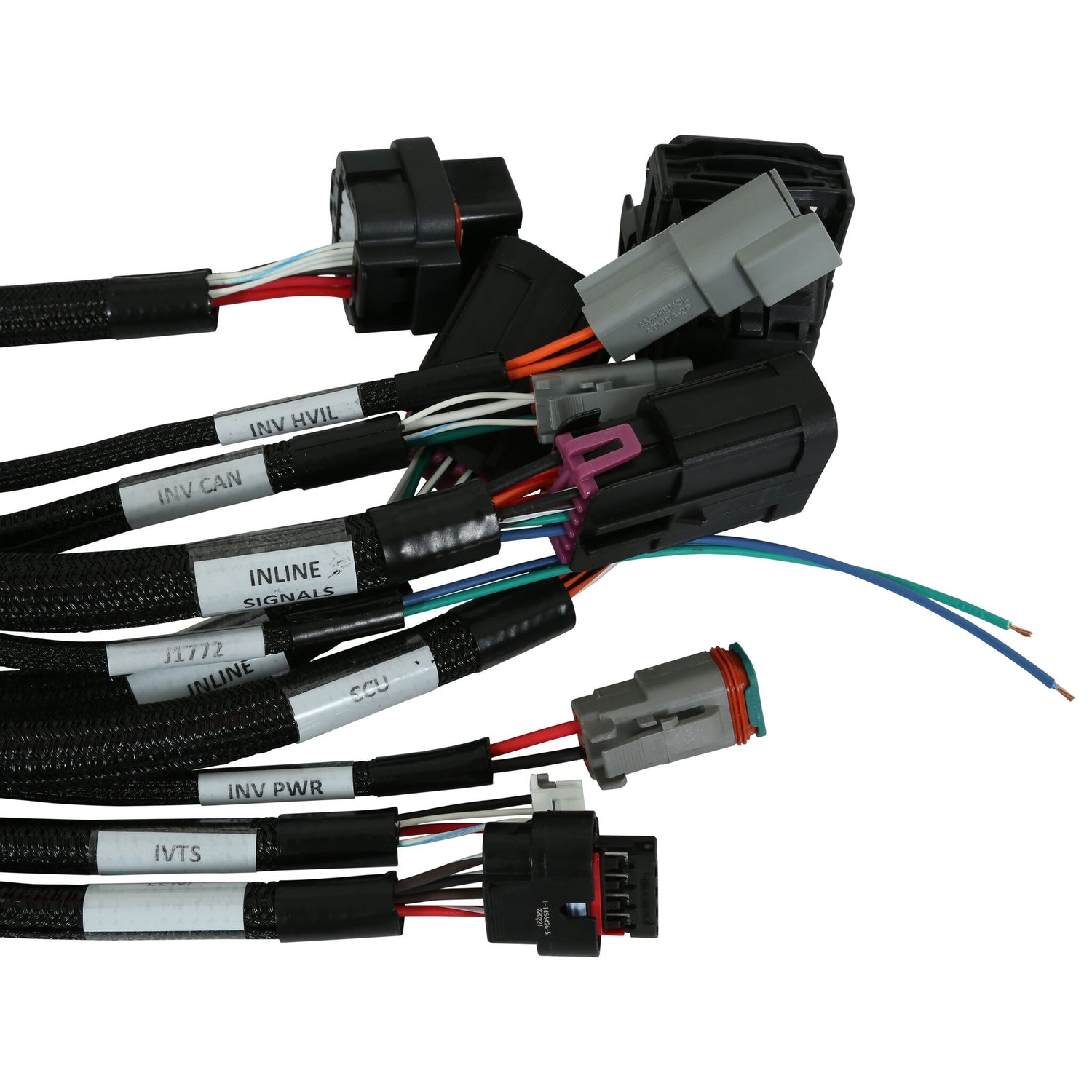

• Connector interface features include:
• Power Distribution Unit (PDU)
• Combined Charging Unit (CCU)
• Isabellenhutte (IVTS) - current voltage shunt based measuring system
• - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
• Inverter CAN (INV CAN)
• Inverter High-Voltage Interlock (HVIL)
• Inverter Power (INV PWR)
• J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
• Inline Signals
• Inline CAN
Part Number: 30-8601
This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.
Features and Benefits
• Connector interface features include:
• Power Distribution Unit (PDU)
• Combined Charging Unit (CCU)
• Isabellenhutte (IVTS) - current voltage shunt based measuring system
• - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
• Inverter CAN (INV CAN)
• Inverter High-Voltage Interlock (HVIL)
• Inverter Power (INV PWR)
• J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
• Inline Signals
• Inline CAN
Specifications
Specifications
-
Specifications
Brand AEM Category Electrical, Lighting and Body Color Black Emission Code 6 Gender Male Female part type Dash Harness Connector Product Type Wiring Harness Sub Category Electrical Connectors Terminal Gender Male Female Warning California Proposition 65 -
