AEM CD-7F Digital Dash - 30-5700F

Carbon - Non-Logging - Non-GPS Display - 7 in.

Part Number: 30-5700F

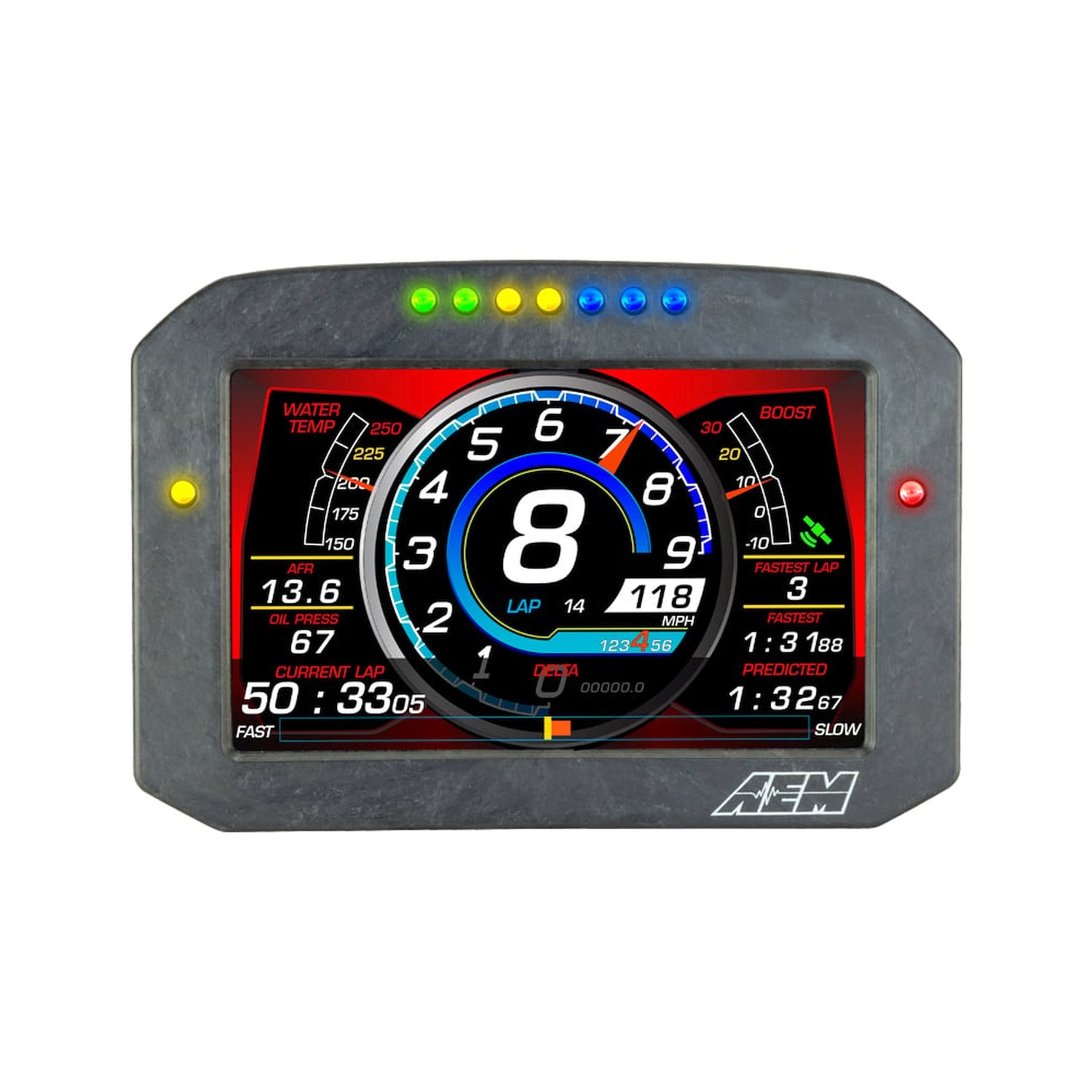

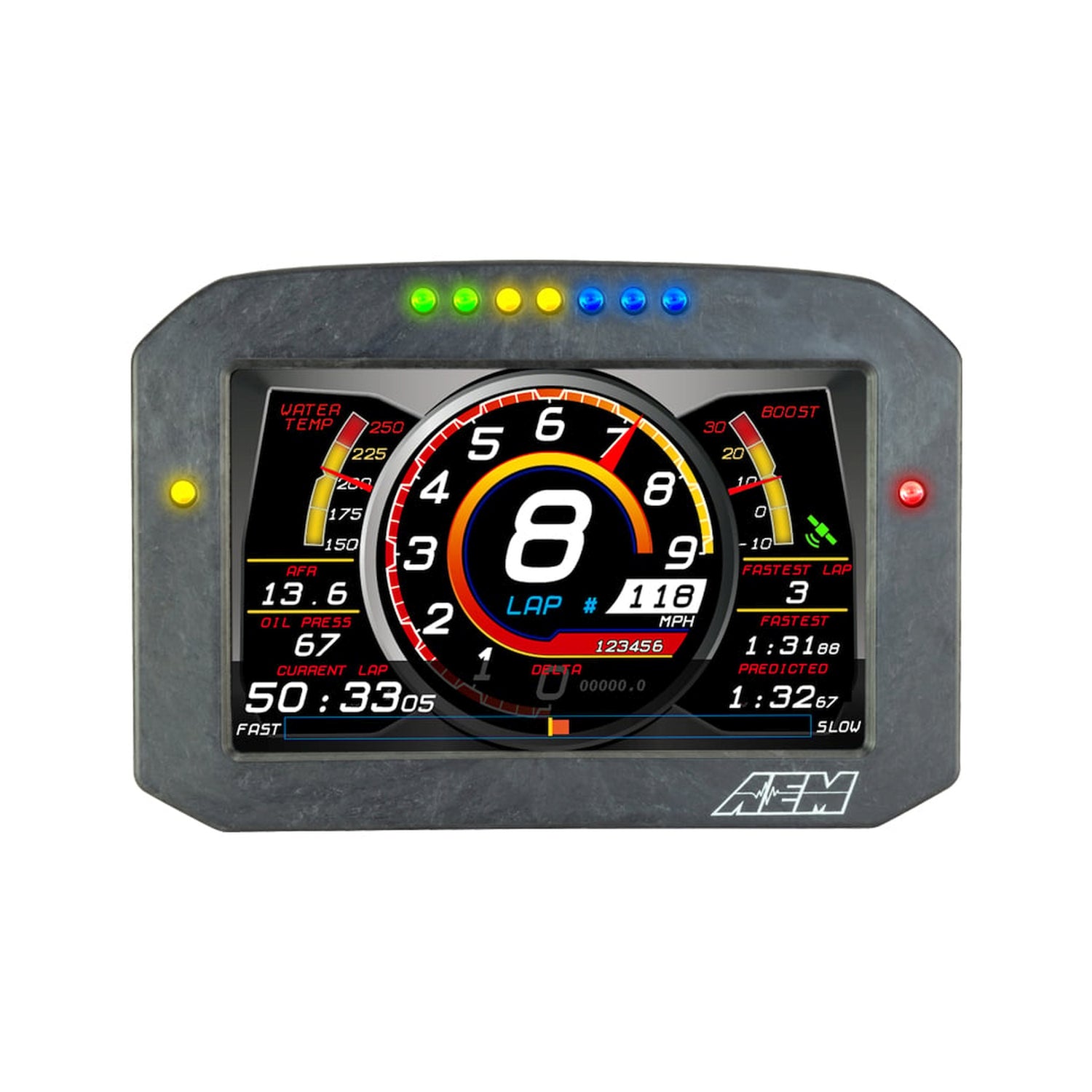

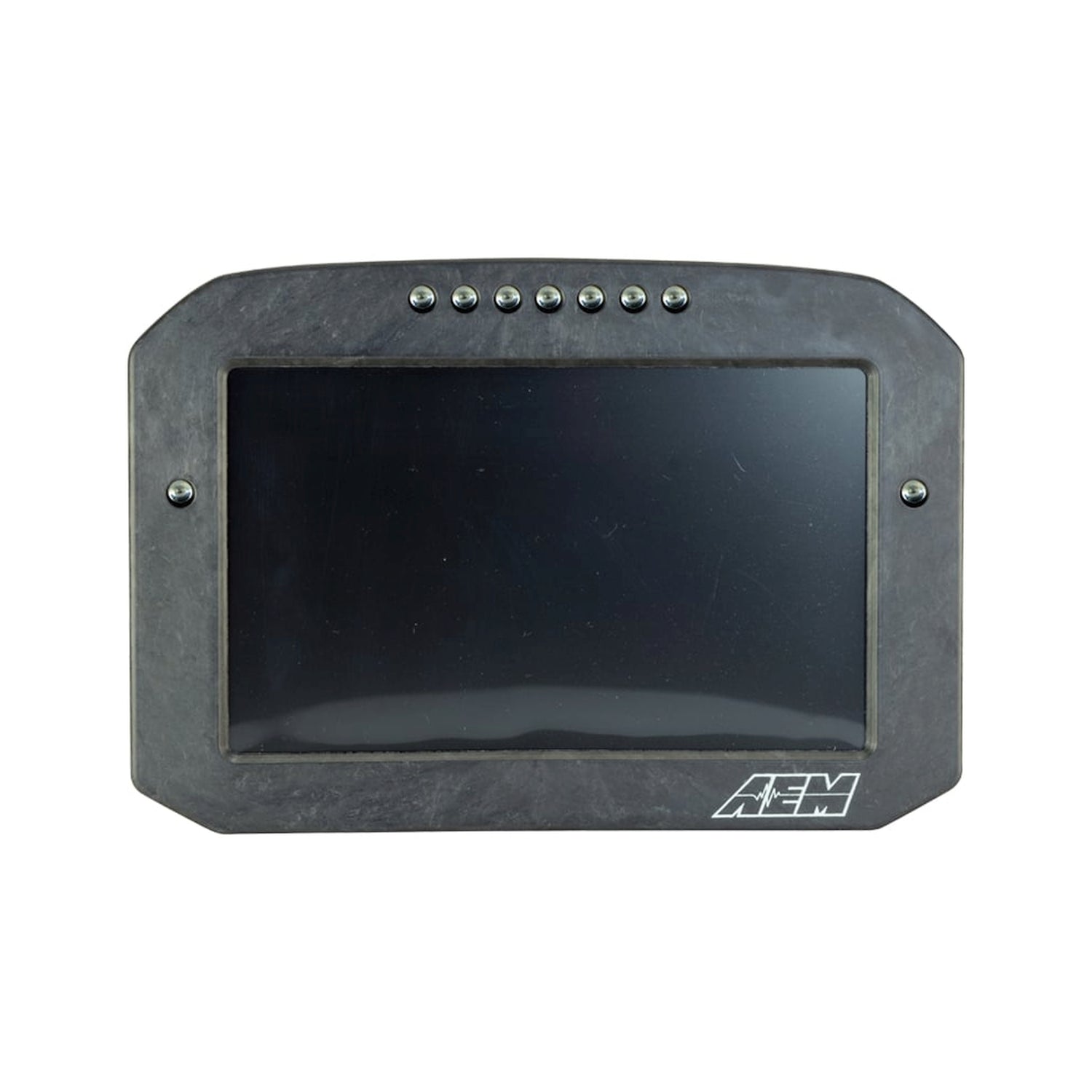

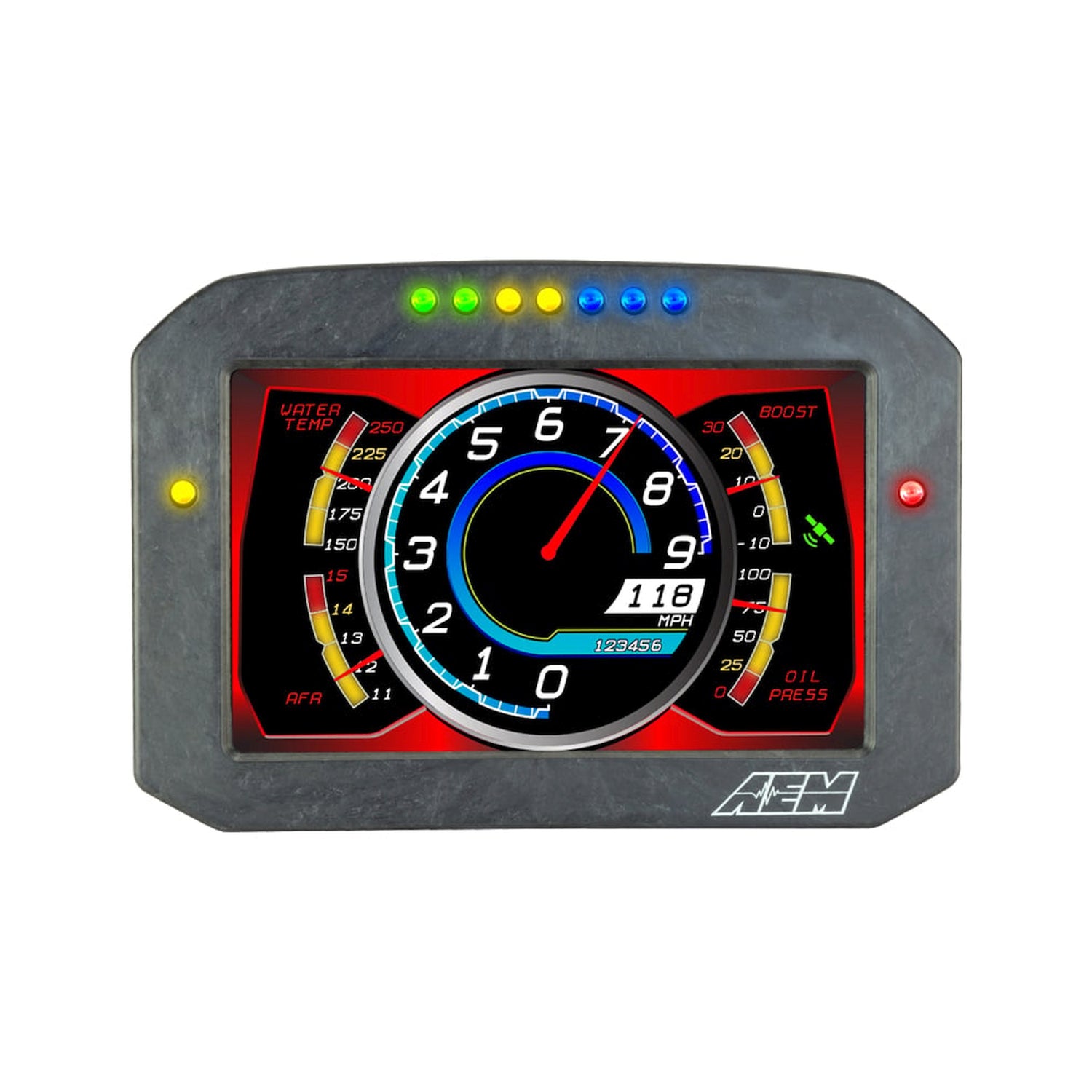

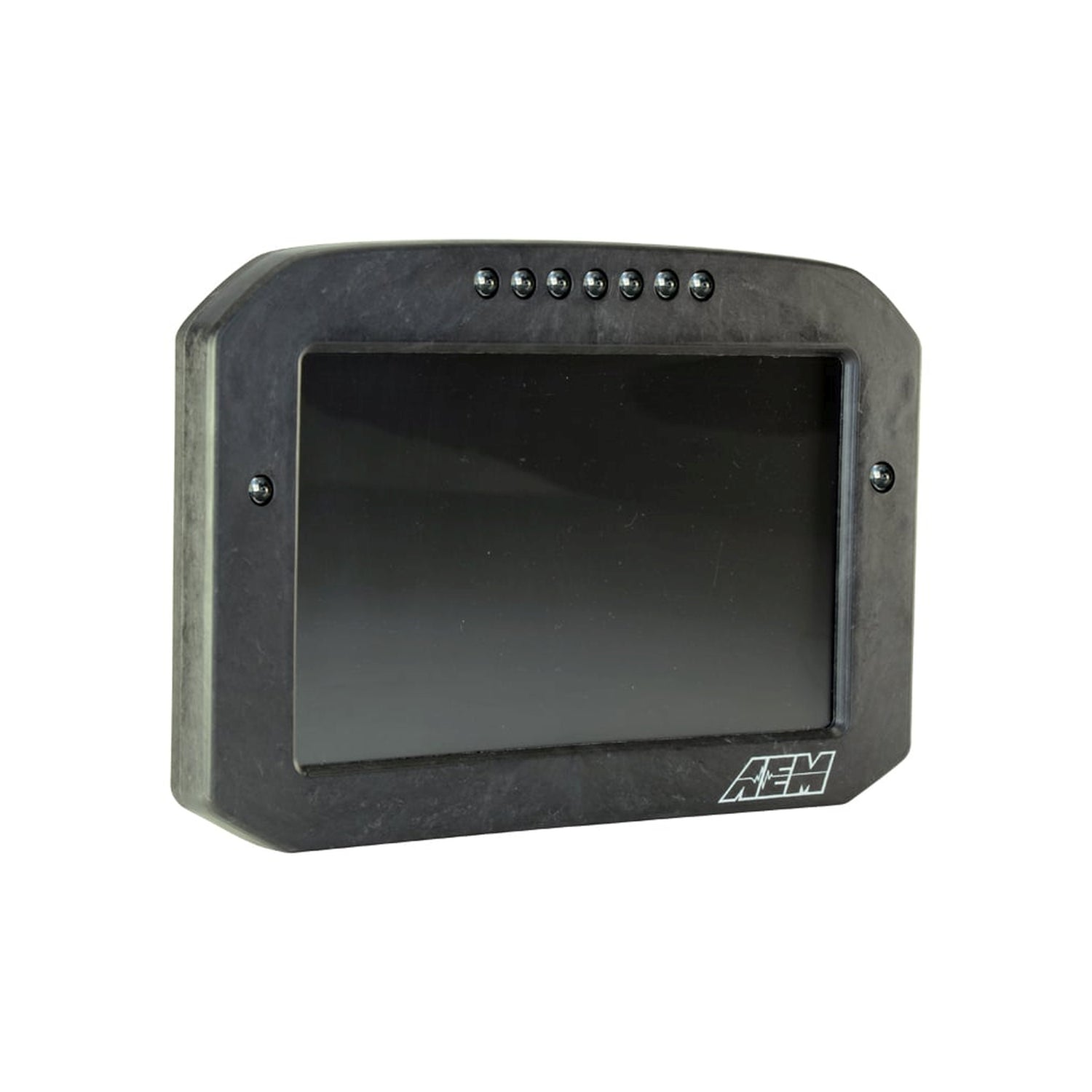

AEM CD7 Carbon Digital Flat Panel Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the enclosure.AEM CD7 Carbon Digital Flat Panel Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable.

Features and Benefits

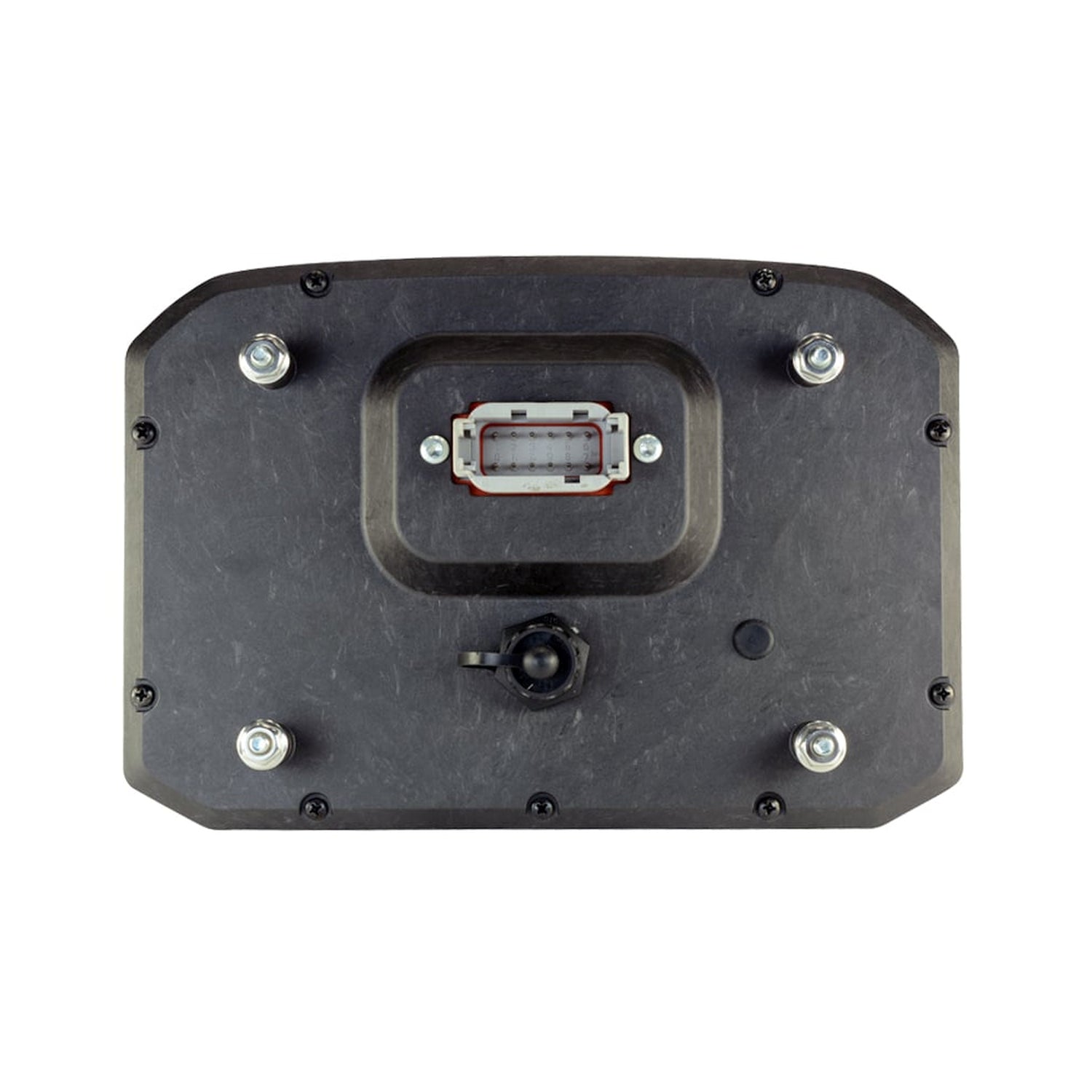

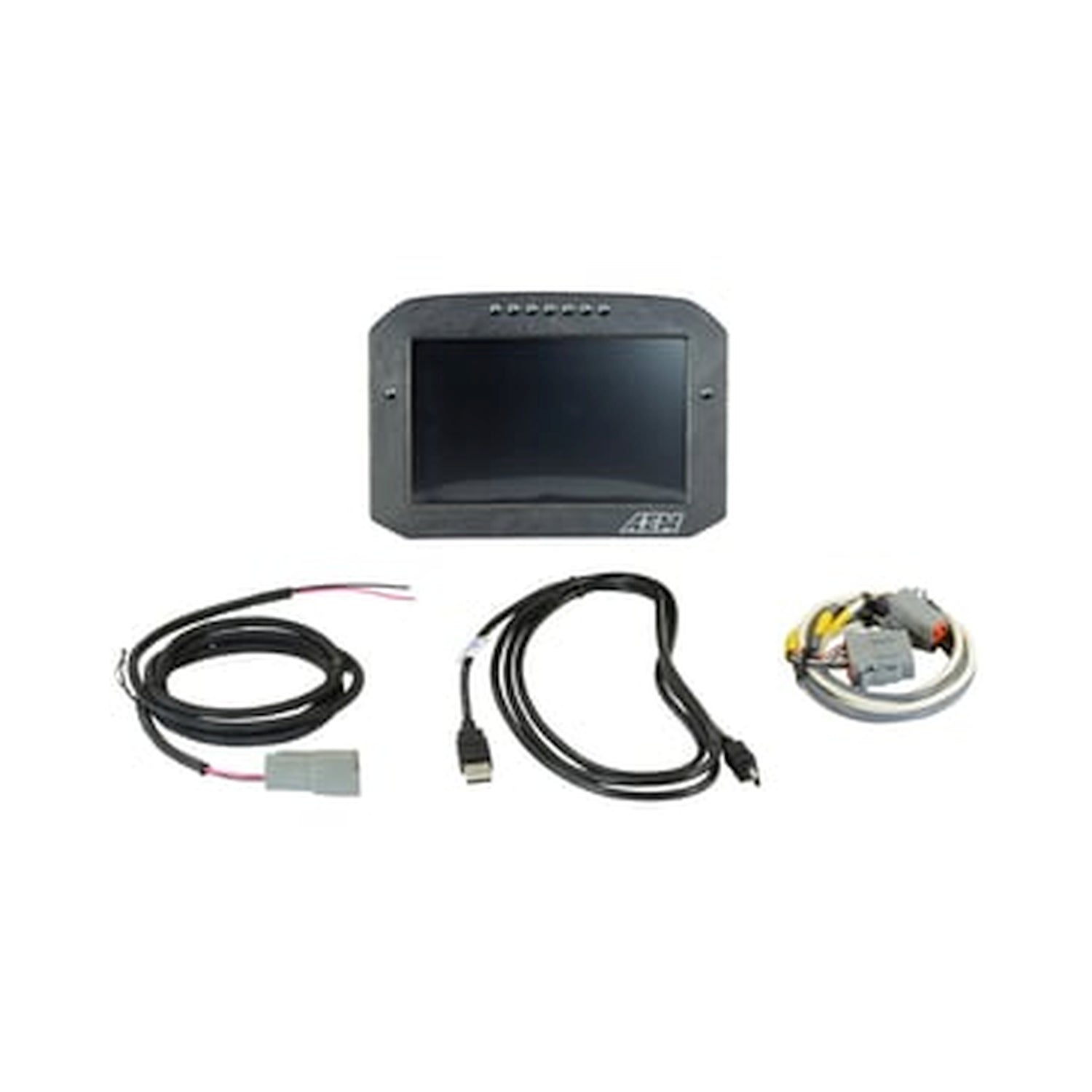

• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side

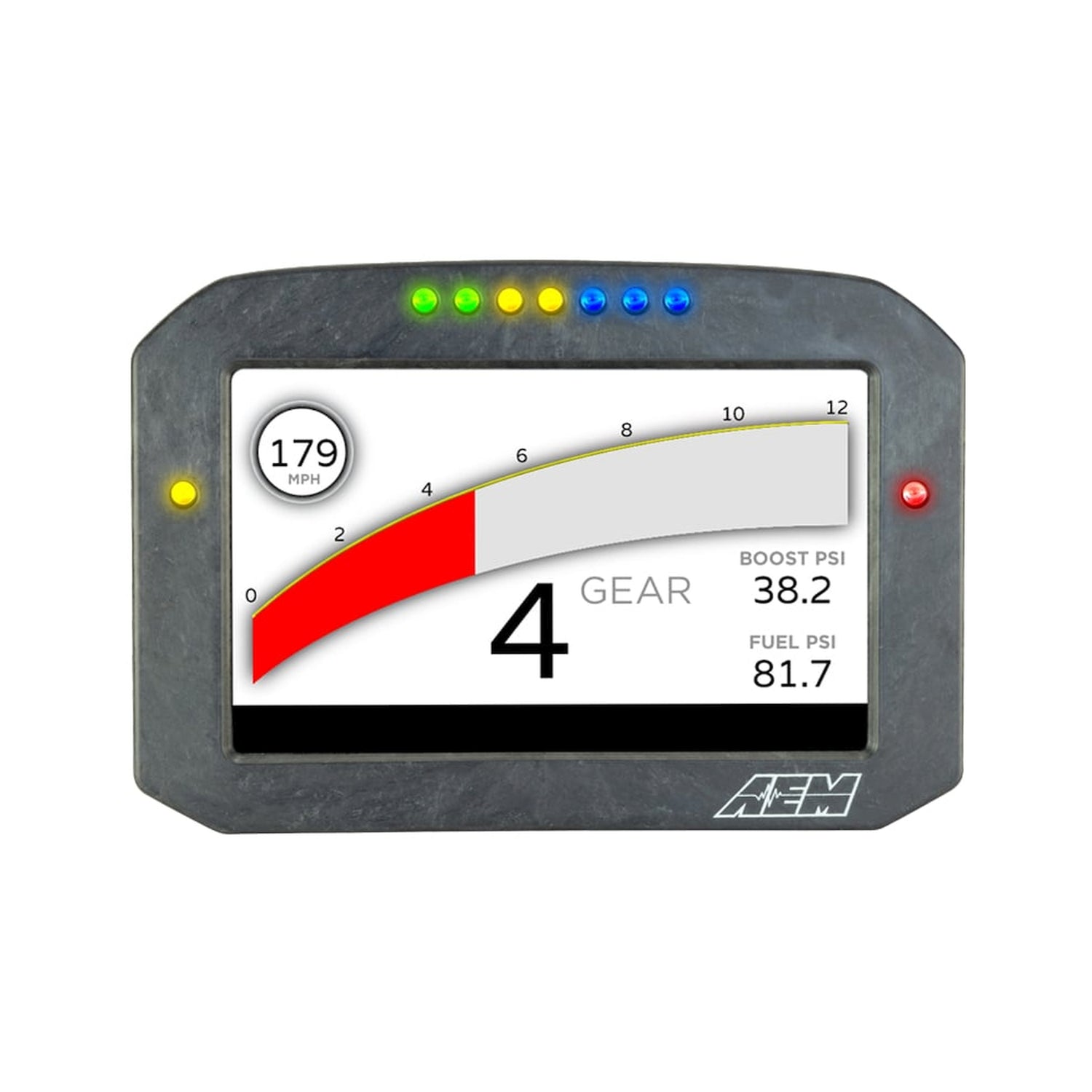

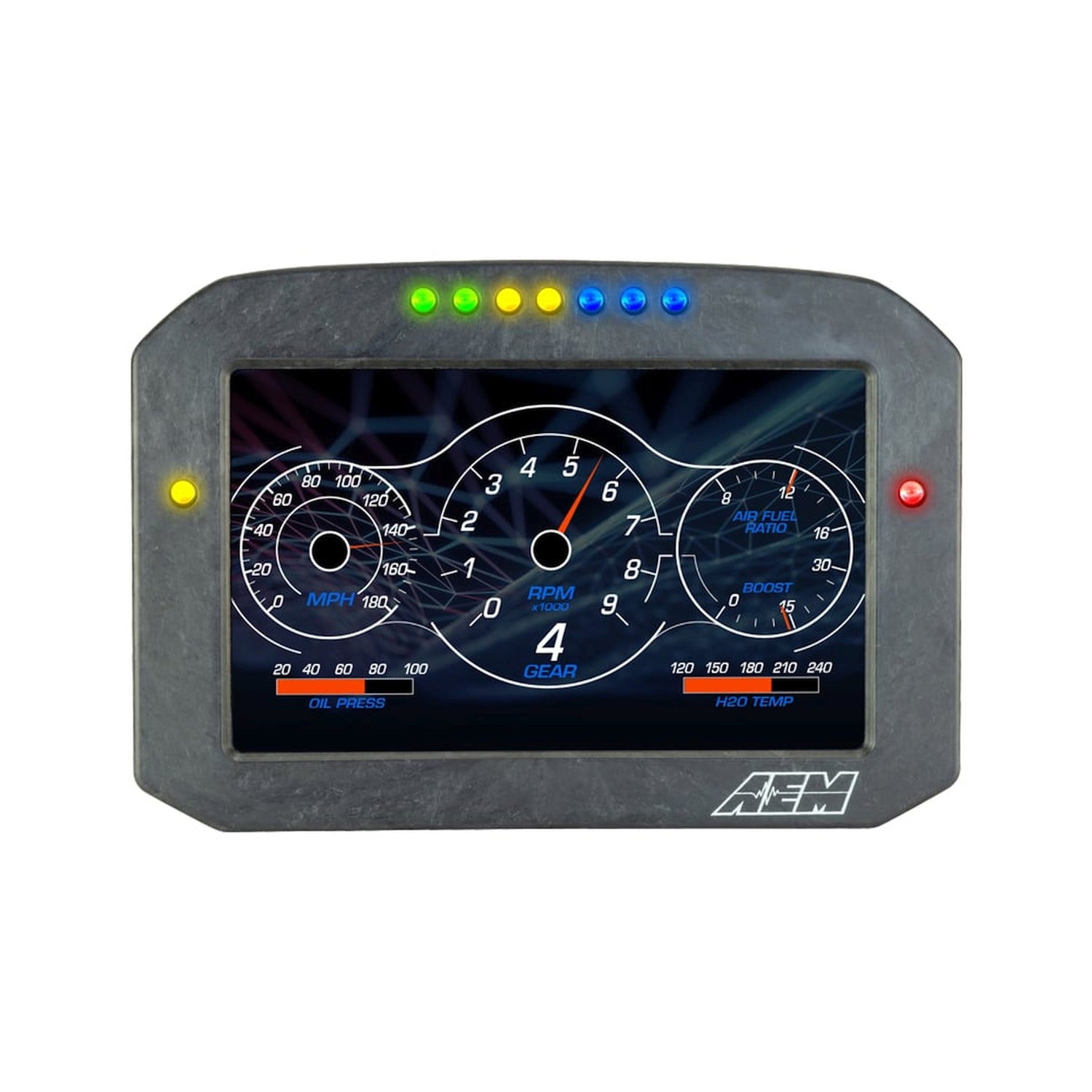

• Use the included page layouts and input your channels and text, or create your own from scratch
• Two programmable LEDs
• Convert CAN bus channel values to user-defined text
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Available with or without onboard 20 Hz GPS receiver and antenna
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Odometer function
• Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
• Layout files interchangeable between all CD Carbon Dashes
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
• 'Headlight-in' connection dims the dash and LEDs during night operation
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• User supplied graphics can be changed based on channel values (up to the full screen size)

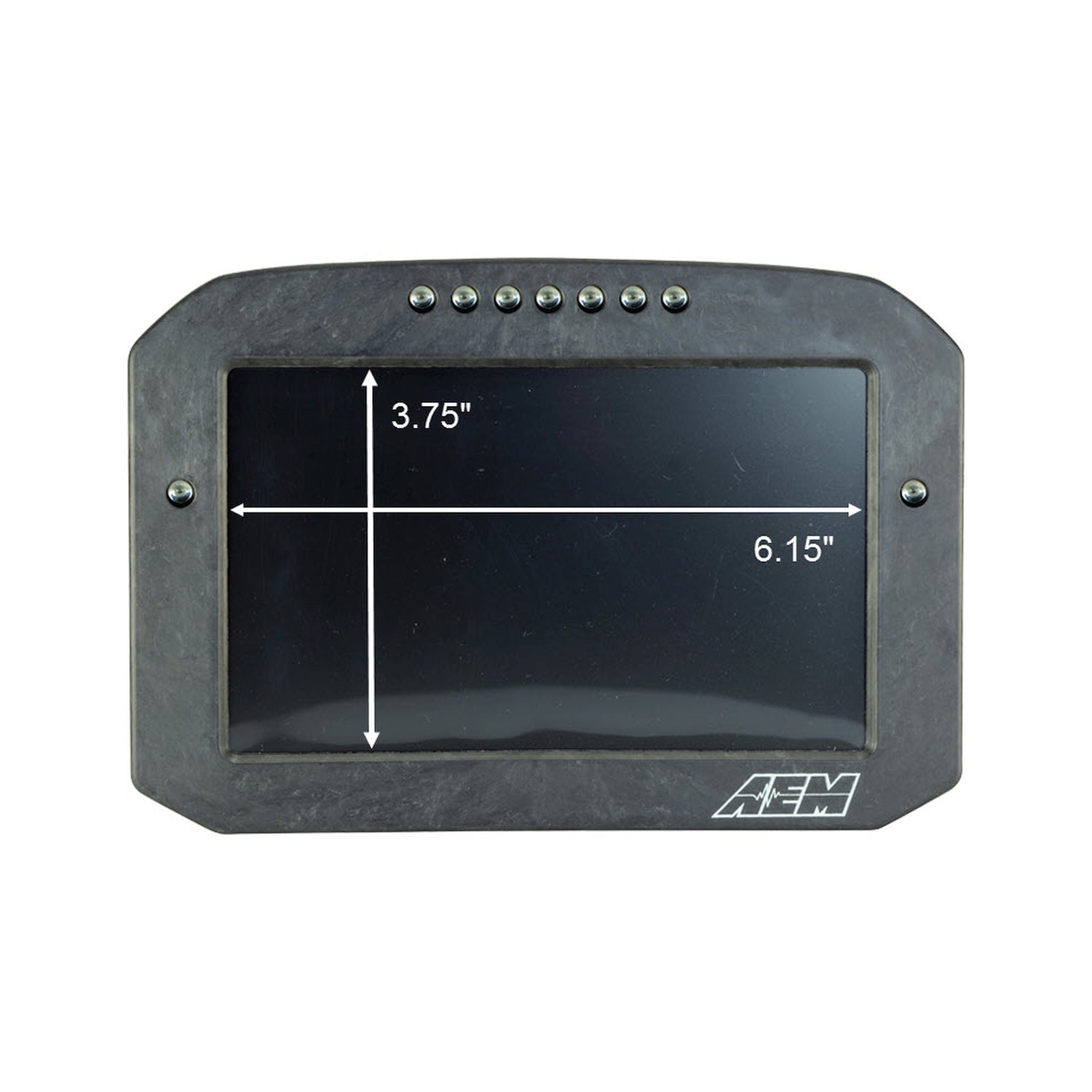

• Full color 7" screen with 800x480 resolution

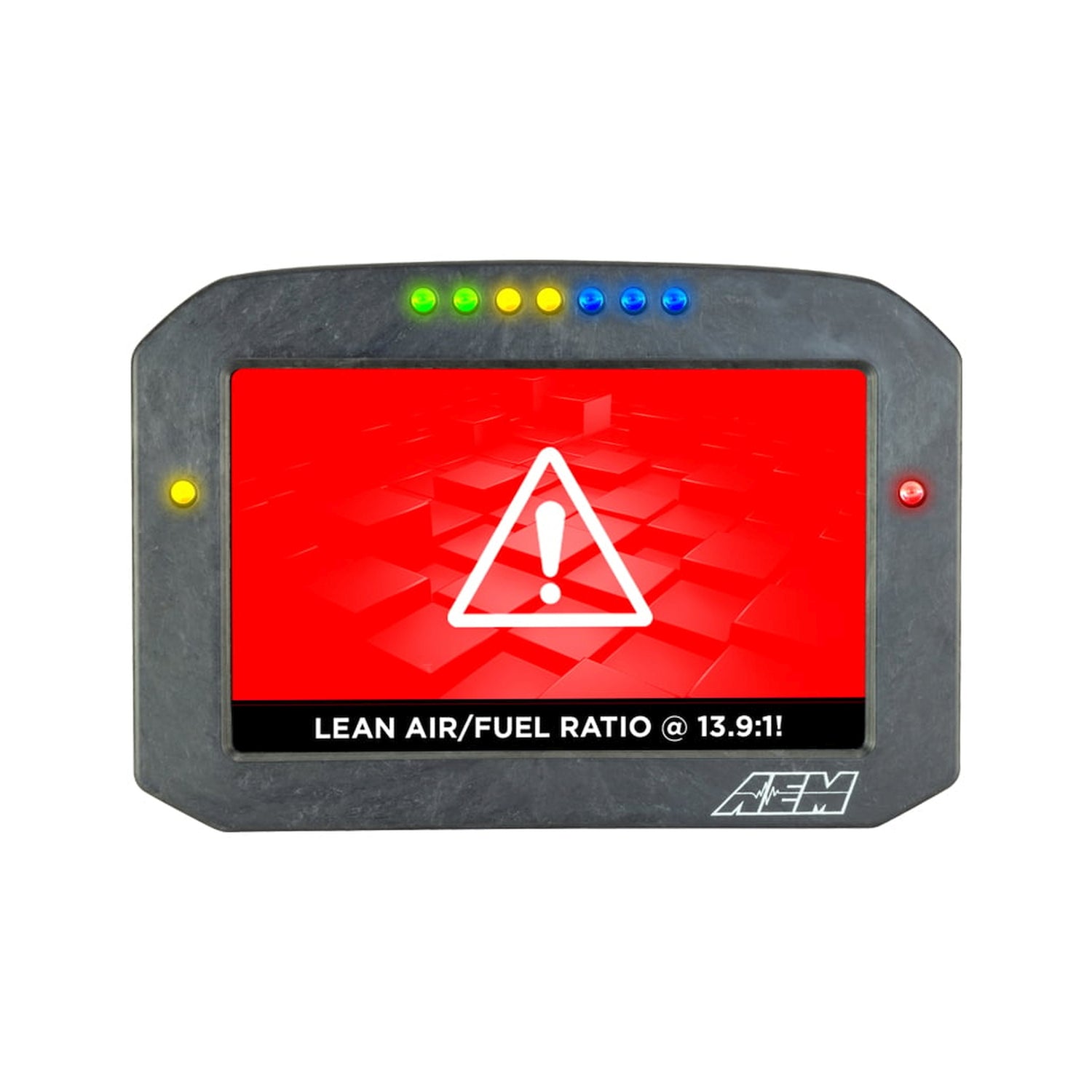

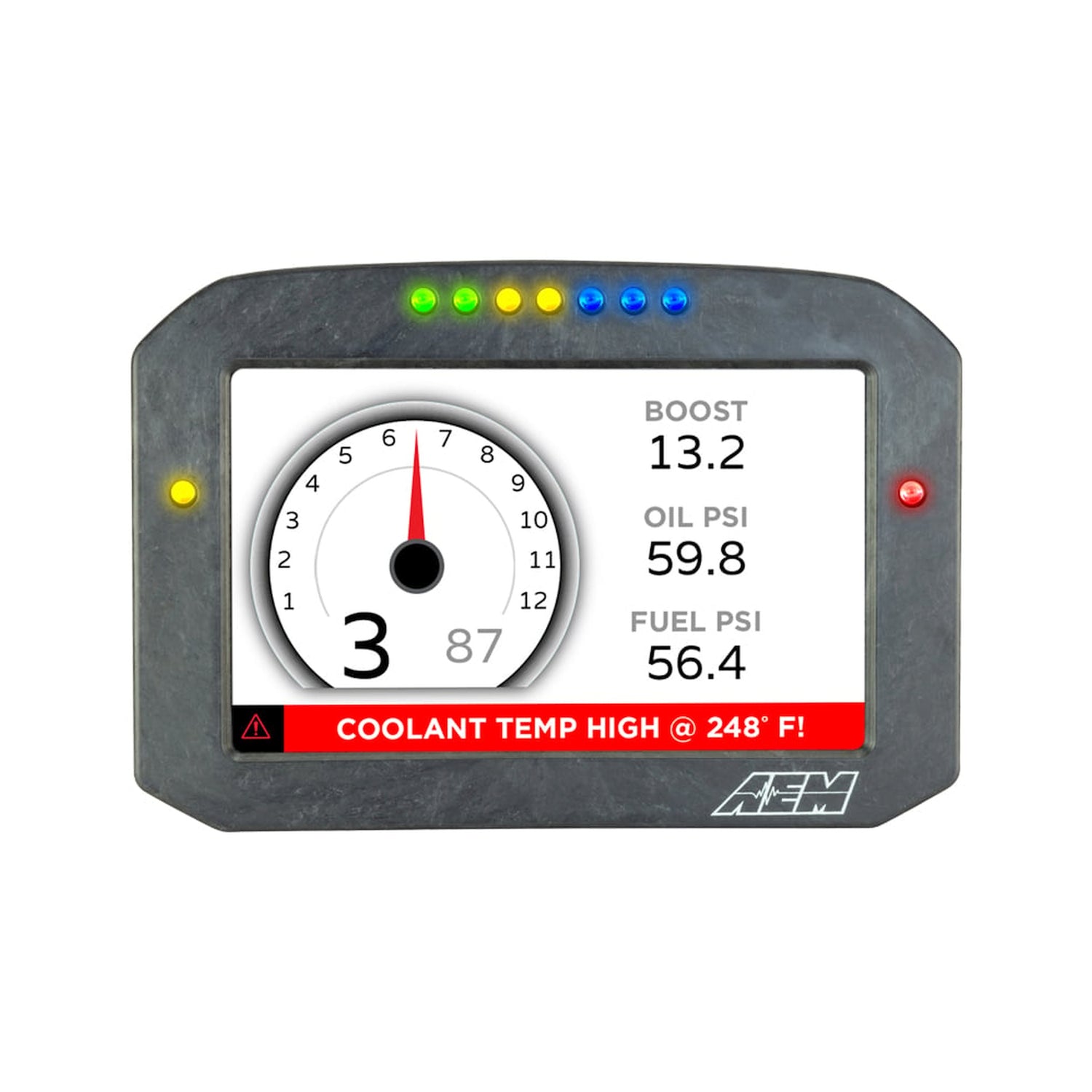

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• IP66 water resistance - open cockpit safe
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
• Free DashDesign Graphics Editor software
