AEM Electronics | SKU:
30-2010
AEM Electronics AEM Air Temp Sensor Kit - 30-2010
-20C to 150C / -4F to 302F - 3/8" NPT - Connector Kit and Pins
Regular price
$149.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
AEM Electronics AEM Air Temp Sensor Kit - 30-2010
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
-20C to 150C / -4F to 302F - 3/8" NPT - Connector Kit and Pins
Part Number: 30-2010

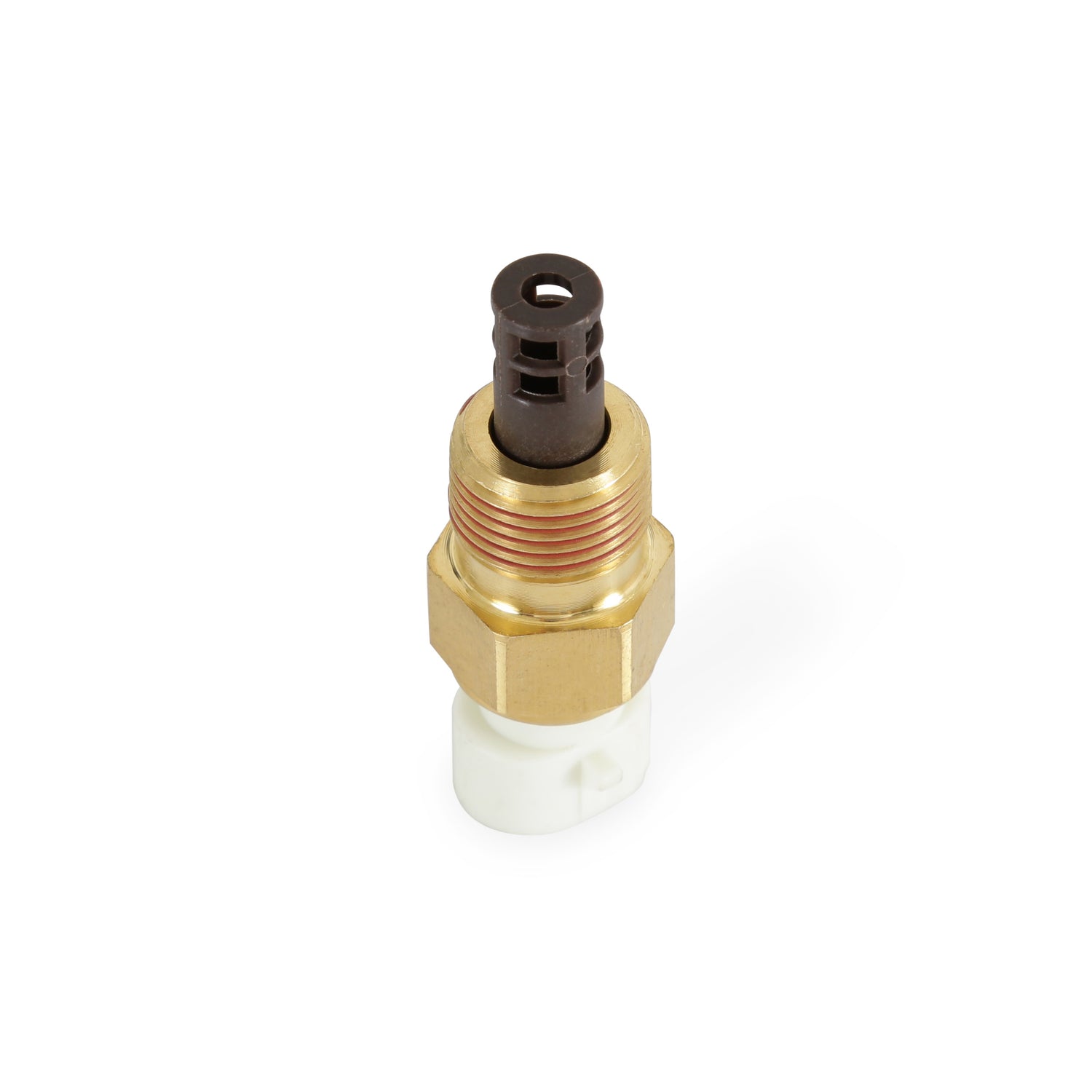

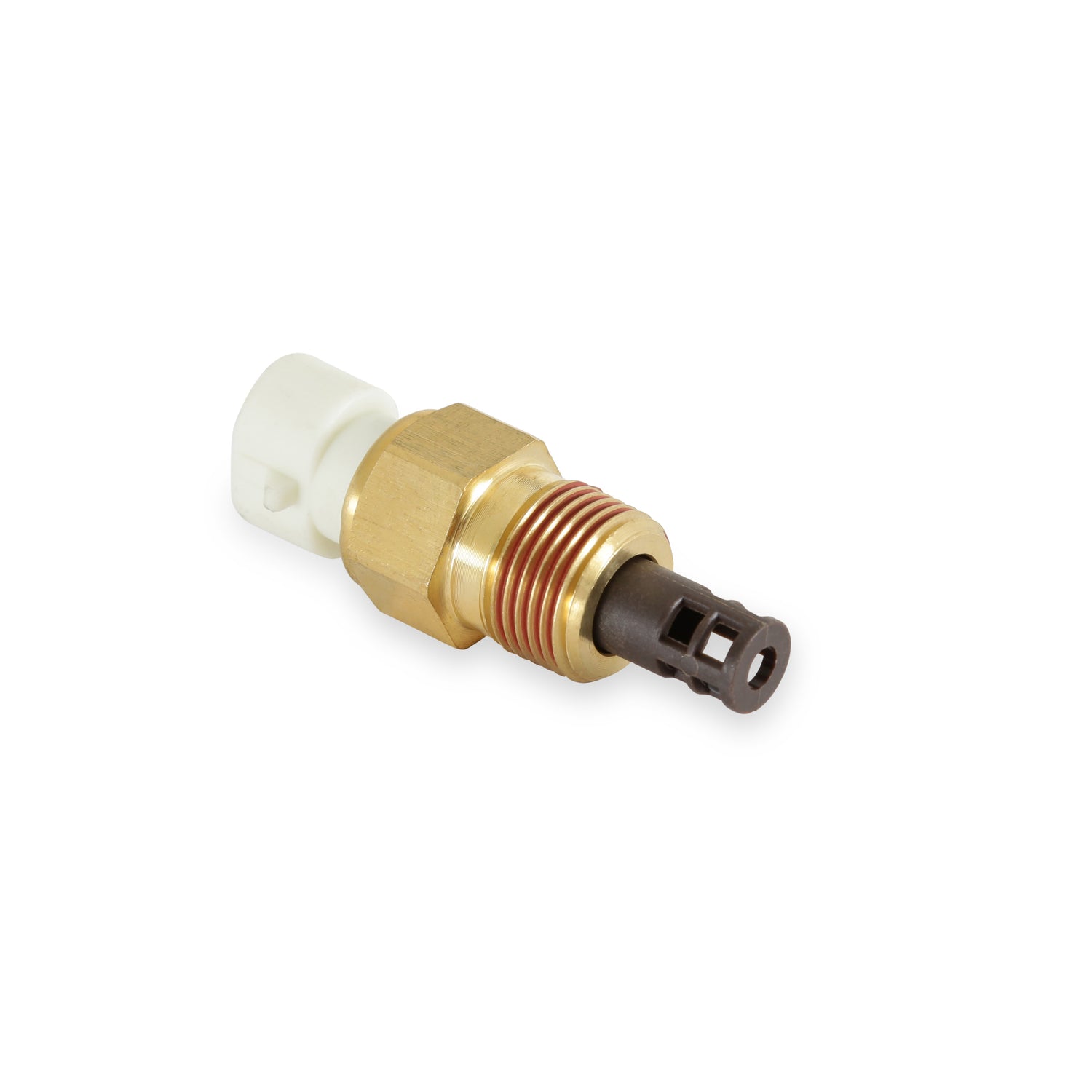

AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

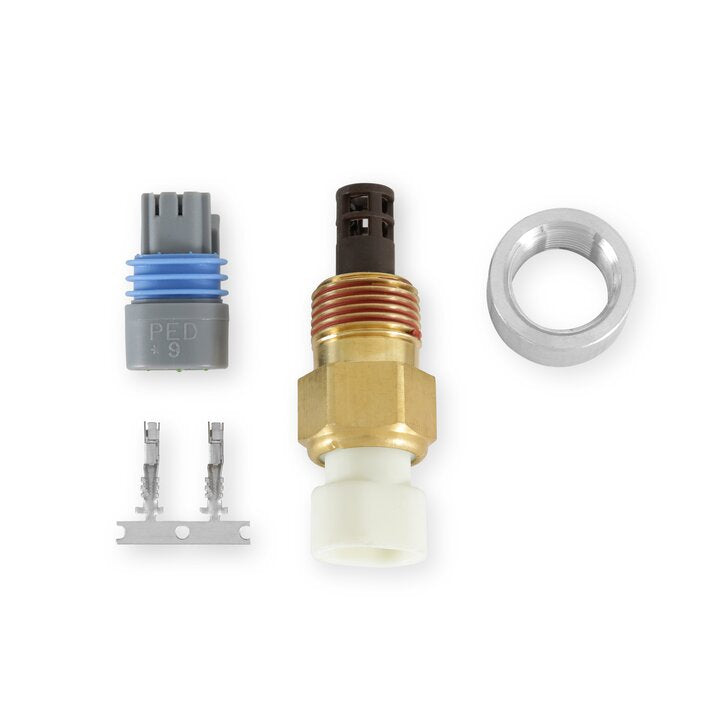

Air Temp Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins
30-2010 - Air Temp Sensor Kit
Accuracy: < 1.5C / 2.7F
Operating Temp: -40C to 135C / -40F to 275F
Resistive Range (?): See Table
Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 3/8" NPT
Hex Size: 3/4"
Installation Torque: 20Nm / 15 ft-lbs
Weight: 33.3g
Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

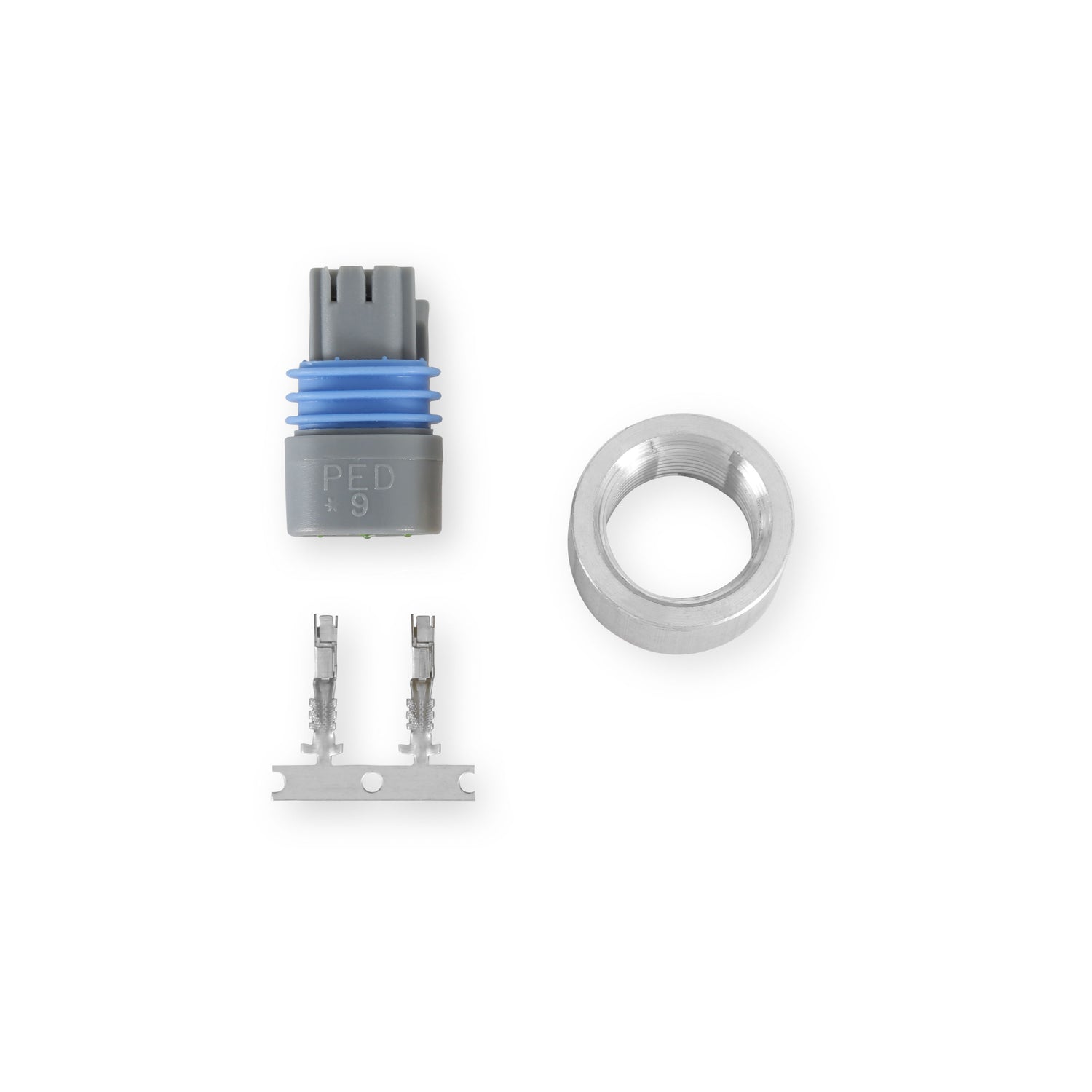

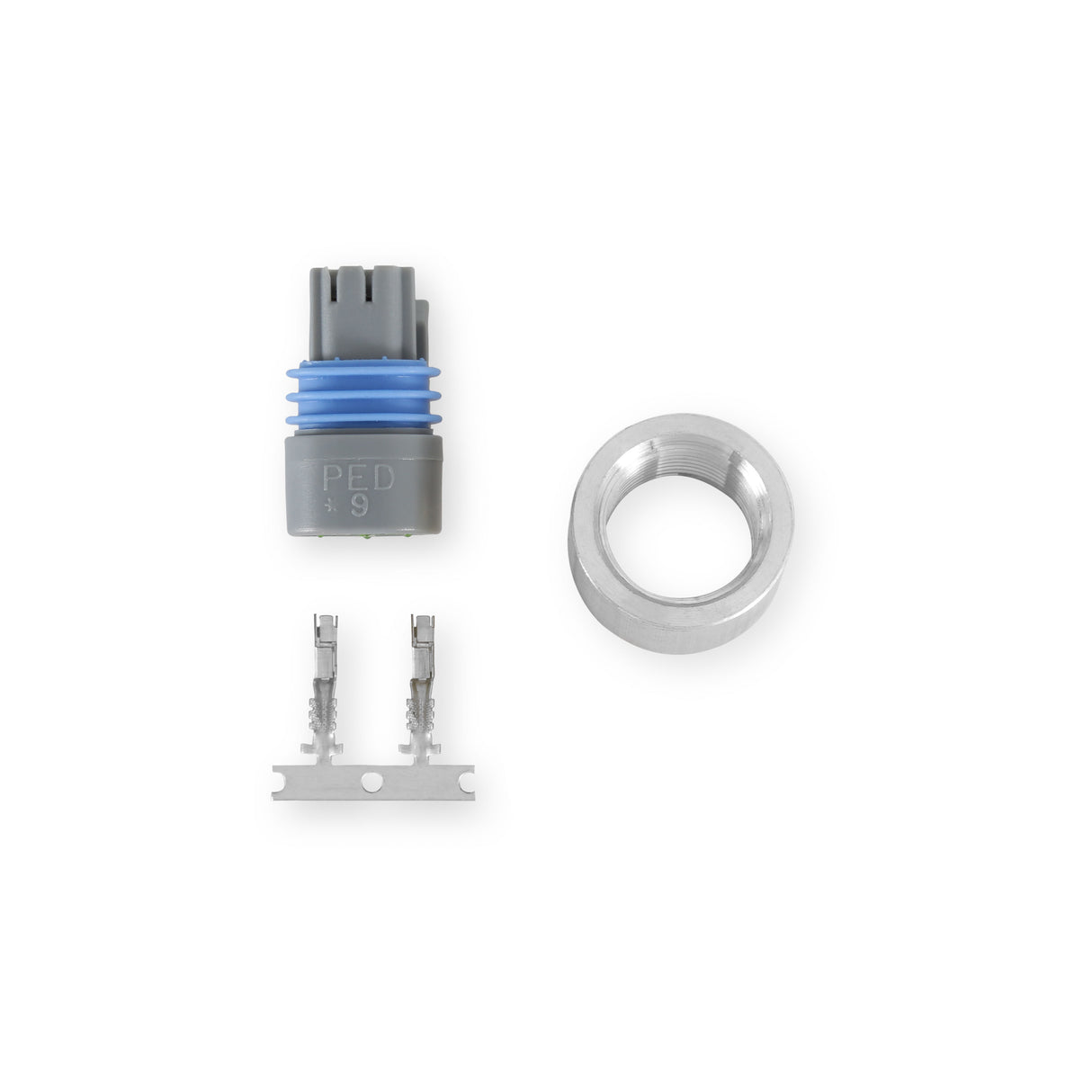

Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
Features and Benefits
• Senses the air temperature on the inlet side of the engine
• Weatherproof connector
• Connector and pins included
• Temp scale of -20C to 150C / -4F to 302F
Part Number: 30-2010
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
Air Temp Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins
30-2010 - Air Temp Sensor Kit
Accuracy: < 1.5C / 2.7F
Operating Temp: -40C to 135C / -40F to 275F
Resistive Range (?): See Table
Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 3/8" NPT
Hex Size: 3/4"
Installation Torque: 20Nm / 15 ft-lbs
Weight: 33.3g
Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals
Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
Features and Benefits
• Senses the air temperature on the inlet side of the engine
• Weatherproof connector
• Connector and pins included
• Temp scale of -20C to 150C / -4F to 302F
Specifications
Specifications
-
Specifications
Brand AEM Category Air and Fuel Delivery Emission Code 5 Grade Type Professional part type Air Charge Temperature Sensor Kit Product Type Air Temp Sensor Sub Category Sensors Warning California Proposition 65 Warranty Manufacturer's 1 Year Warranty -
