AEM Electronics | SKU:
30-2224

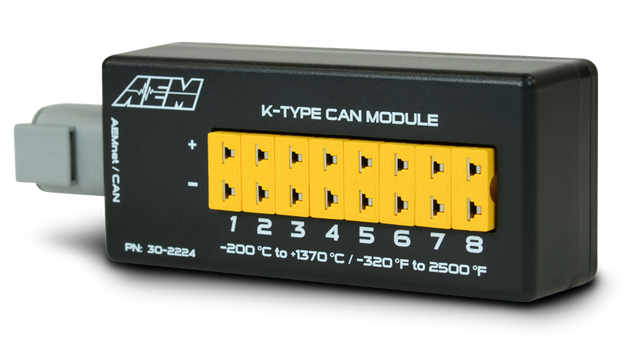

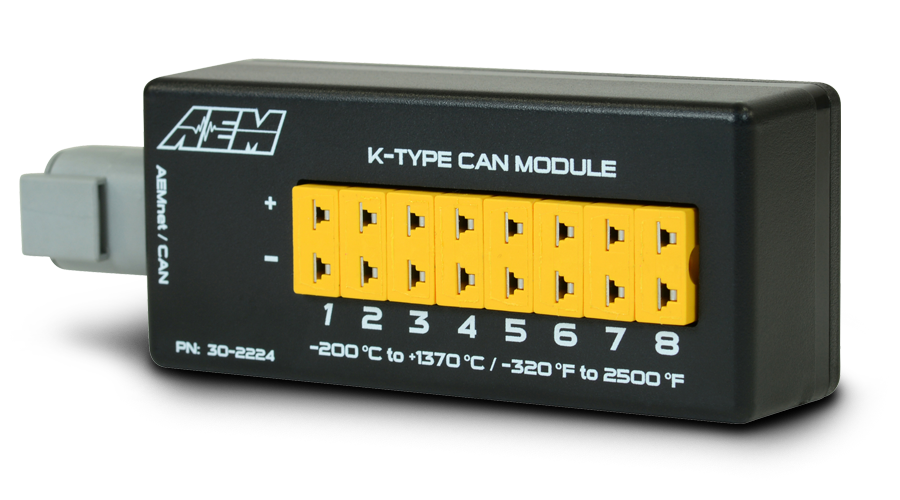

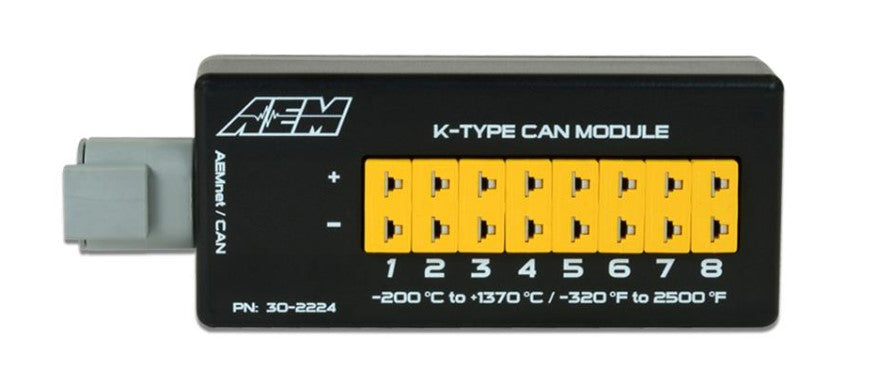

AEM 8 Channel CAN EGT Module - 30-2224
K-Type EGT Sensors
Regular price
$940.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
AEM 8 Channel CAN EGT Module - 30-2224
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
K-Type EGT Sensors
Part Number: 30-2224
AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module
Features and Benefits

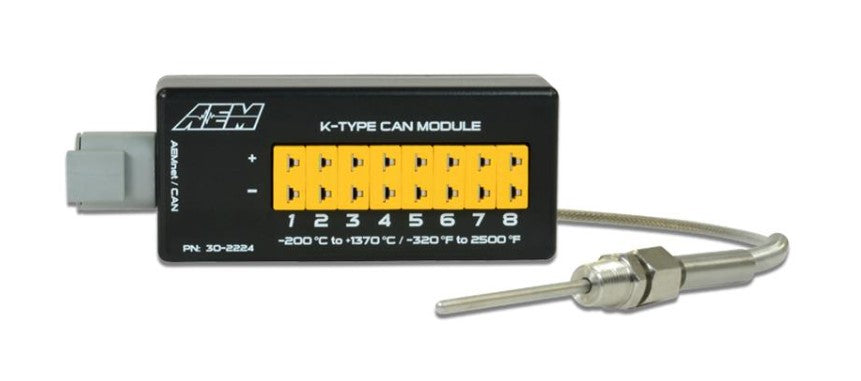

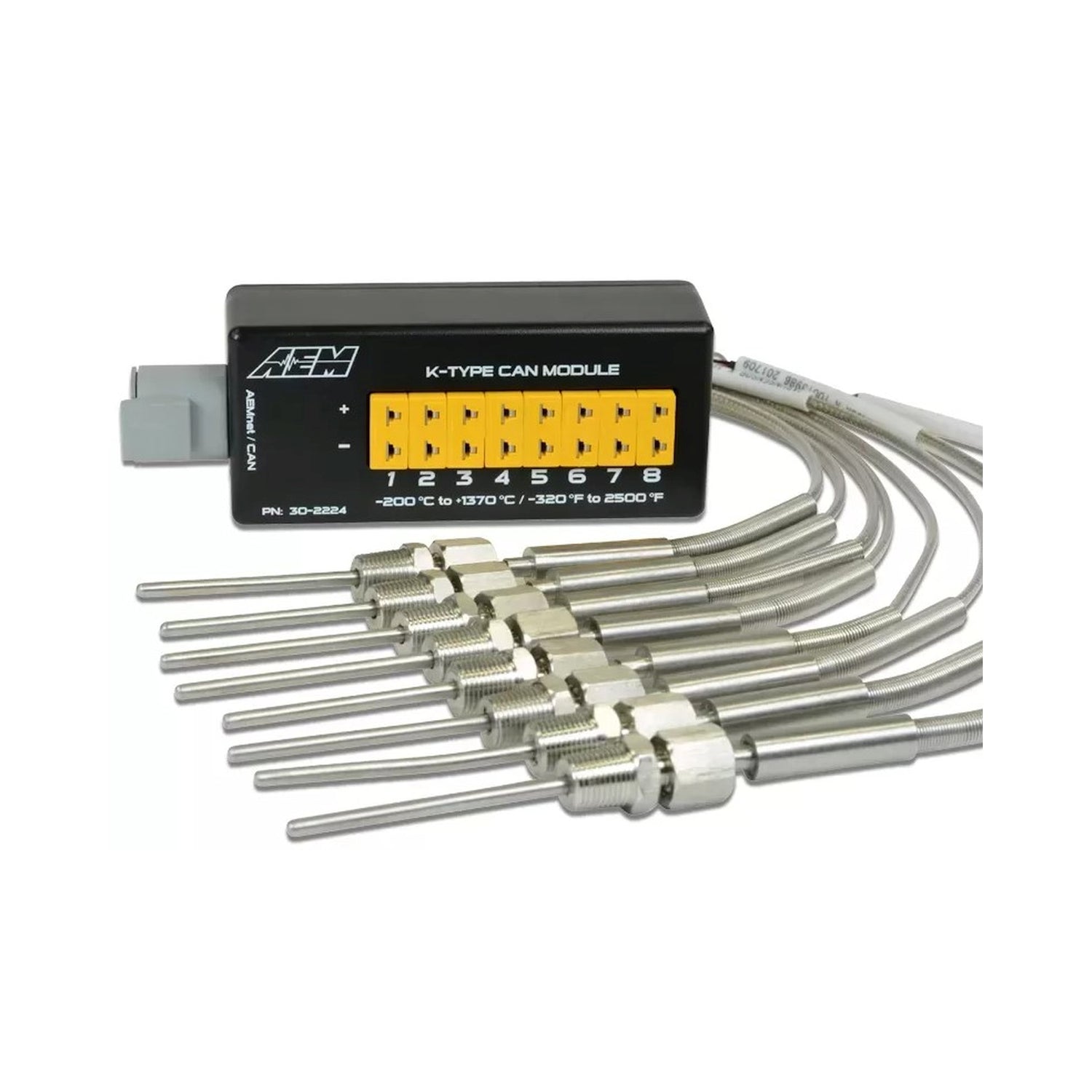

• Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
• Uses common miniature thermocouple sockets
• Daisy-chain two modules together for up to 16 temp inputs through a single plug!

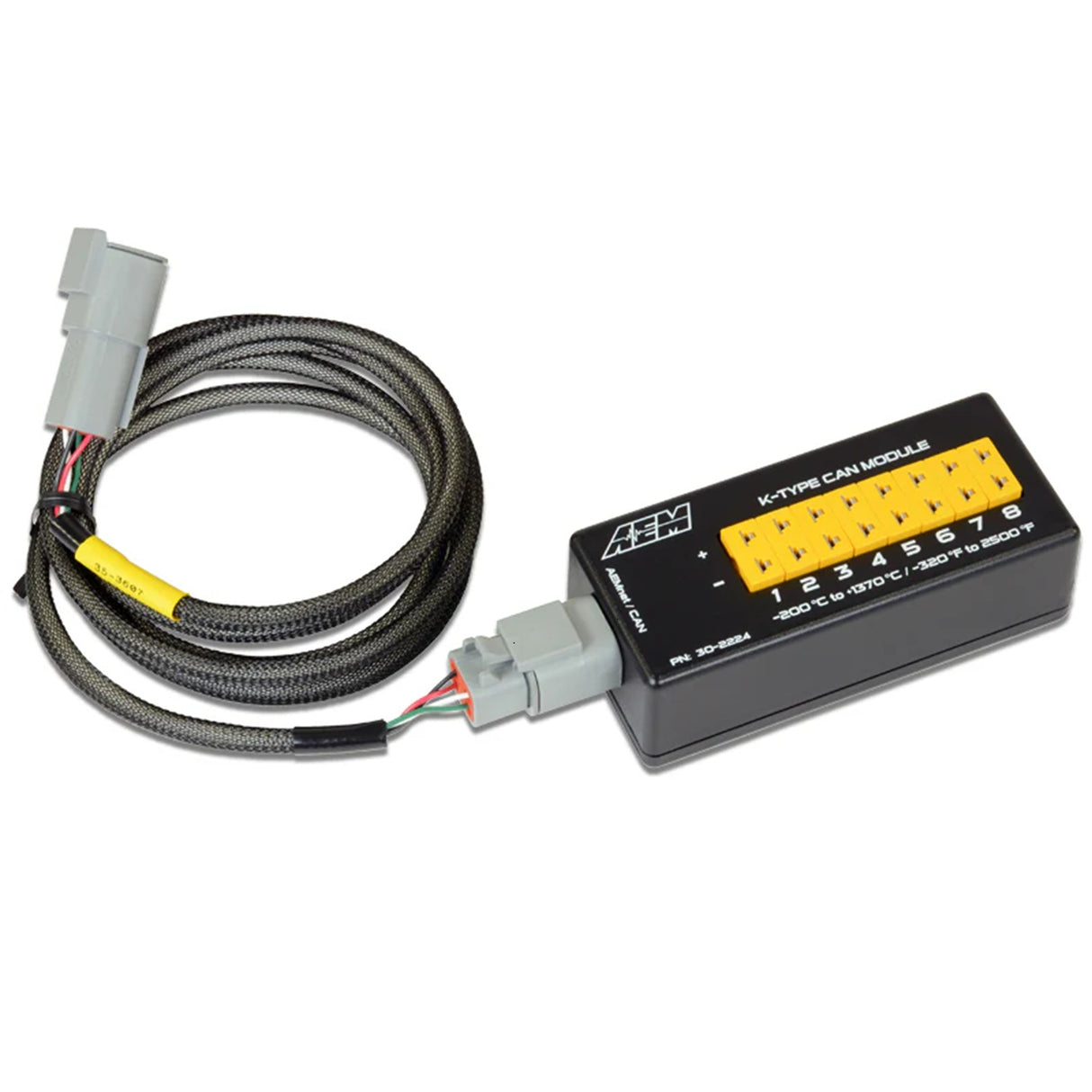

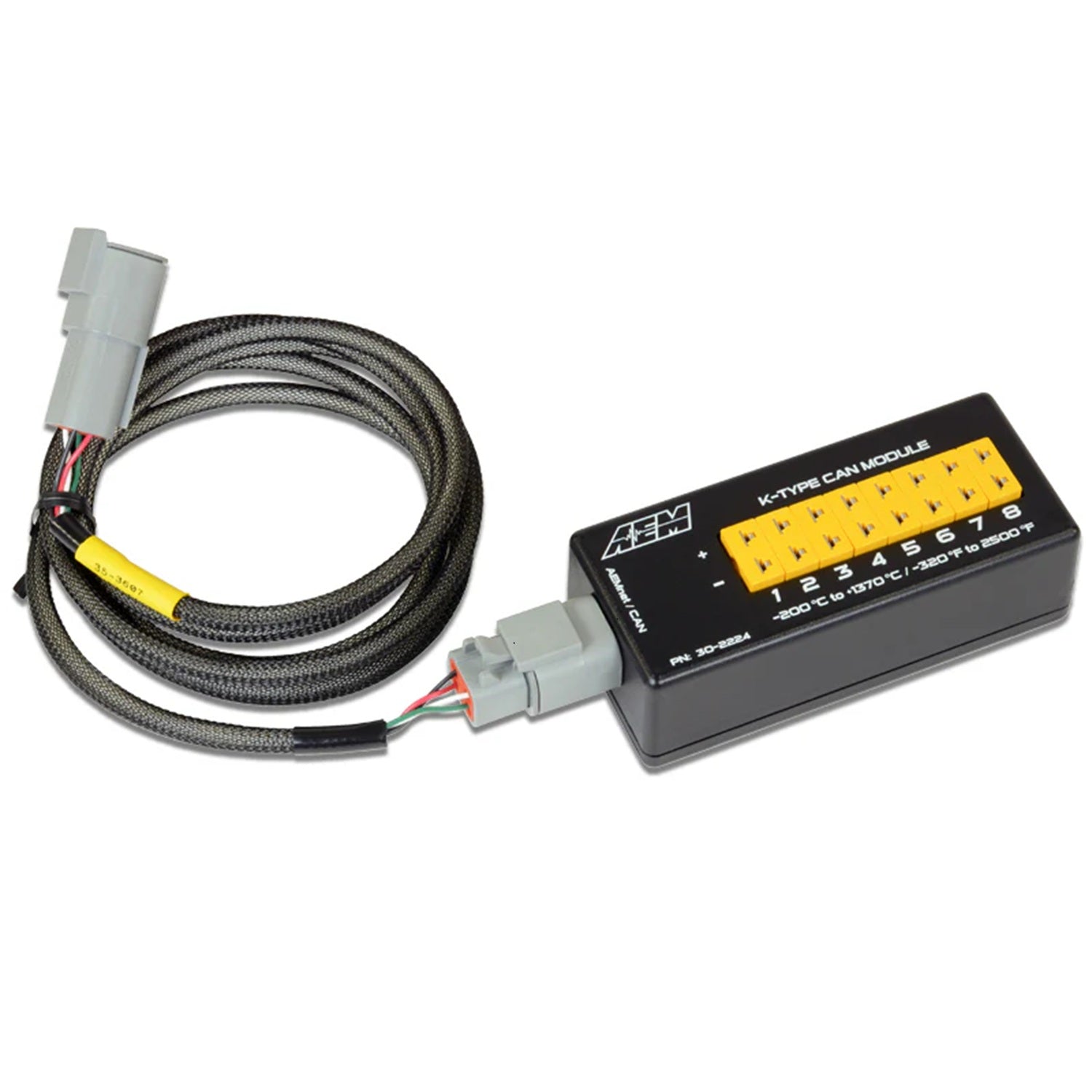

• Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
• Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)
• Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
• Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
• Temperature resolution 0.1 degC (0.18 degF)
• Integrated open circuit/fault detection

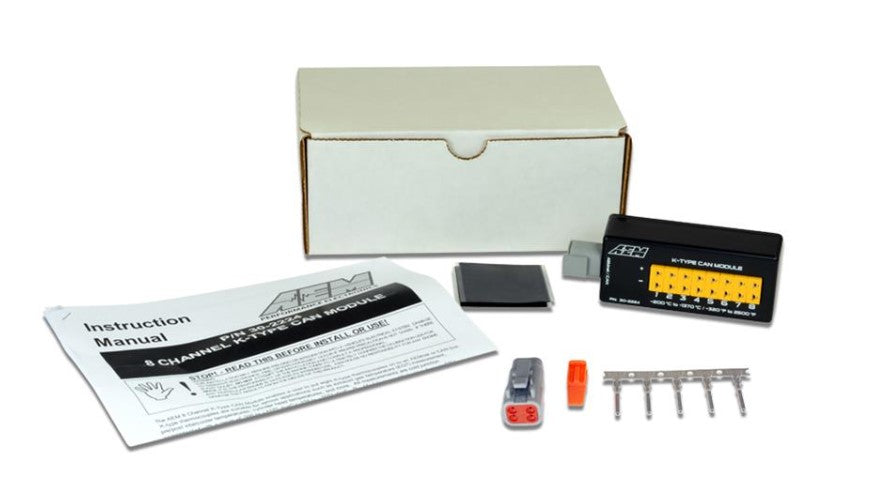

• Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting
Part Number: 30-2224
AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module
Features and Benefits
• Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
• Uses common miniature thermocouple sockets
• Daisy-chain two modules together for up to 16 temp inputs through a single plug!
• Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
• Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)
• Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
• Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
• Temperature resolution 0.1 degC (0.18 degF)
• Integrated open circuit/fault detection
• Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting
Specifications
Specifications
-
Specifications
Brand AEM Category Gauges and Gauge Accessories Connector Gender Male Female Connector Quantity 1 Emission Code 5 Grade Type Professional part type Pyrometer Module Product Type Harness Sub Category Control Modules Terminal Gender Male Female Terminal Type Blade Warning California Proposition 65 Warranty Manufacturer's 1 Year Warranty -
Instructions
