AEM Electronics | SKU:
30-2056
AEM 12 Position Trim Pot - 30-2056
Mounting: 3/8" Hole - Degree Rotation: 330
Regular price
$86.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
AEM 12 Position Trim Pot - 30-2056 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Mounting: 3/8" Hole - Degree Rotation: 330
Part Number: 30-2056

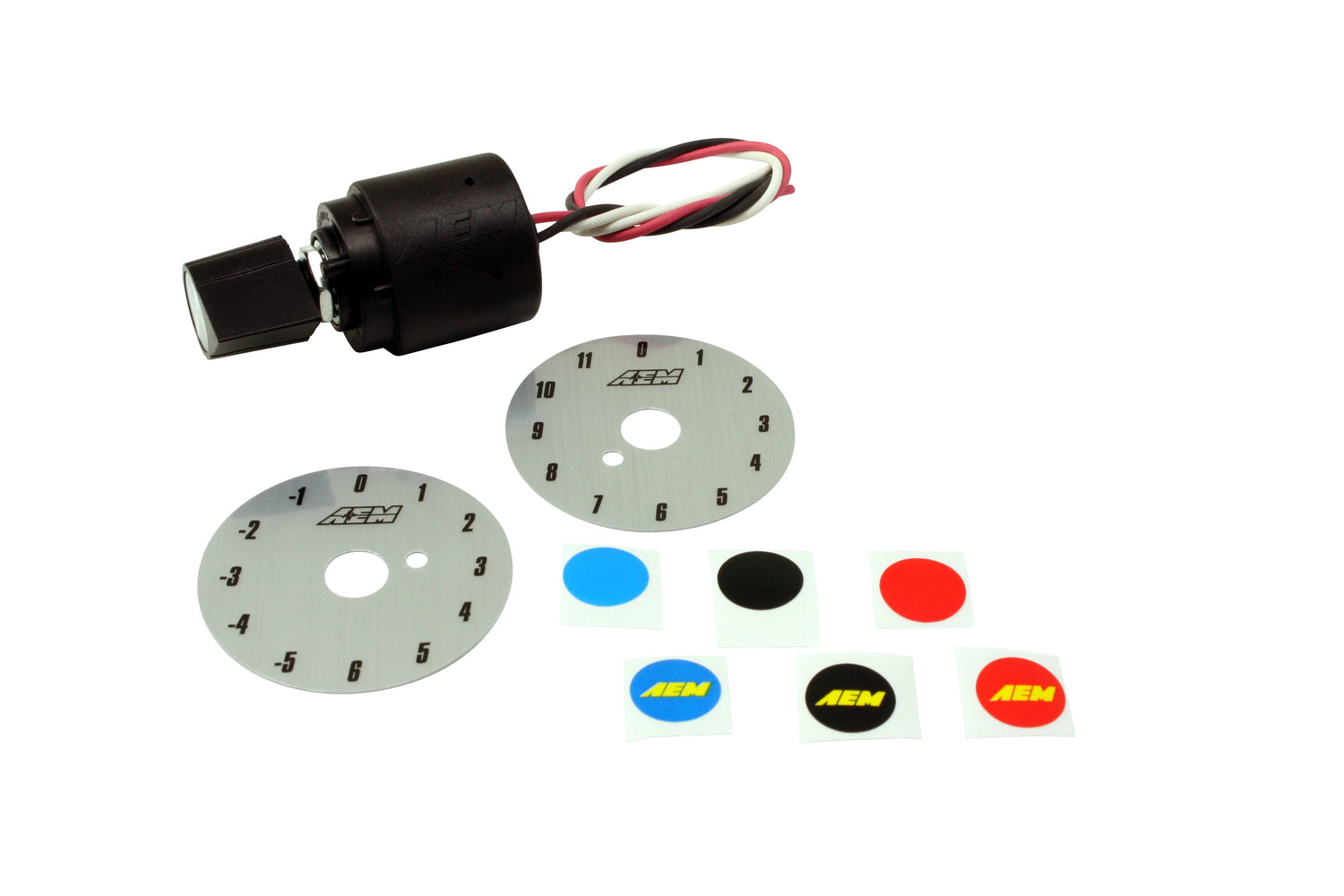

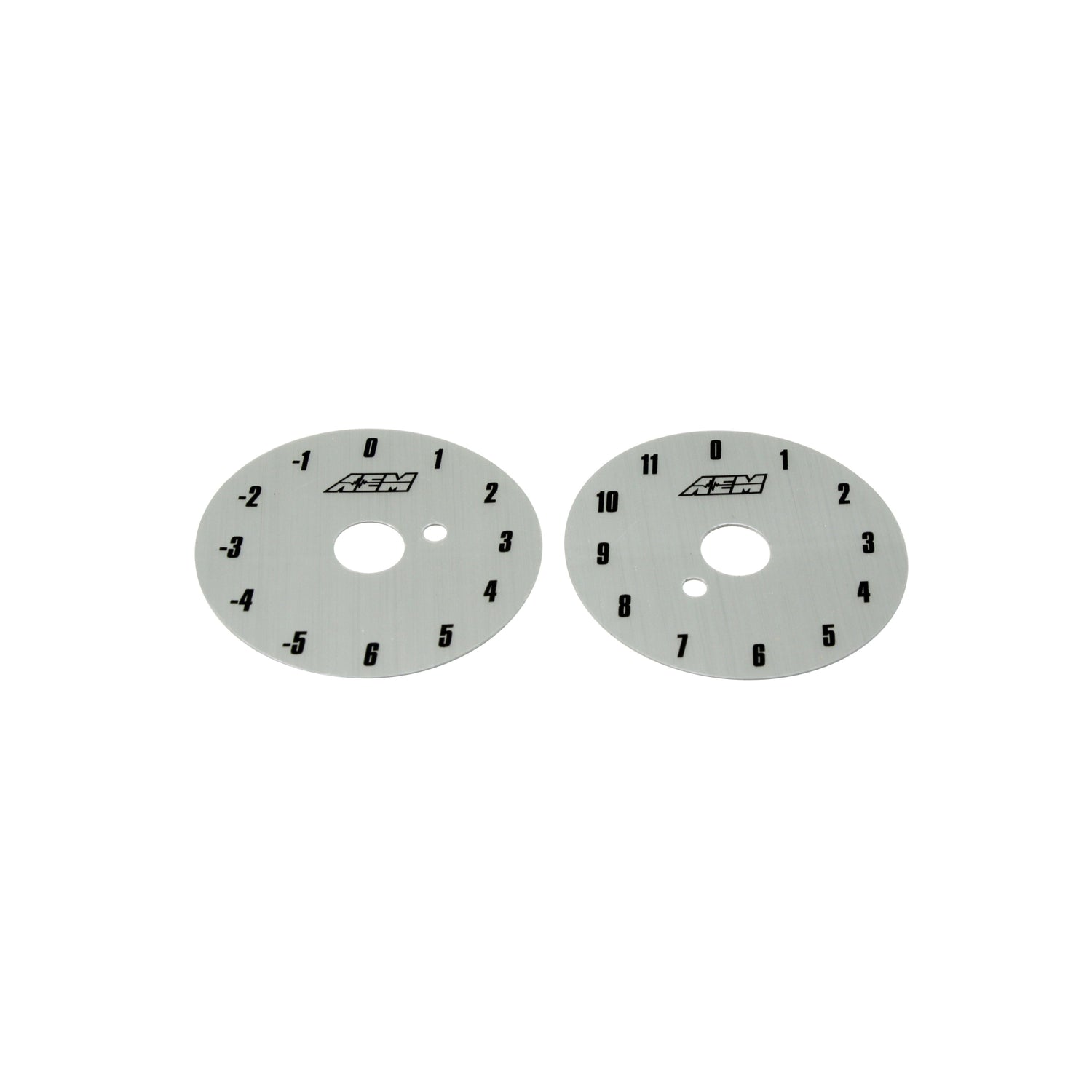

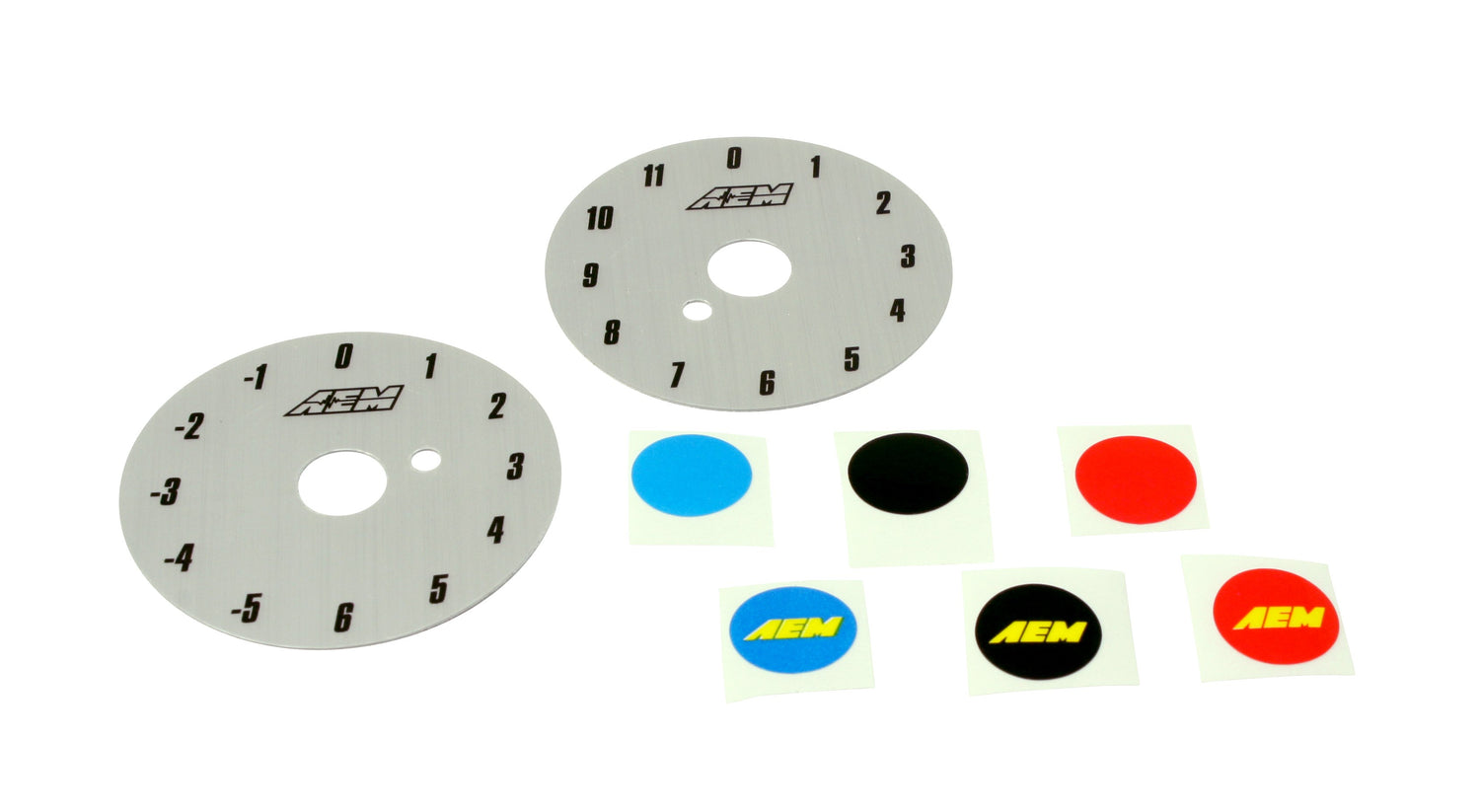

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors Trim potentiometer can be used with virtually any engine management system Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob Adjusts a number of trims, including ignition timing, fuel, boost, etc.
Features and Benefits
• 12 Position Trim Pot Performance Specifications
• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Knob Set Screw: 1/16" Allen
• Supply Current: 5 Vdc

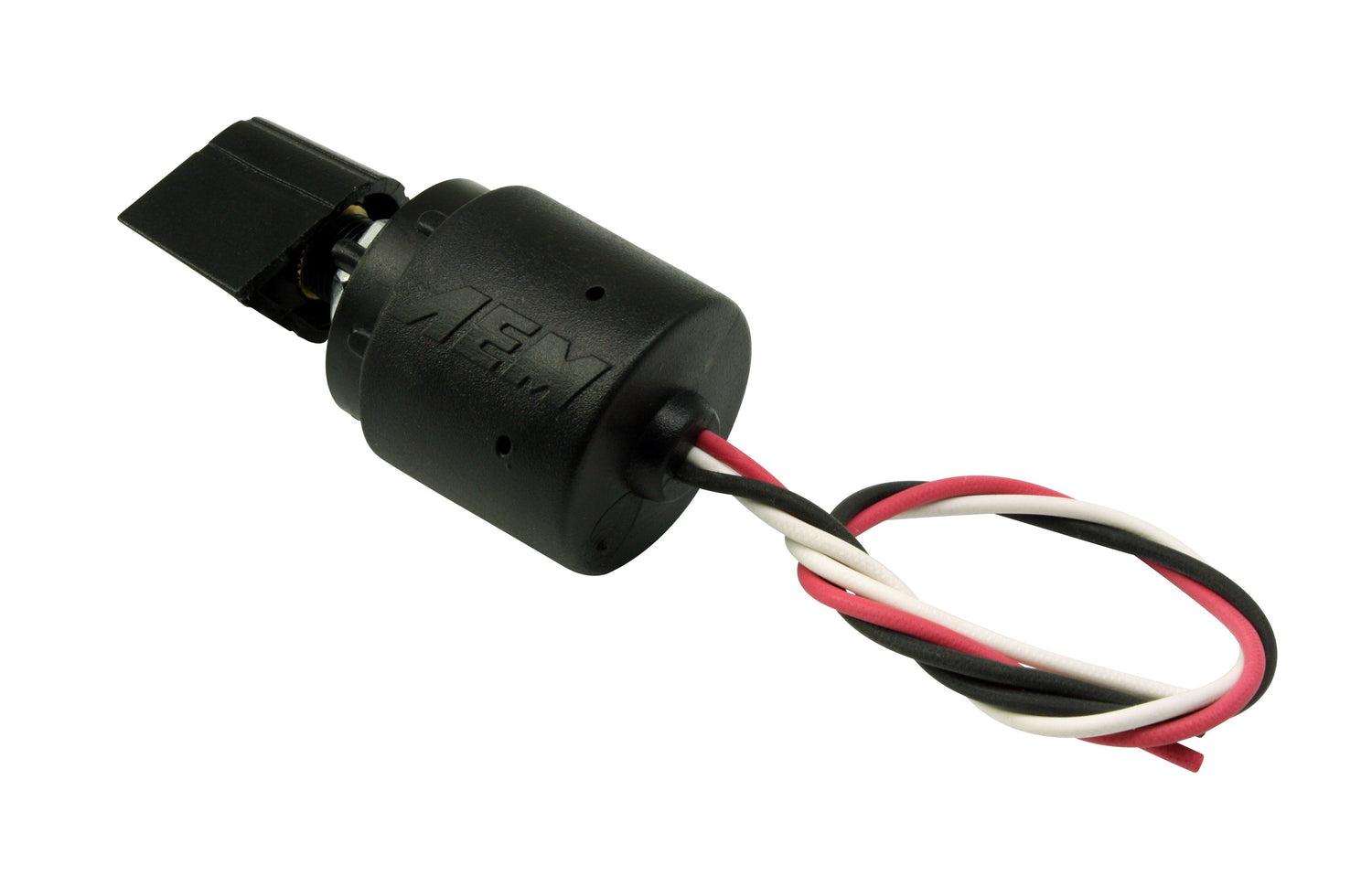

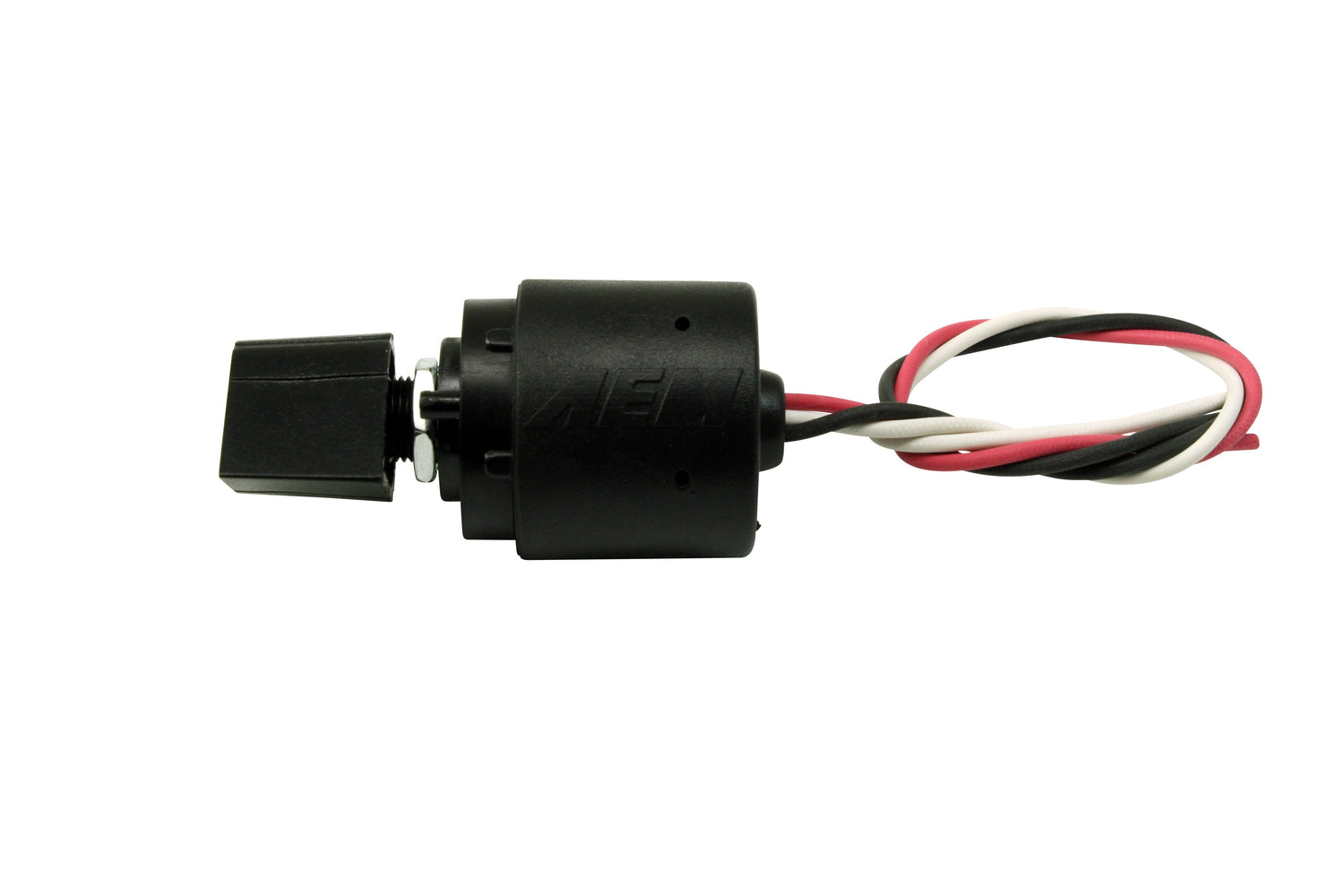

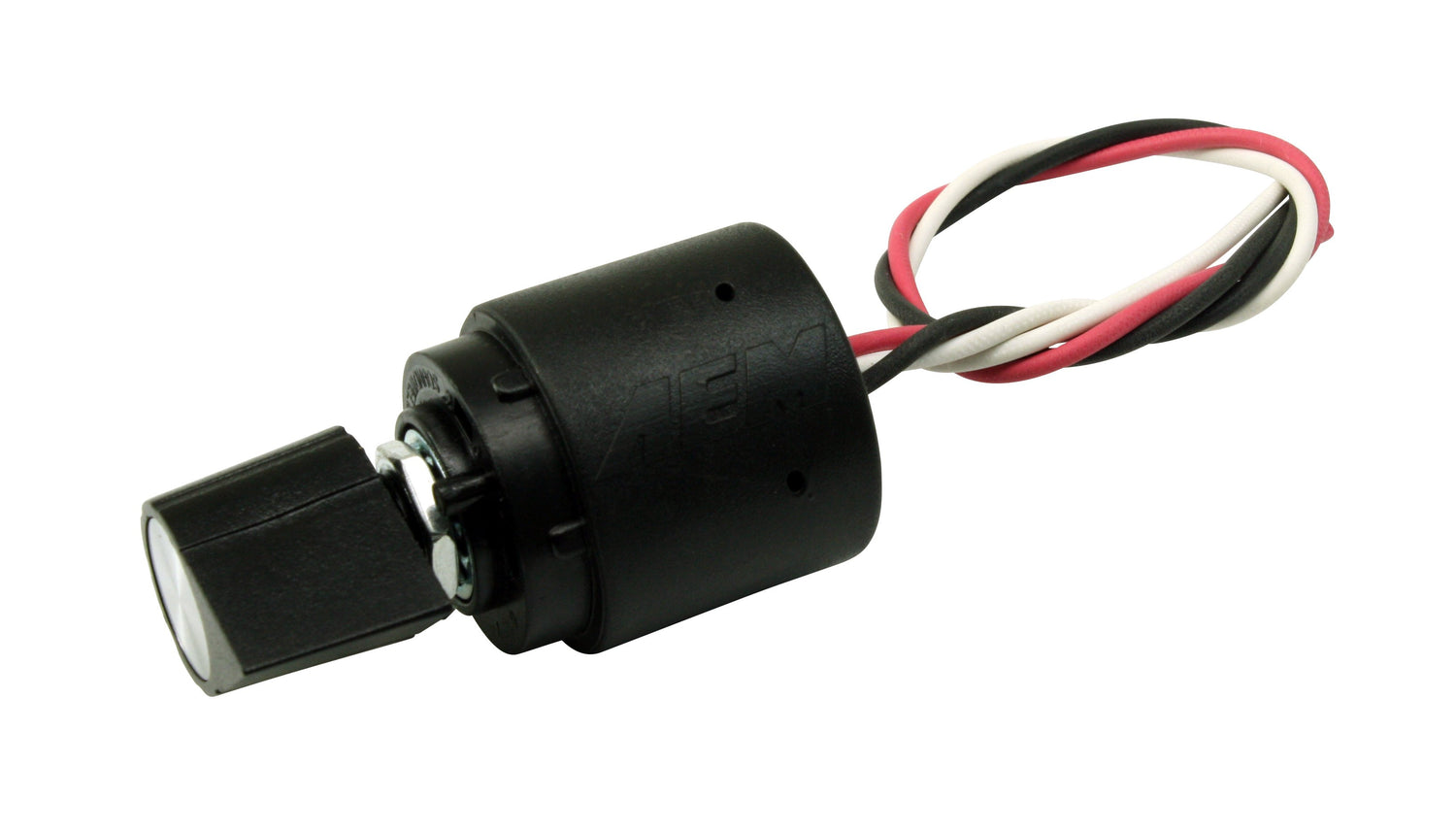

• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
Part Number: 30-2056
The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors Trim potentiometer can be used with virtually any engine management system Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob Adjusts a number of trims, including ignition timing, fuel, boost, etc.
Features and Benefits
• 12 Position Trim Pot Performance Specifications
• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Knob Set Screw: 1/16" Allen
• Supply Current: 5 Vdc
• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
Specifications
Specifications
-
Specifications
Brand AEM Category Air and Fuel Delivery Connector Quantity 2 Emission Code 5 Indicator Markings Yes part type Accessory Switch Product Type Trim Pot Sub Category Switches, Solenoids and Actuators Warning California Proposition 65 Warranty Manufacturer's 1 Year Warranty -
