ACCEL | SKU:
140018

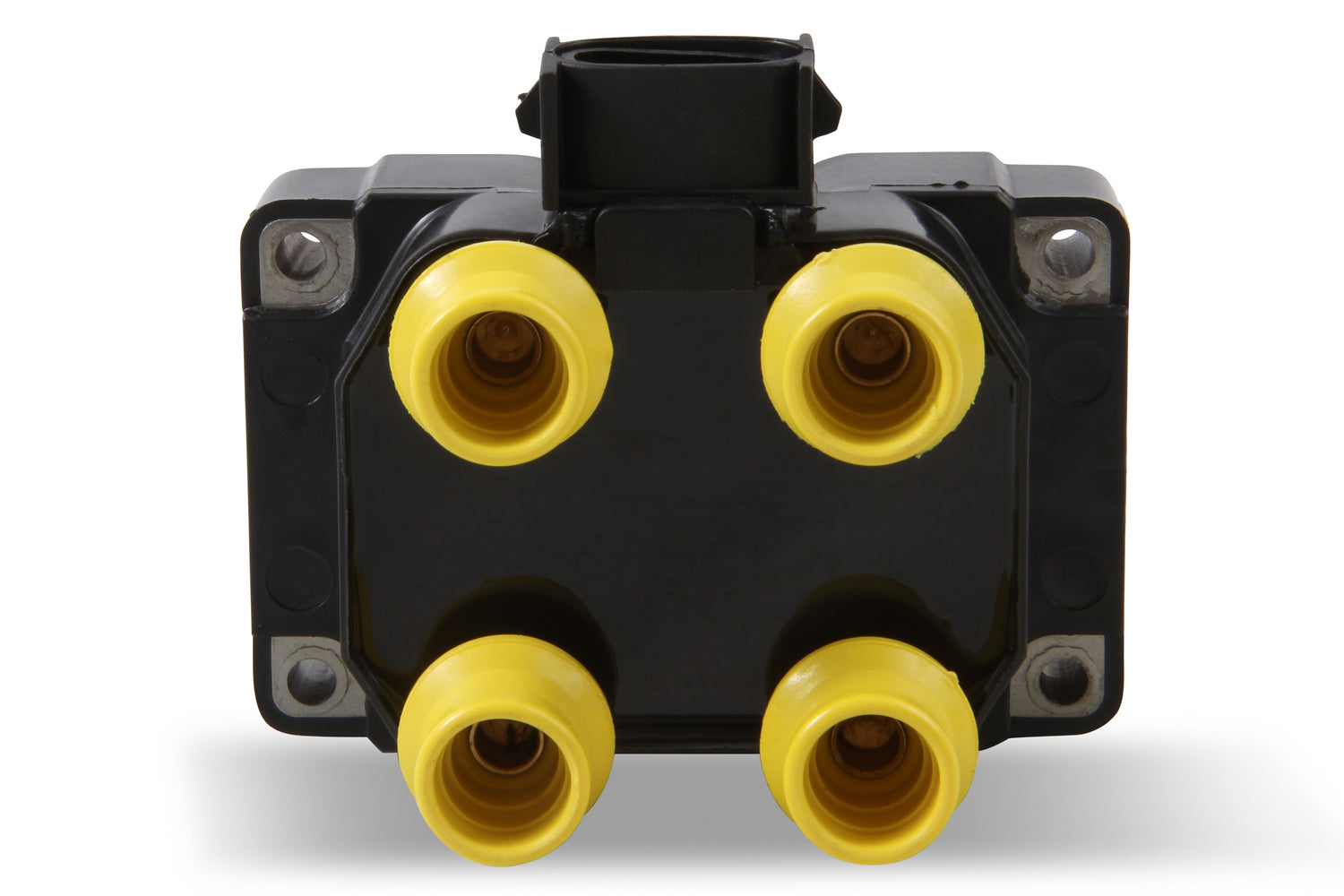

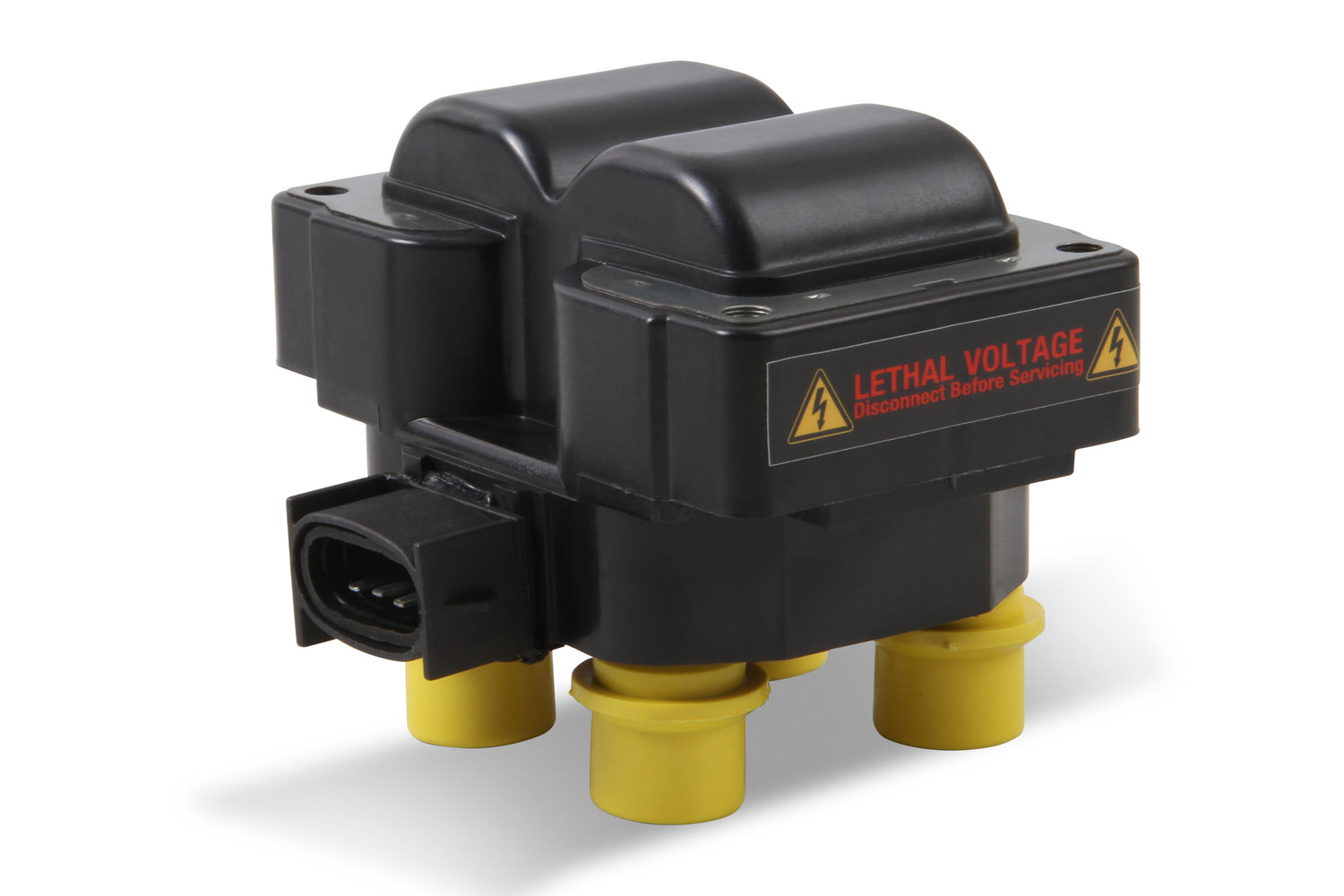

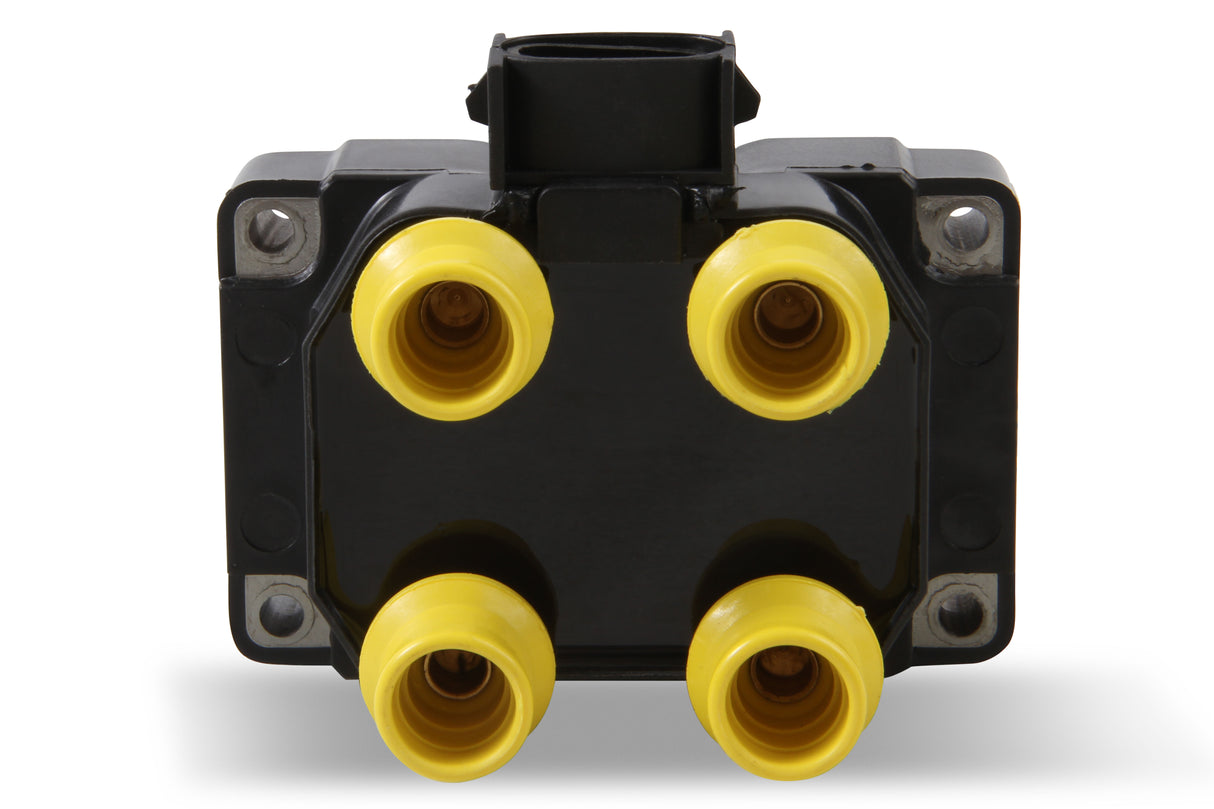

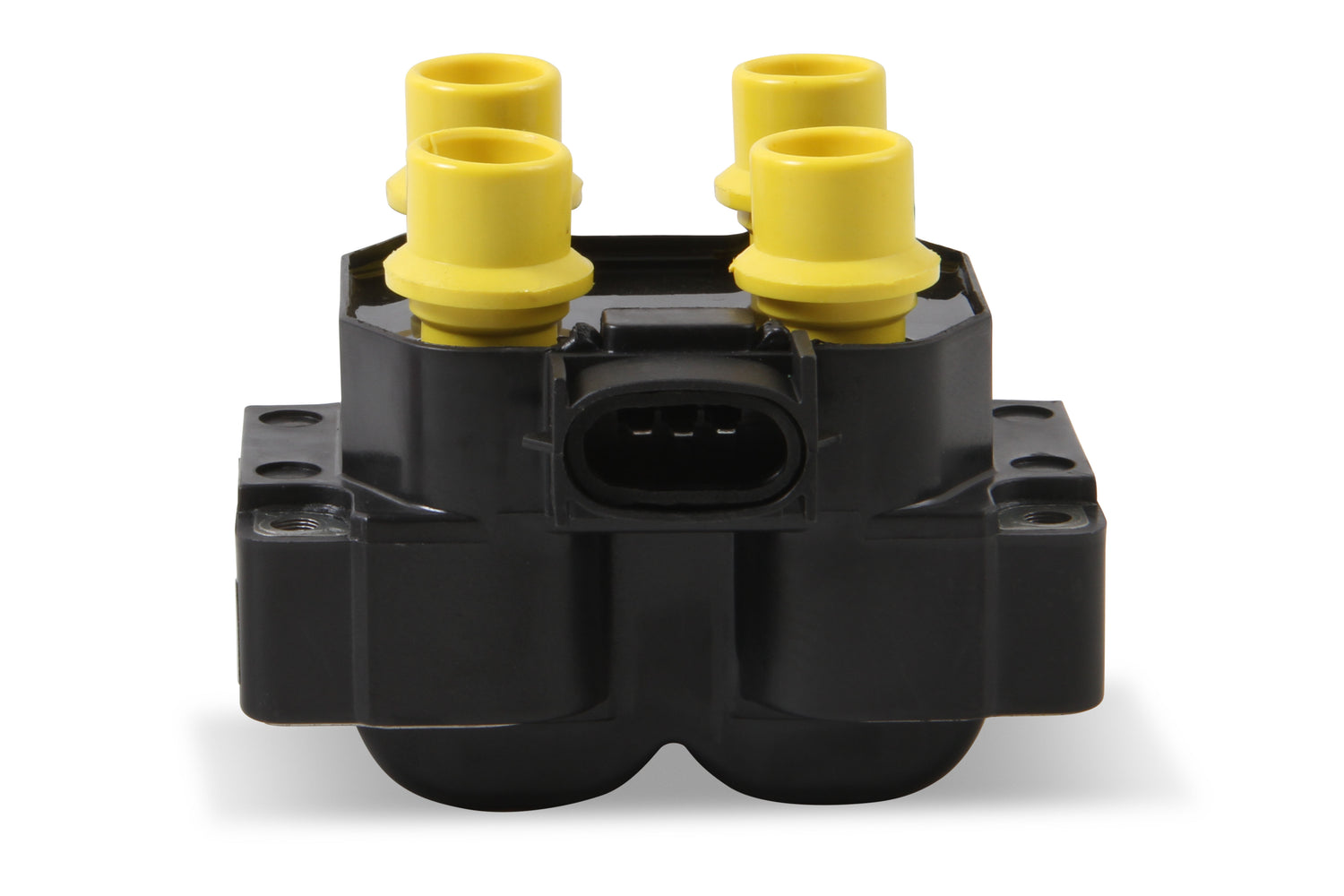

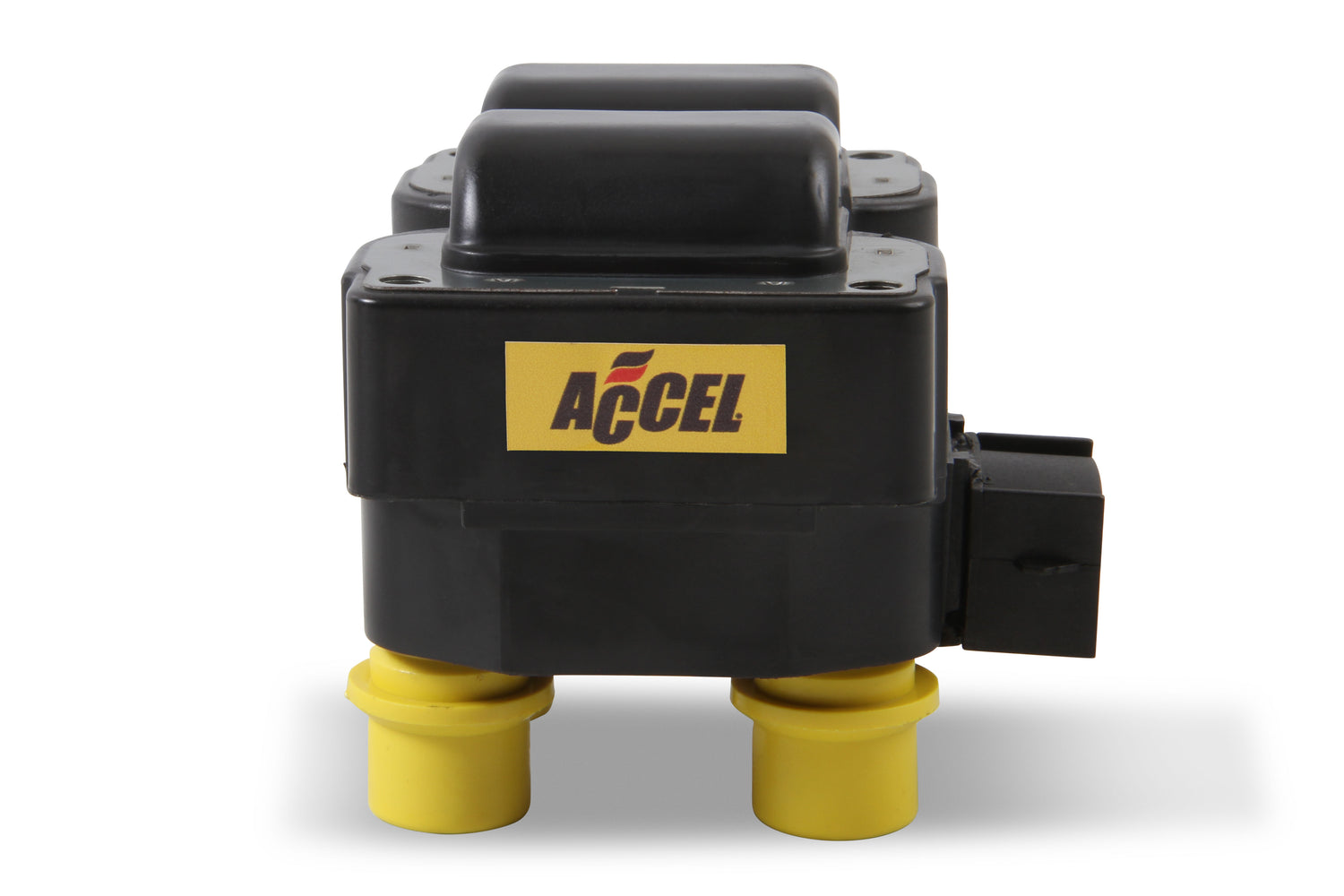

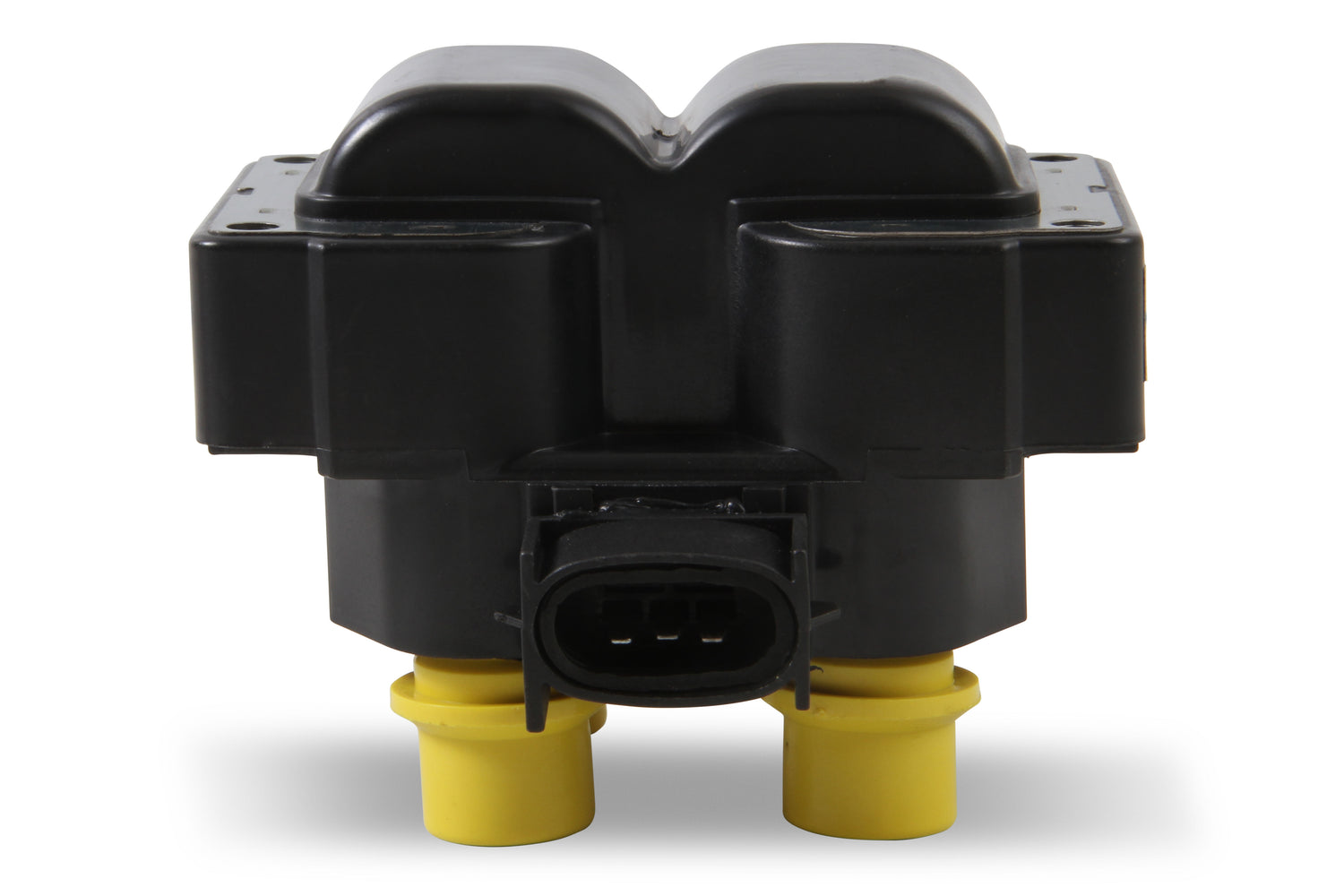

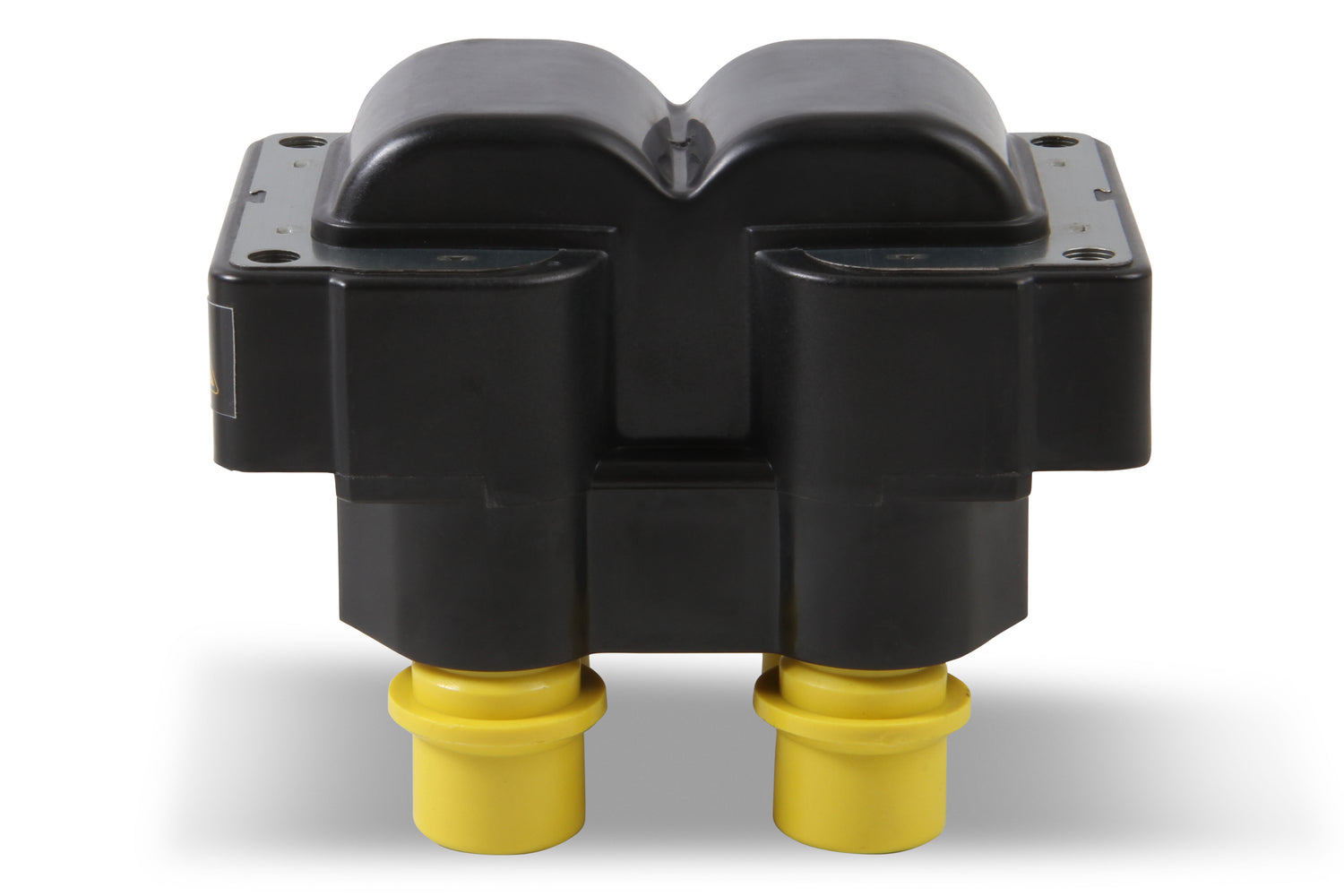

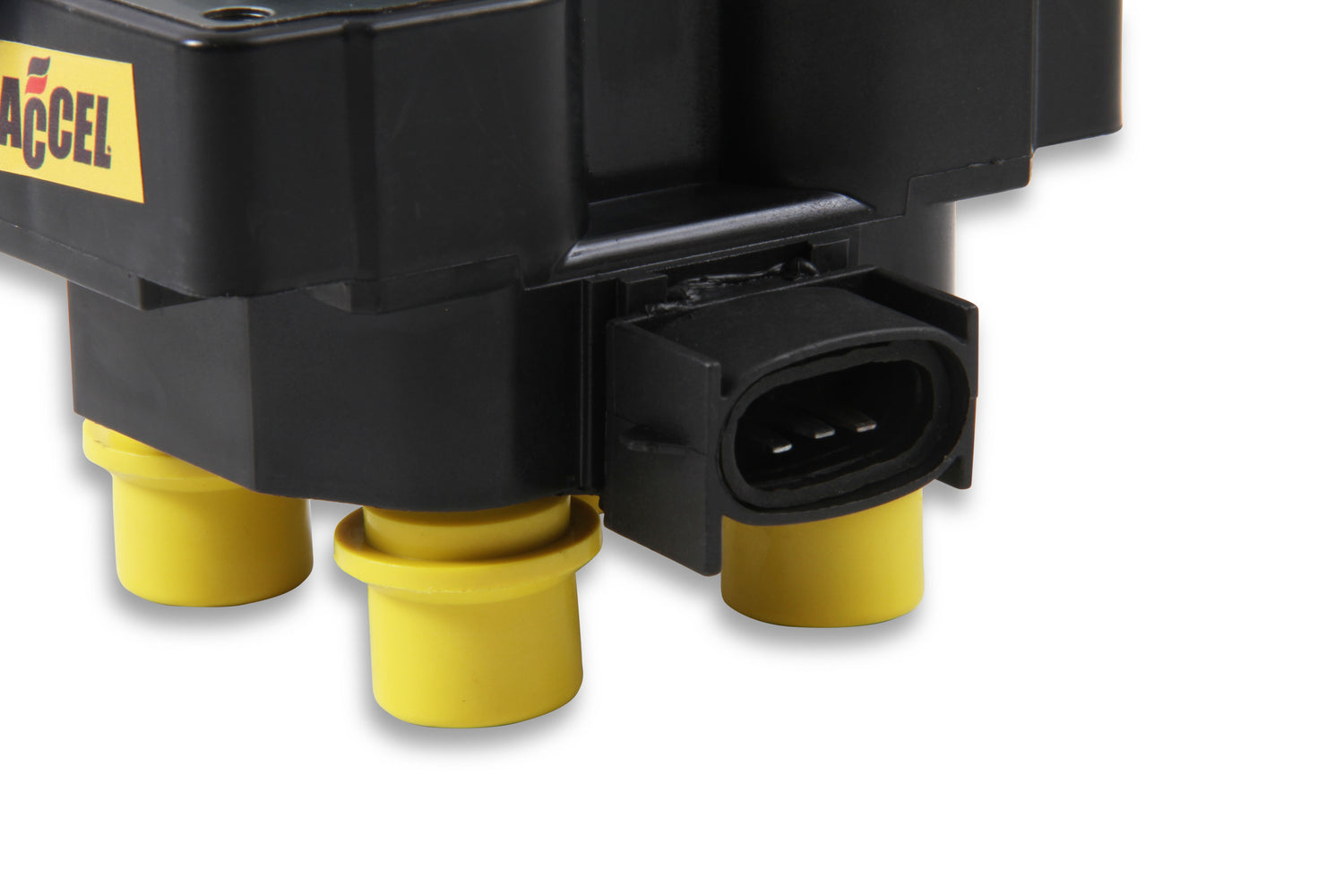

ACCEL Ignition Coil - SuperCoil - Ford 4-Tower EDIS with horizontal plug - 140018
ACCEL SuperCoil 4-tower EDIS ignition coil for Ford 1988-2003 has a maximum output of 42,000.
Regular price
$261.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
ACCEL Ignition Coil - SuperCoil - Ford 4-Tower EDIS with horizontal plug - 140018 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
ACCEL SuperCoil 4-tower EDIS ignition coil for Ford 1988-2003 has a maximum output of 42,000.
Part Number: 140018
Engineered to be the only true performance Ford 4-tower style EDIS coil. Advanced bobbin technology, highly specialized silicone magnetic steel core, optimized winding, resistance, and turns ratio result in higher energy and voltage outputs, and longer arc duration. Direct OEM replacement. Must use factory firing order. Compatible with Ford EDIS computer controlled ignition system as well as Crane or MSD capacitive discharged (CD) DIS ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Secondary towers molded in high dielectric strength ACCEL Yellow. Packaged as single unit; 4 cyls require 1 coil pack, ""twin plug"" 4 cyls require 2 coil packs and 8 cyls require 2 coil packs. No tsuitable for some late 1999 applications.
Features and Benefits
• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Fd-487
• MSD 8241
Part Number: 140018
Engineered to be the only true performance Ford 4-tower style EDIS coil. Advanced bobbin technology, highly specialized silicone magnetic steel core, optimized winding, resistance, and turns ratio result in higher energy and voltage outputs, and longer arc duration. Direct OEM replacement. Must use factory firing order. Compatible with Ford EDIS computer controlled ignition system as well as Crane or MSD capacitive discharged (CD) DIS ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Secondary towers molded in high dielectric strength ACCEL Yellow. Packaged as single unit; 4 cyls require 1 coil pack, ""twin plug"" 4 cyls require 2 coil packs and 8 cyls require 2 coil packs. No tsuitable for some late 1999 applications.
Features and Benefits
• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Fd-487
• MSD 8241
Specifications
Specifications
-
Specifications
Application Ford Brand ACCEL Category Ignition Coils Color Black Emission Code 3 Maximum Voltage 42,000 Volts part type Ignition Coil Peak Increase in Arc Duration vs. OE 7% Peak Increase in Current vs. OE 9% Peak Increase in Energy vs. OE 11% Peak Increase in Voltage vs. OE 8% Primary Resistance 0.5 Ohms Product Type Ignition Coils Quantity 1 Quantity Per Pkg. 1 Secondary Resistance 11.6 k Ohms Sub Category Ignition Coil Turns Ratio 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Weight 2.2000
