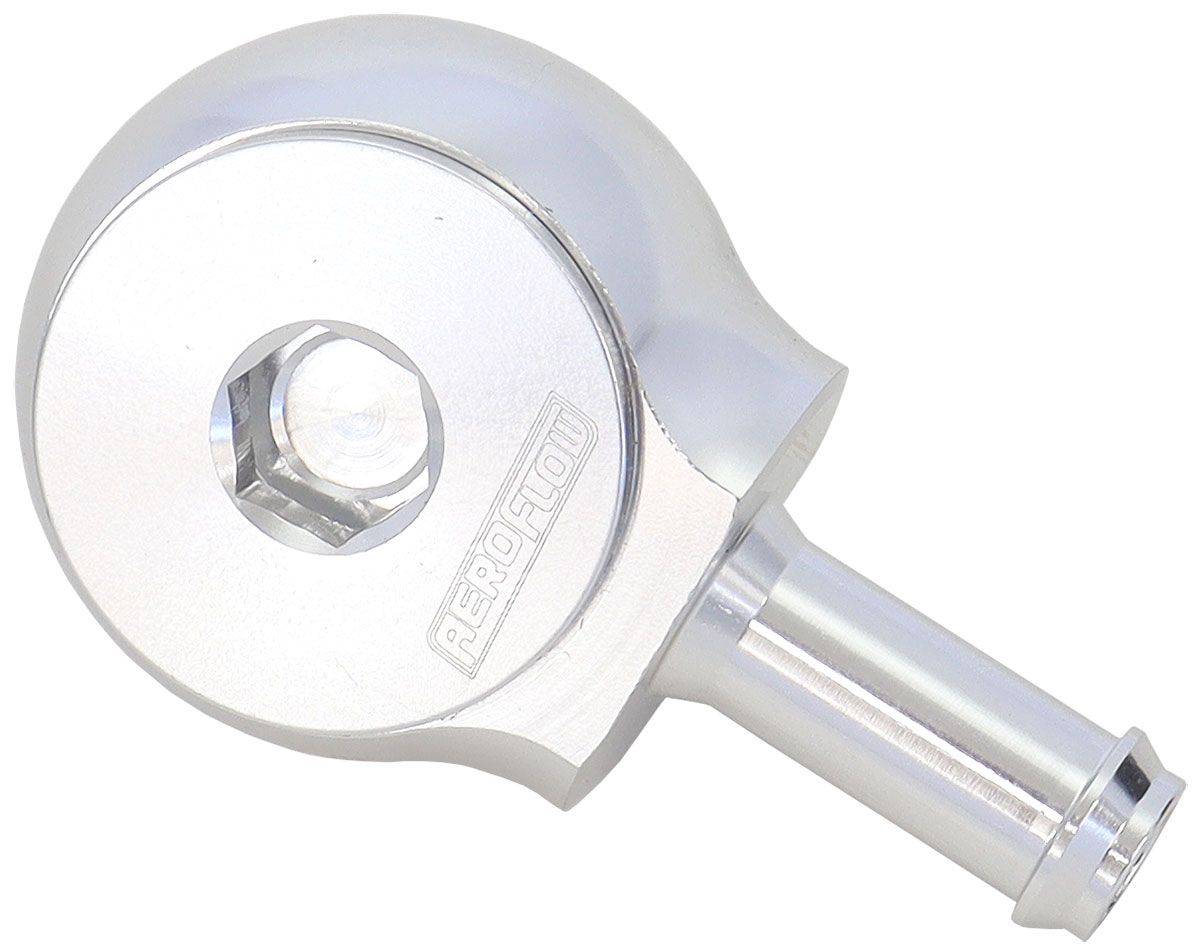

Aeroflow 90° Low Profile -10ORB to 1/2" Barb Silver Finish (AF959-08-10S)

AF959-08-10S - SLIMLINE -10ORB TO 1/2" BARB

Part Number: AF959-08-10S

Low Profile 90 Degree -10ORB to 1/2" (12.70mm) Straight Barb.
Aeroflow have designed these low profile 90 degree ORB to barb adapters that are perfect for tight clearance applications. They swivel 360 degrees allowing you get the perfect desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6 to -10ORB to various barb sizes.

Specifications: Dimensions :
Height From O-Ring - 26.60mm
Overall Length - 66.05mm
Overall Width - 38mm
