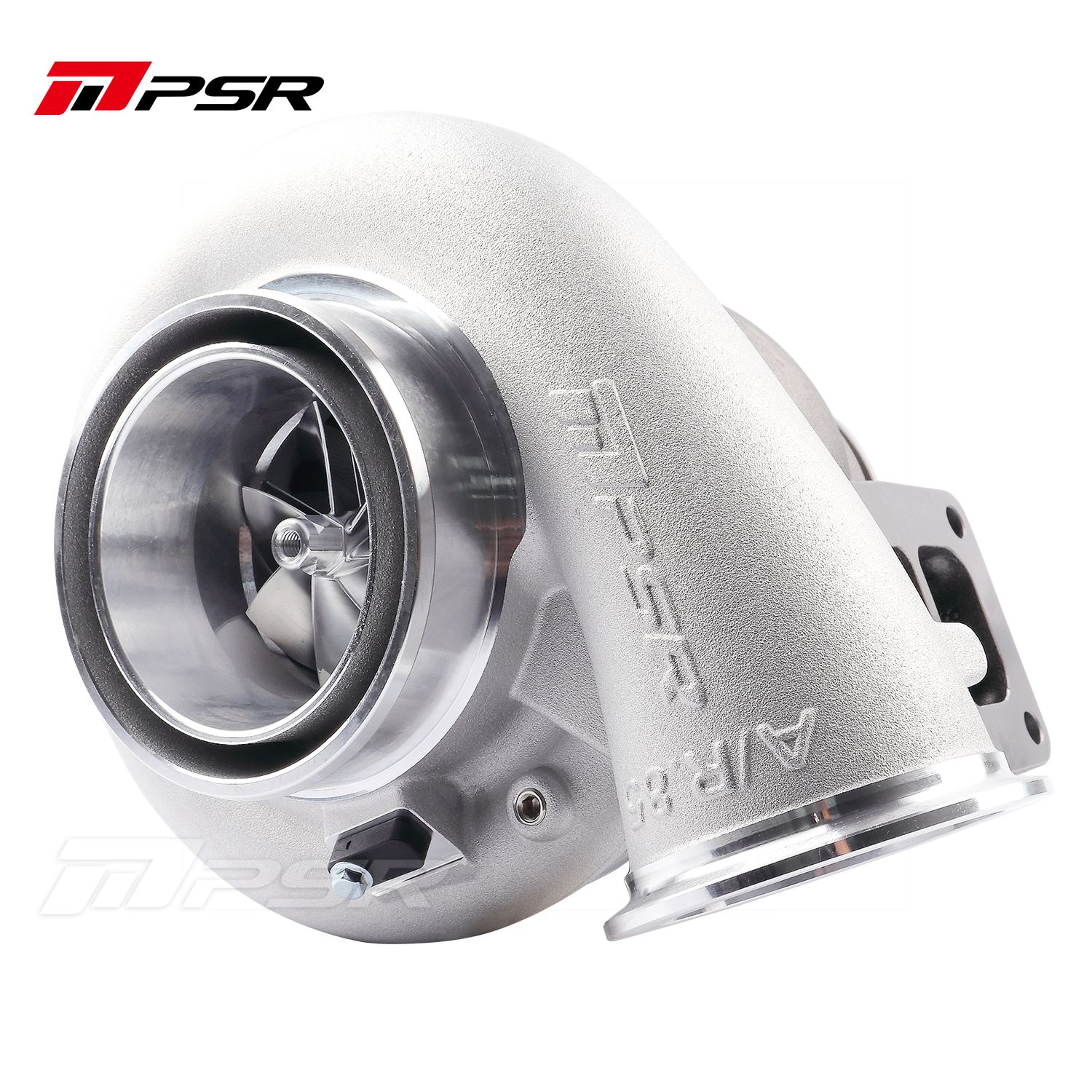

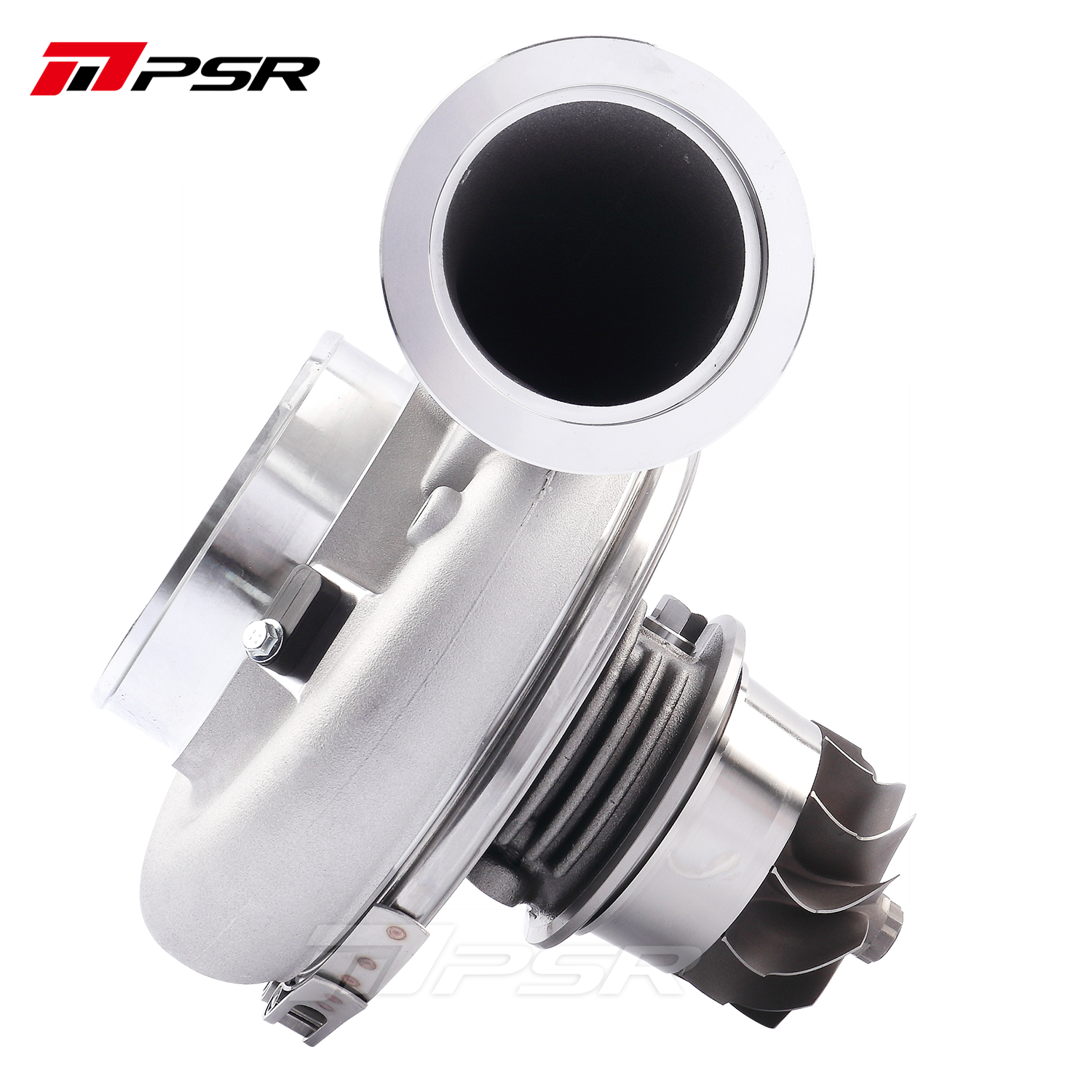

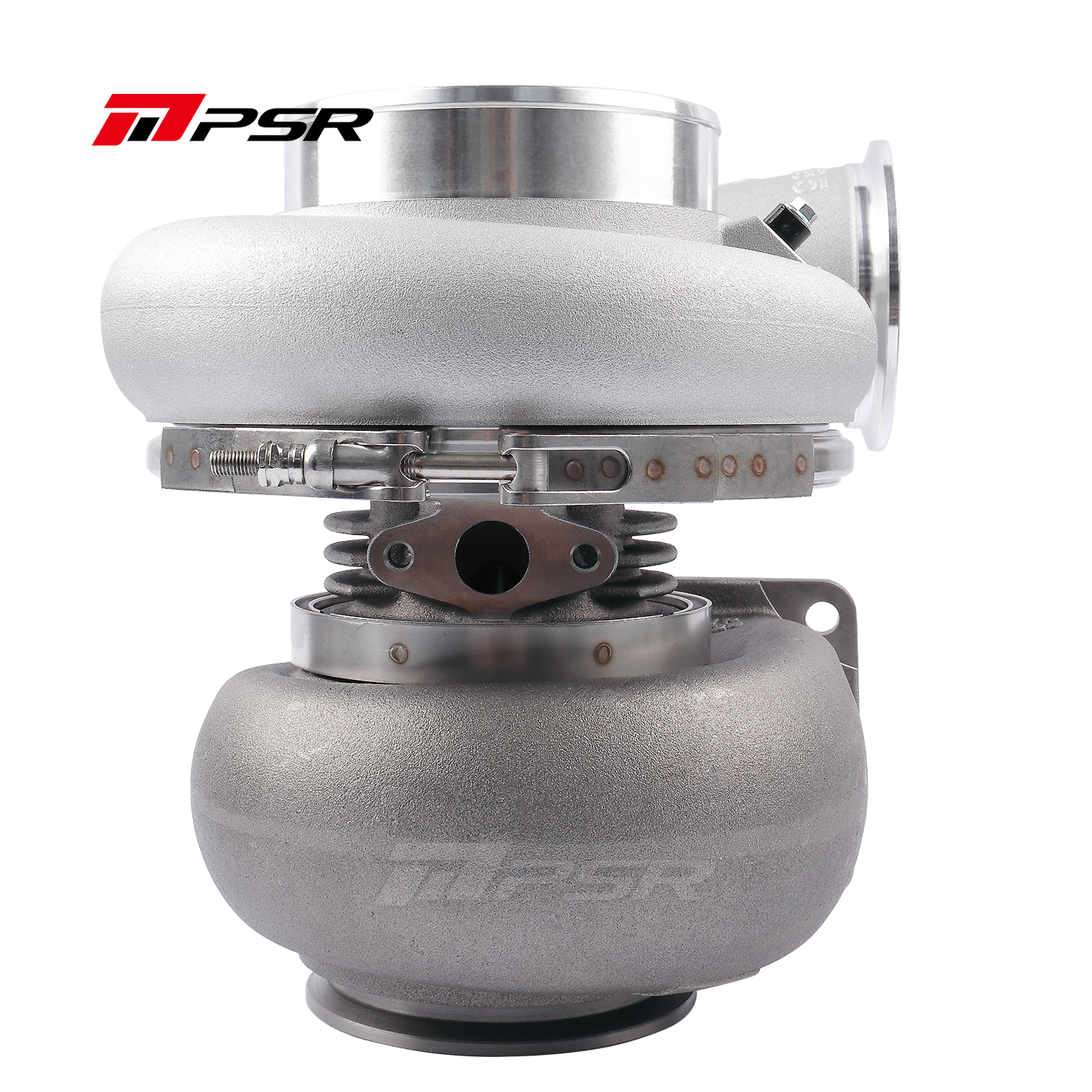

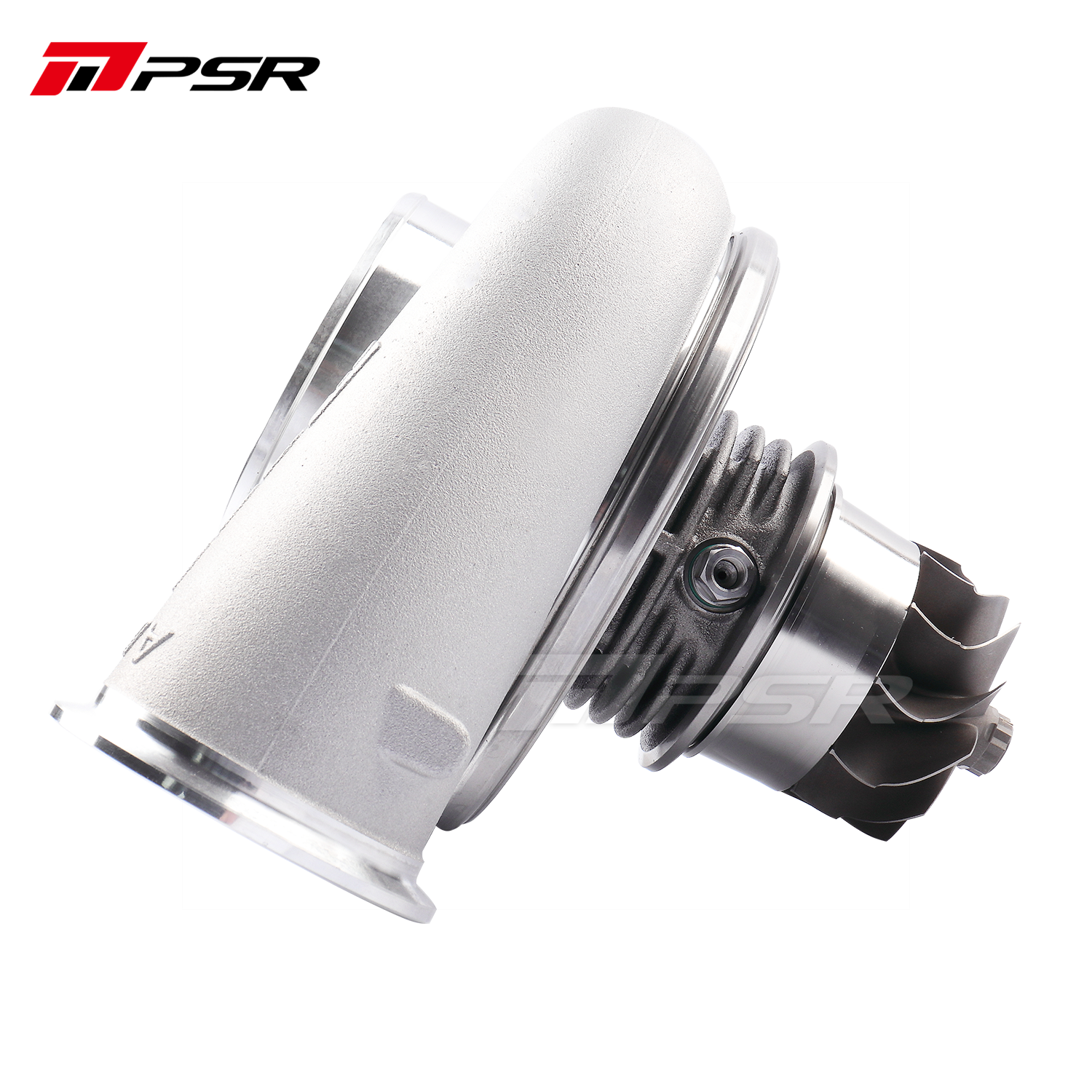

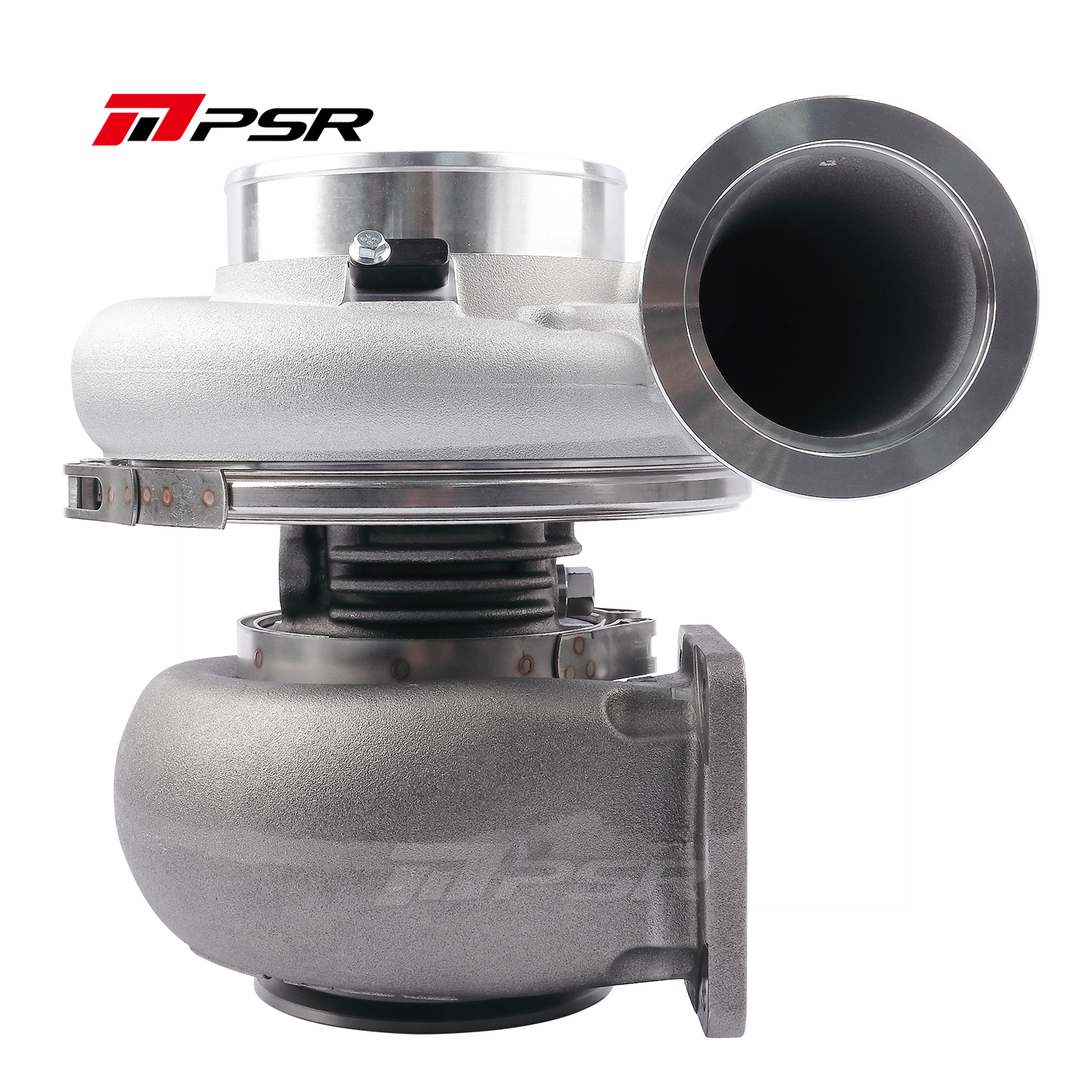

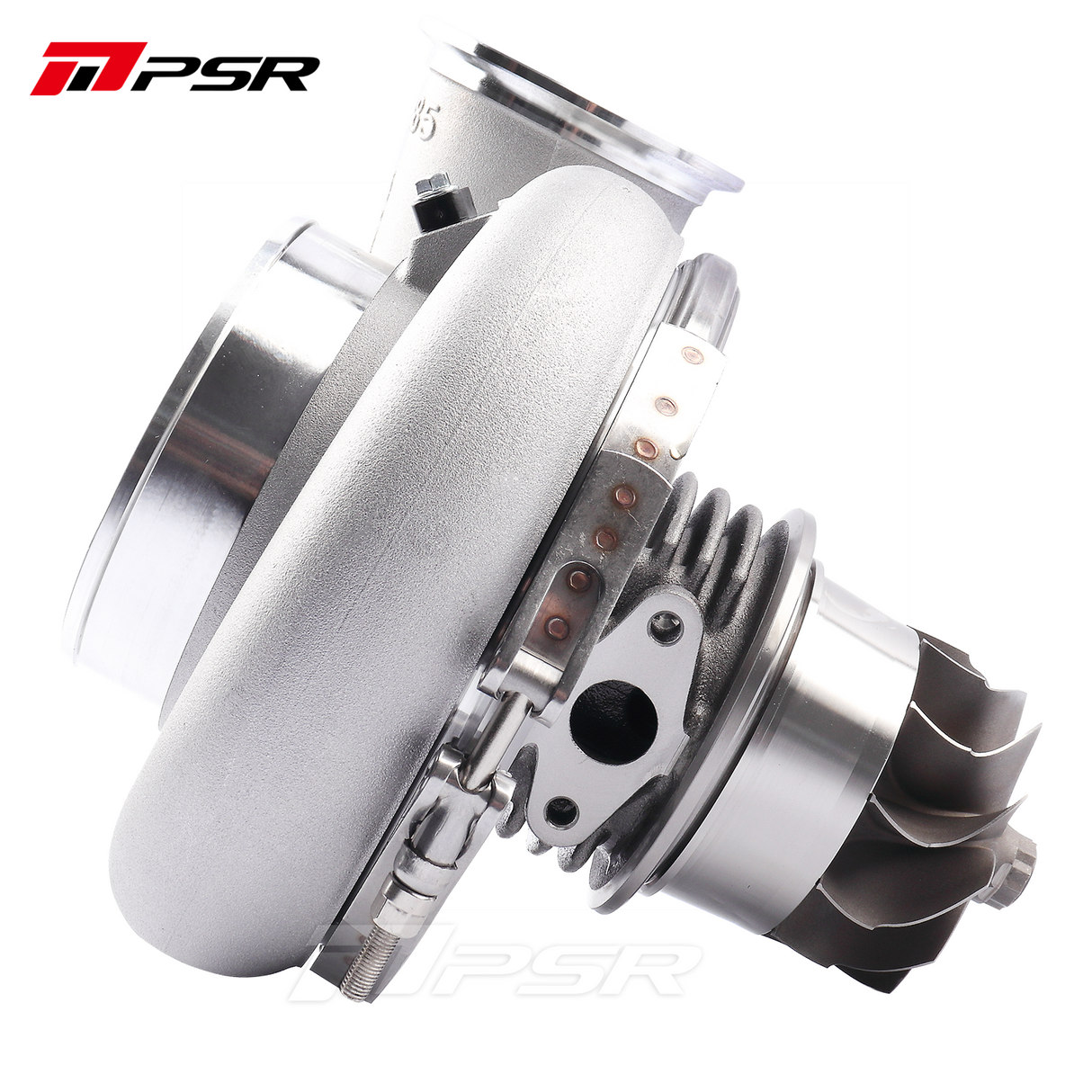

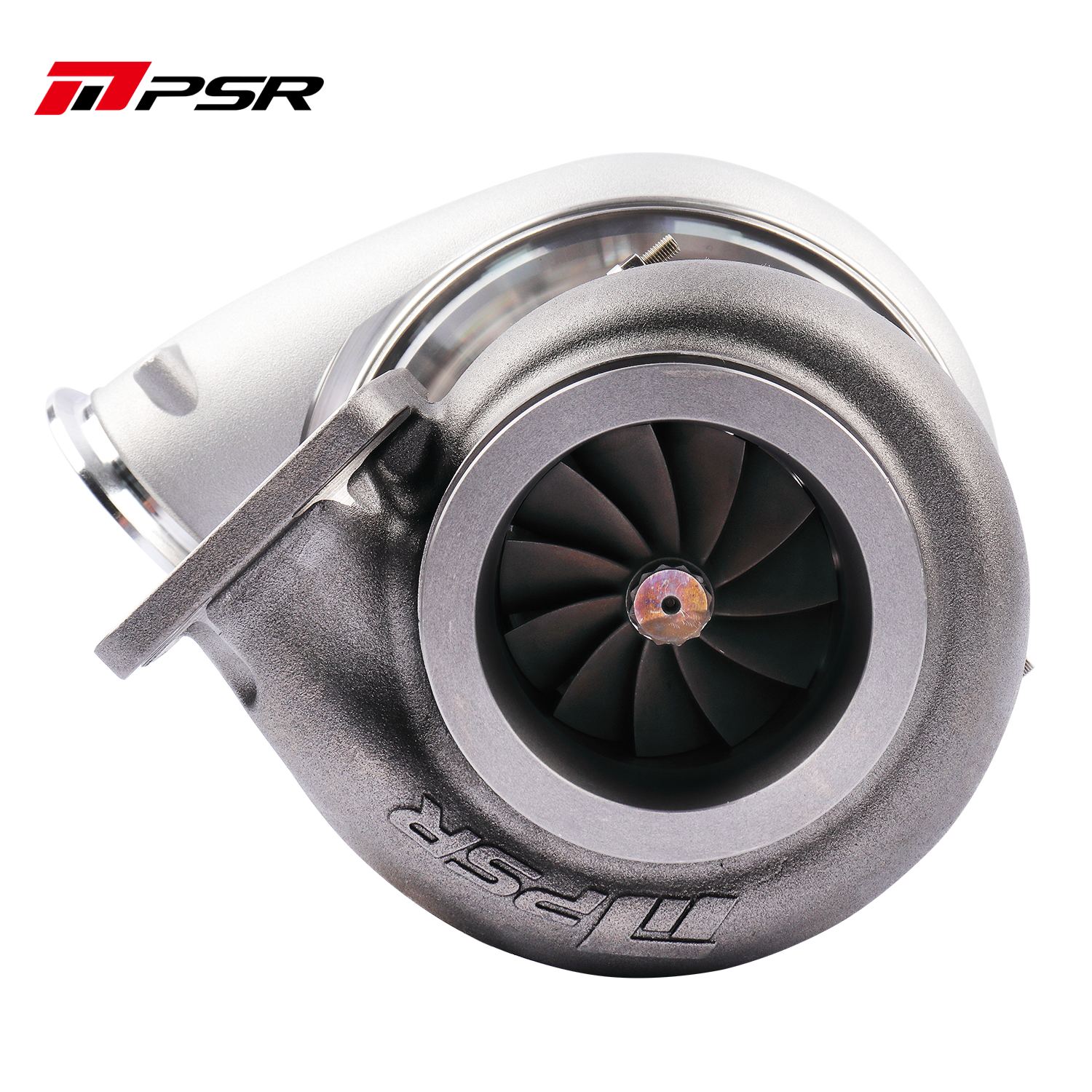

Pulsar 8085E Ball Bearing Turbo UP to 1600HP

Name: Pulsar 8085E Ball Bearing Turbo UP to 1600HP
Brand: Pulsar Turbo Systems
SKU: PULSAR123
Price: 2599.5 NZD
Availability: InStock

$2,599.50 NZD + GST

Shipping calculated at checkout.

Compressor Cover Option

Standard

Turbine Housing Option

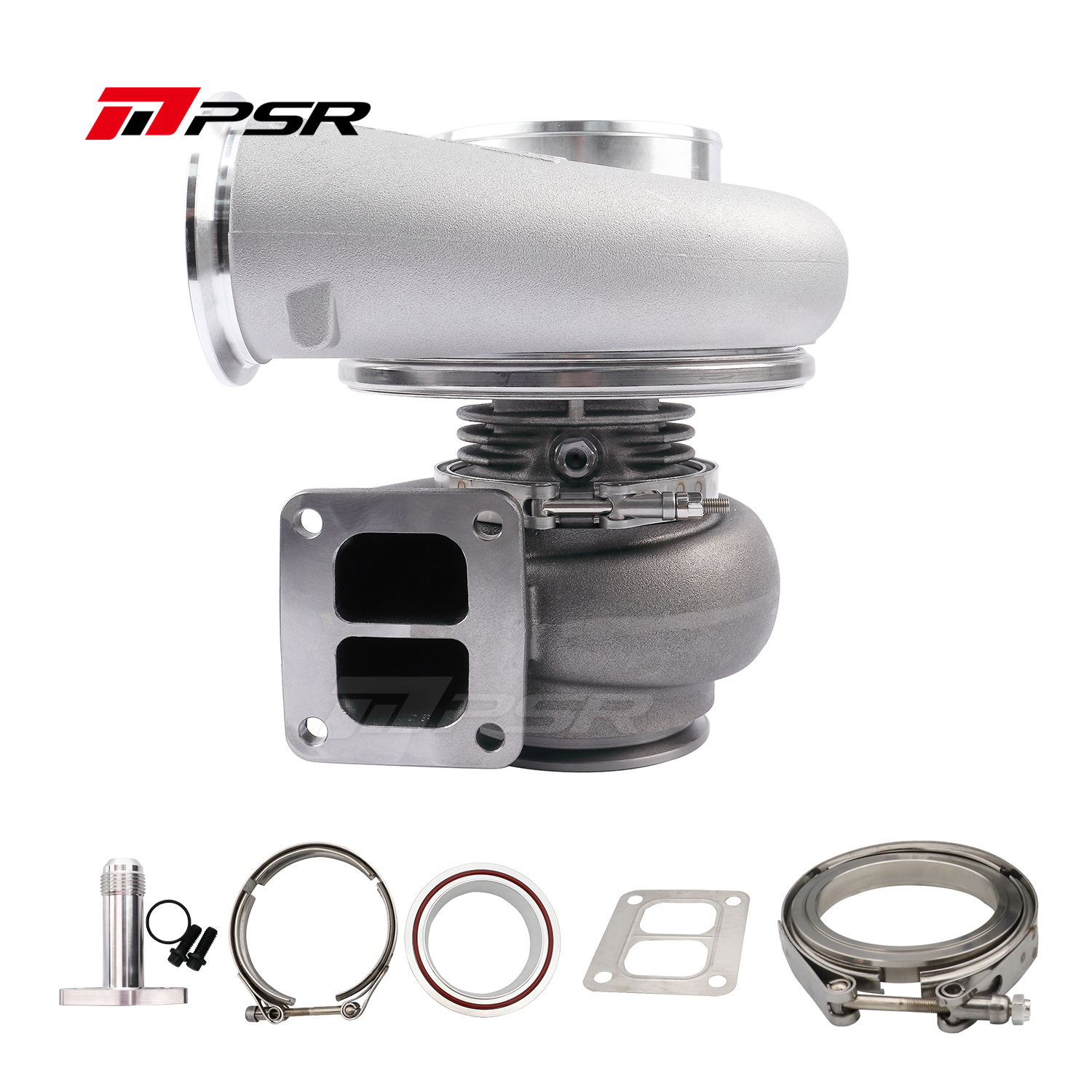

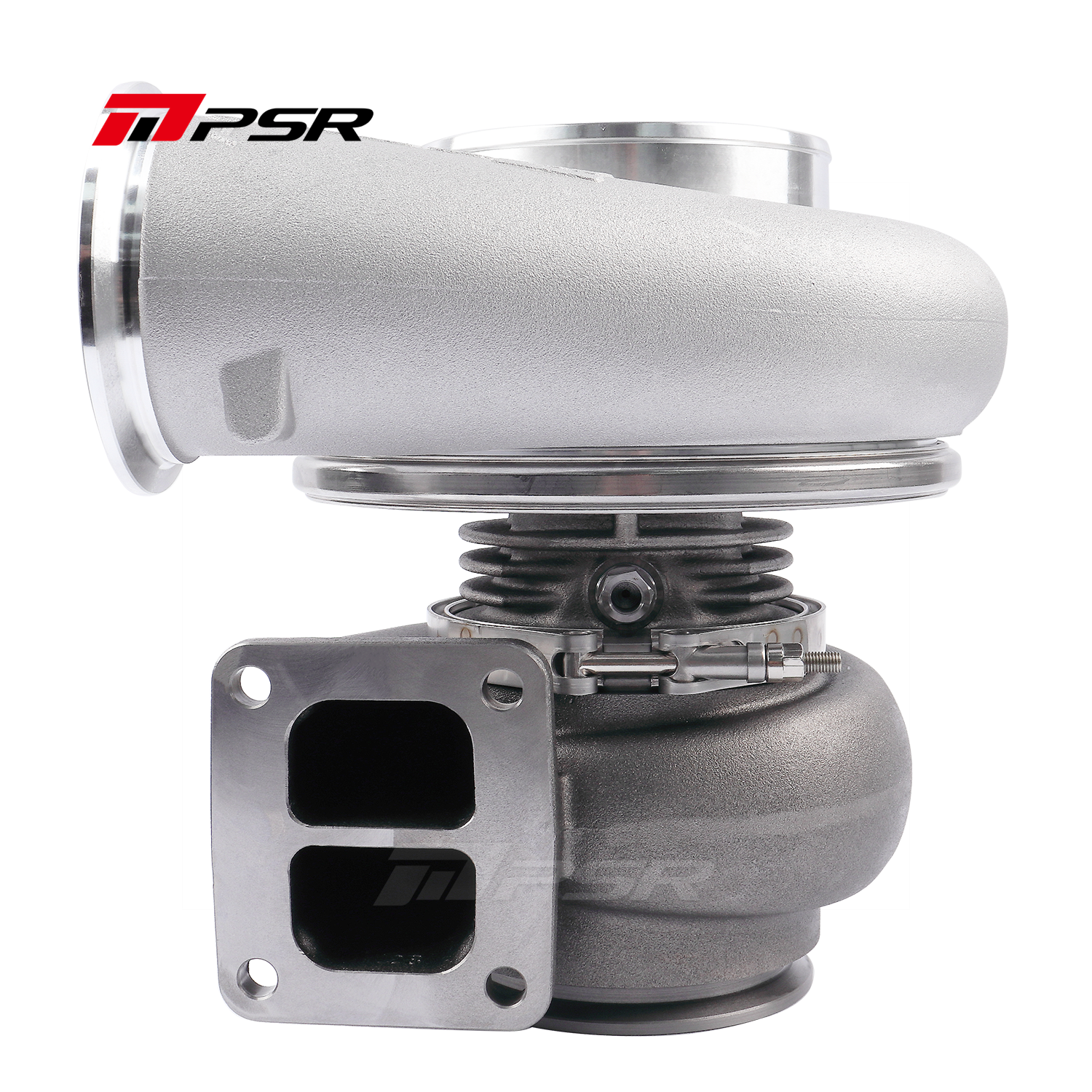

T4 Divided 1.28A/R W/O Turbine Housing

Product variants

Pulsar 8085E Ball Bearing Turbo UP to 1600HP - Standard / T4 Divided 1.28A/R is not in stock at Fast Lane Spares and will ship direct from supplier.

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

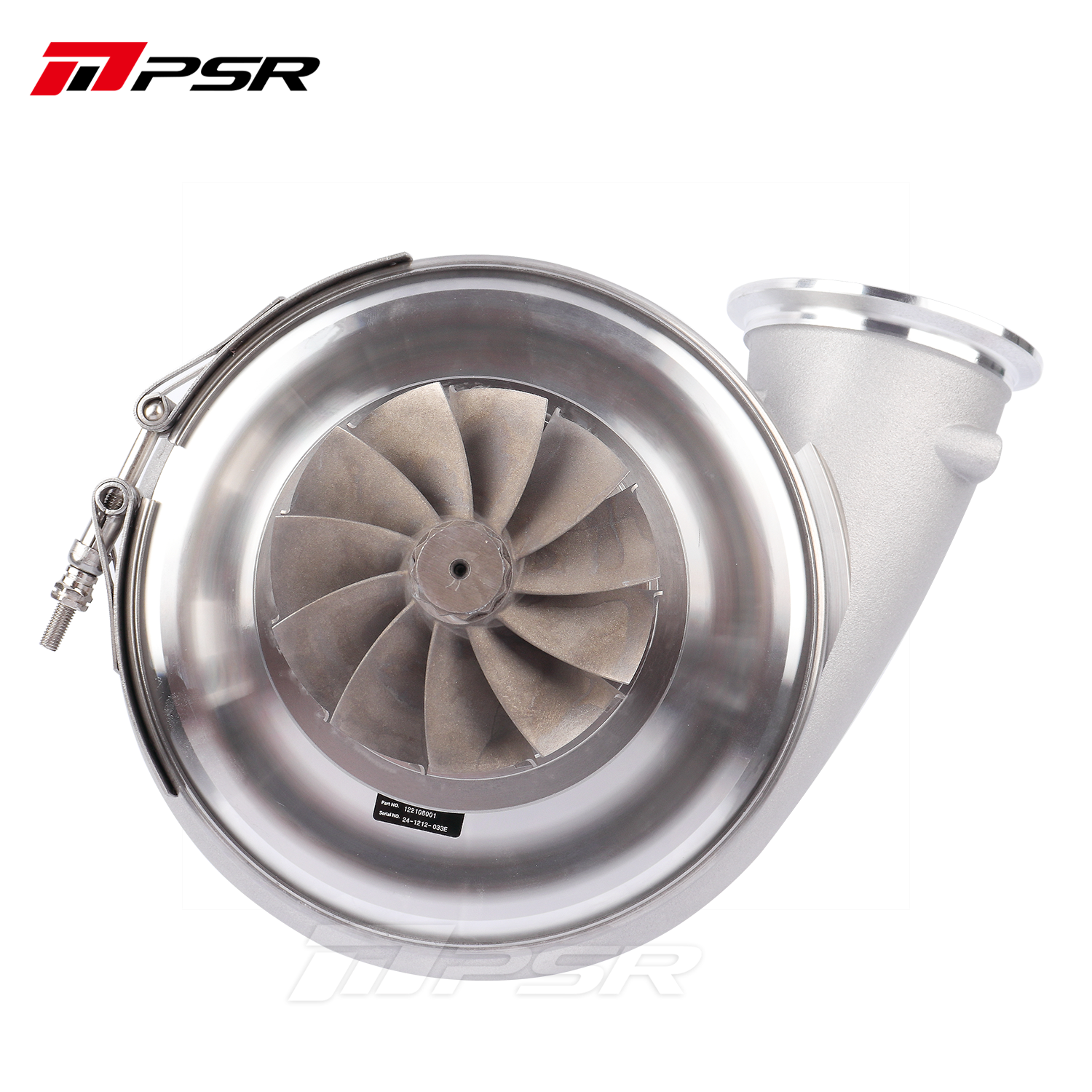

Billet Compressor Wheel with Extended Tapered Tip Technology

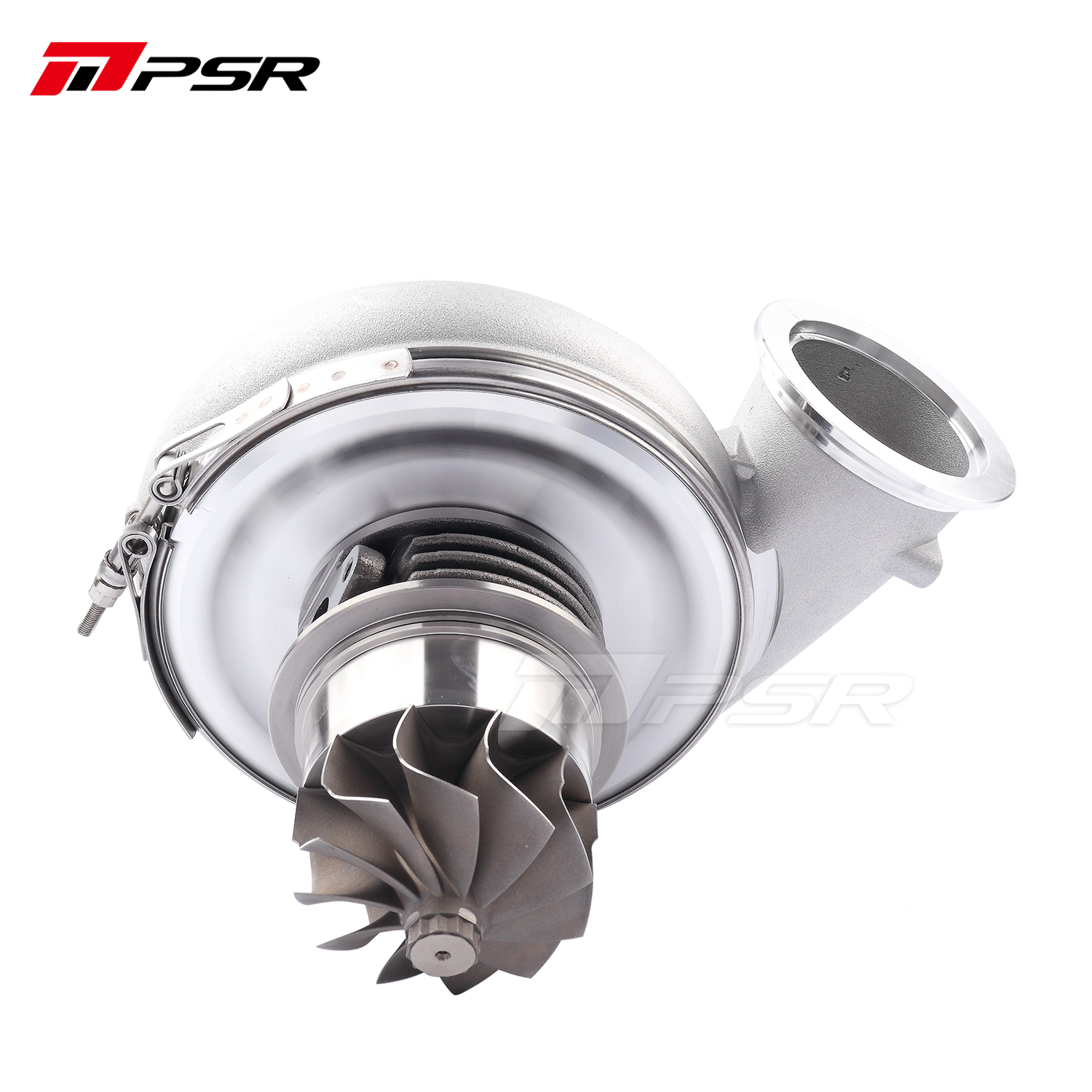

Inconel 713c 11 Blade Turbine Wheel
V-Band Flange kit for the exhaust housing included
Max Engine Horsepower: 1600

Description

Billet Compressor Wheel: 80.8 x 110.5mm, 7+7 Blade
Turbine Wheel: 85 x 89.5mm, 11 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
Compressor Cover：4.0” Hose Inlet/3″ V-Band Outlet
Turbine Housing: T4 Divided 1.28A/R; Dual V-Band 1.15A/R, 1.28A/R(Coming Soon)
The internal oil feed port is 0.9mm(Oil restrictor is no needed)
Oil feed fitting: 1/8-27 NPSF (Drawing 1)
Oil Drain: -12AN

Oil Drain Fitting:

12 AN_Extended
