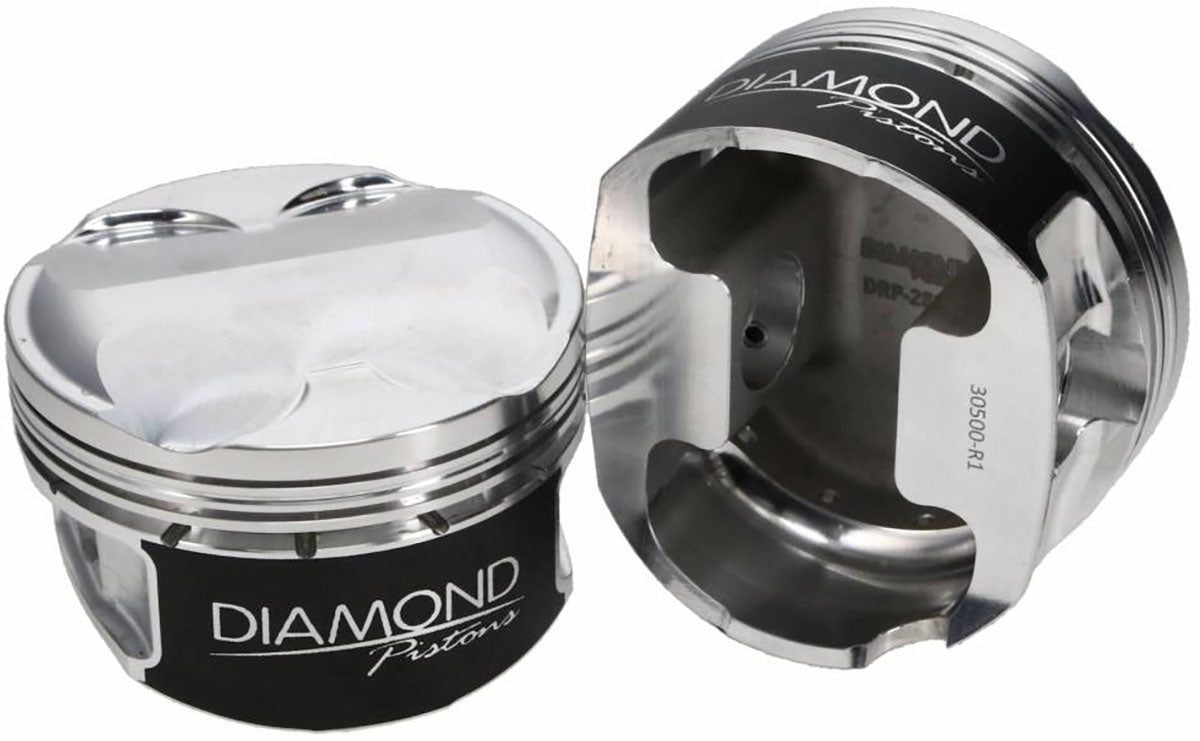

Diamond 5.0L Coyote Dome Top Forged Pistons With Rings - D30501-R1-8

Piston Specifications:

• Block: 5.0L Coyote
• Bore: 3.640
• Stroke: 3.650
• Rod: 5.933
• Comp Heigh: 1.169"
• Weight: 388
• Pin: .866 x 2.500"
• CC's: Dome Top 8.0
• Comp Ratio With 57cc Head: 11.6
• Ring Set: 09053640

Piston Features:

• Designed to be used with 2011-17 5.0L Coyote cylinder heads
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Top ring down dimension: .300"
• Ratios figured for .040 head gasket @ 8.937 Deck
• Premium 1.5mm x 1.5mm x 3.0mm ring package
• Premium 8620 .155W wrist pins included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.075" intake and 0.075" exhaust
• Made from 2618 alloy
