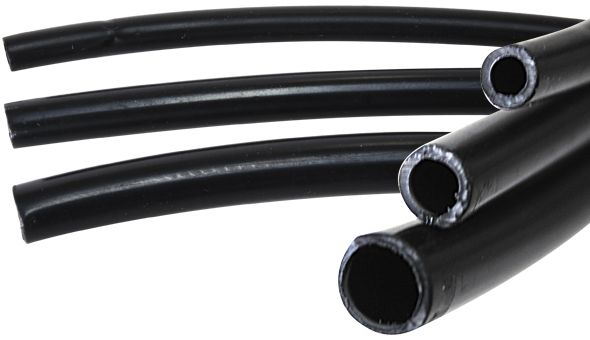

Aeroflow 120 Series Nylon Hose 3/16" (AF120-187-6M)

AF120-187-6M - 3/16" OD 120 SERIES NYLON

6 Metre Length

Part Number: AF120-187-6M

Aeroflow's Flexible black nylon hose is ideal for vacuum, air, oil, fuel and low pressure hydraulic lines and to be used with Aeroflow's 120 Series Push-to-connect aluminium fittings. The nylon hose has an extremely smooth inner surface with a very low coefficient.
- Max Bend Radius 25mm / 1"
- Burst Pressure 1000psi (68.95 bar)
- Working Pressure Mpa 1.7, 250psi, 17.2 bar, 1.7Mpa
- Safe for use with water methanol kits
- Temperature range -40°C (-40°F) to 90°C (194°F)
- Wall Thickness 1mm / 3/64"
