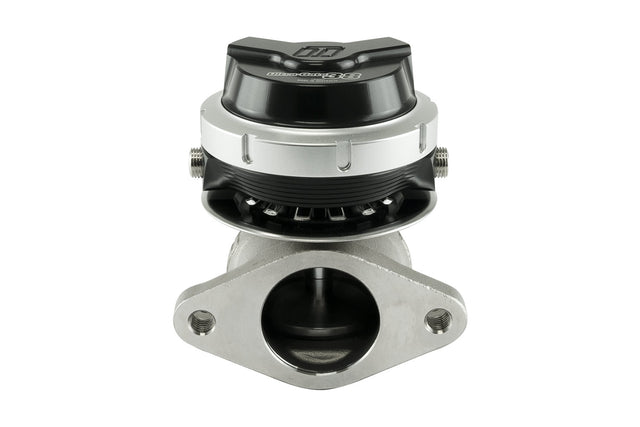

Turbosmart GenV WG38 UltraGate38 14psi Black
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Supersedes: TS-0501-1141
Part Number: TS-0551-1012
The GenV WG38 UltraGate38 External Wastegate is a Motorsport-proven, cost-effective external wastegate.
The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.
The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management. The GenV Range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red, Purple and Sleeper Colours
HP High Pressure Version - Black Only
Features
Traditional 3 Bolt Flange & Orientation
Optional Position Sensor Upgrade
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
GenV Wastegate Unit _x000D_
All Springs Included _x000D_
(3,5,7,14 (1 Inst. As per Desciption) _x000D_
GenV SS316 Valve Seat _x000D_
GenV UltraGate38 SS Gaskets _x000D_
Hose Tail & Blank Fitting Kit _x000D_
Turbosmart Decal _x000D_
DOES NOT INCLUDE WELD FLANGES _x000D_
