Aeroflow Billet Triple 39mm Fuel Pump Hanger - Black (AF64-4053BLK) AF64-4053BLK

Aeroflow Billet Triple 39mm Fuel Pump Hanger - Black (AF64-4053BLK)

Use With AF49-1041 Fuel Pump
SKU: AF64-4053BLK
$543.30 - $543.30
$543.30
$543.30 - $543.30
$543.30
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

AEROFLOW TRIPLE PUMP HANGER

Use With AF49-1041 Fuel Pump

Part Number: AF64-4053BLK

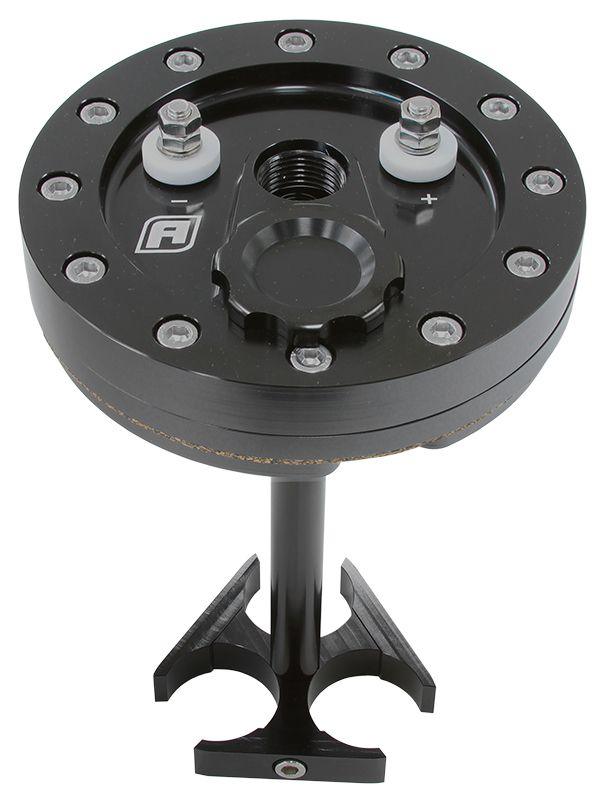

Now you can upgrade your fuel delivery system without having to replace or customiseyour fuel cell. Aeroflow has developed a triple pump hangerthat replaces the standard fuel cell filler cap and is a straight bolt in item. The billet hanger has a built in fuel cap and has the ability to mount one, two or three AF49-1041 EFI fuel pumps or any 39mm (1-17/32") diameter fuel pumps. CNC machined from billet 6061-T6 aluminium with a black anodized option for maximum durability and corrosion protection against E85/Methanol.

  • Suitsa 120mm bolt circle and 4" diameter cutout
  • For use with 250mm or 10" deep tanks
  • Single, twin or triple E85 compatible Aeroflowpumps or 39mm dia. in tank pumps
  • Built-in fuel manifold chamber for better pressure equalization and no external couplers
  • -10 feed for maximum flow
  • -16 port / fillercap
  • Block-Off plugs (-6ORB) required if using lessthan 3 pumps (sold separetly)

Specifications: If the application is using2 or more fuel pumps. We recommend a minimum of an -8AN(1/2") fuel line overflowfrom the surge tank to the main fuel tank. This is a mustto avoid pressurizing the surge tank and causing damage to the tank itself.
