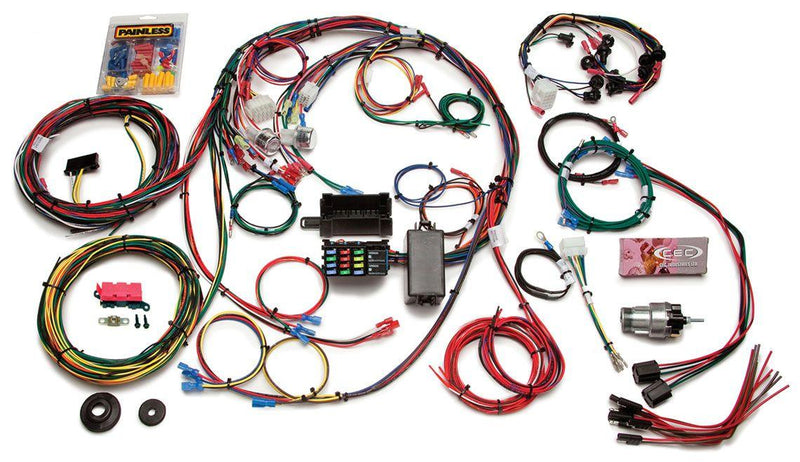

Painless 22 Circuit Mustang 1967-68 Wiring Harness Kit (PW20121)

PW20121 - PAINLESS MUSTANG 67-68 WIRING

Part Number: PW20121

This 22 circuit direct fit 1967-1968 Mustang harness has many of the factory connectors already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
Number of Circuits:
22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length:
Factory Fitment
Fuse Type:
Mini Blade & Maxi Fuse
Firewall Passthrough:
Grommet
Color Code Based:
Factory Ford
Circuit Designations:
Printed on Wires
This harness includes circuits for:
A/C & Heat
Accessory / Cigarette Lighter
Accessory Relay
Backup Lights
Brake Lights
Charging
Courtesy and Dome Lights
Electric Choke
Emergency Flashers
Fused Power Source
Glove Box Light
Headlights
Horn (Relay)
Ignition Coil
Instrument Panel Lighting and Gauges*
Park Lights
Radio/Clock (Constant and Switched)
Starting
Tail Lights and License Plate Light
Trunk Light
Turn Signals
Wipers and Washer Pump
* Including Wires For:
Aftermarket Tachometer
Ammeter
Brake Warning Light
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
