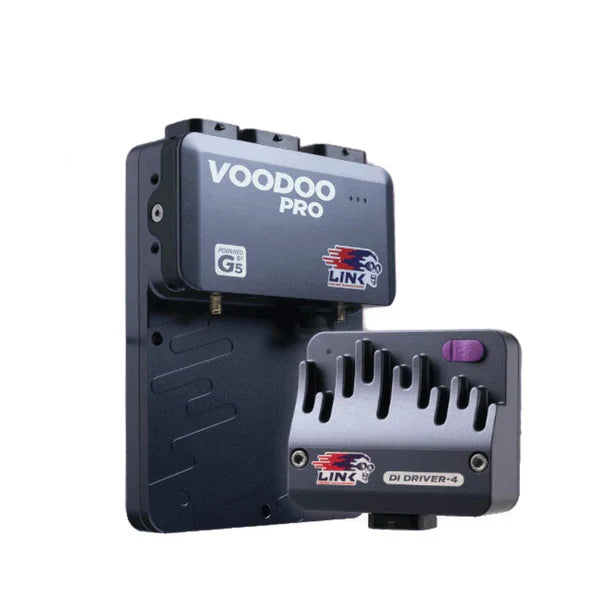

Link G5 Voodoo Pro + Link DI Driver-4 Bundle
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: 152-5000 / 144-5000
New G5 Voodoo Pro
G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.
With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:
- Twelve cylinders or six rotors with sequential injection and direct spark, or
- Eight cylinders with staged injection and direct spark.
The G5 Voodoo Pro is the perfect choice for professional level motorsport.
For more information please see the Features and Specifications tab or view our Product Introduction page here.
In the box:
- G5 Voodoo Pro ECU
- USB-C Connection Cable
- WiFi Antenna
- 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- QuickStart Guide (A5)
- Installer I/O table (A3)
- Link stickers
DI Driver-4
Discover the next evolution in engine tuning with our advanced Direct Injection (DI) control module. The DI Driver-4 is a highly configurable, cost effective and integrated solution, designed to give you full control of most modern solenoid type direct injectors and high-pressure fuel pumps.
Each DI Driver-4 module can allow up to four high voltage peak and hold solenoid Direct Injectors and one high pressure peak and hold Fuel Pump to flow up to their maximum amount of fuel at a very high engine RPM.
When combined with a G5 Voodoo Pro ECU, up to three DI Driver-4 modules can be connected together to control up to 12 Direct Injectors and two independent High Pressure Fuel Pumps. Together the G5 Voodoo Pro ECU and DI Driver-4 modules can control both Direct Injection and staged Port Injection on a single tune, giving you the ultimate all-in-one solution to achieve greater power and efficiency.
Connecting to your ECU and other DI Driver-4 modules is easy thanks to CAN Bus compatibility. Set-up has been simplified with our easy-to-use free DI Link software, which is highly user configurable over USB.
Housed in a durable, sealed CNC enclosure with a waterproof Superseal automotive connector, it’s engineered to withstand demanding conditions.
All this is backed by the industry-leading reliability and support you’ve come to expect from LinkECU.
The time has now come to unleash your Direct Injection engine with Link’s DI Driver-4, the easiest, most effective and most affordable way to tune DI on the market.
