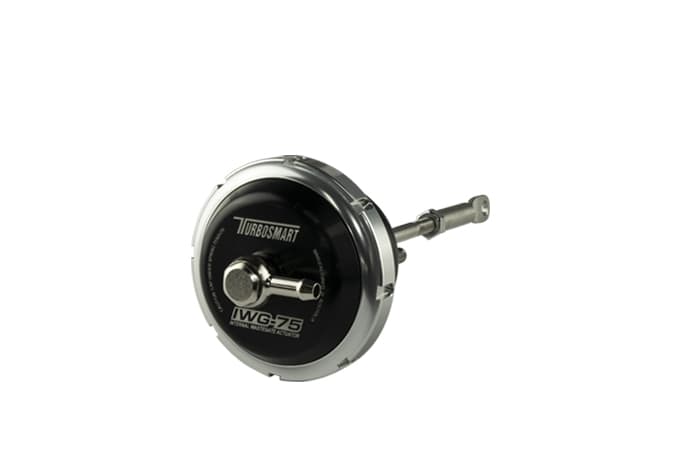

Turbosmart IWG75 Ford XR6 Actuator 7PSI

Suit BA-FG XR6 Ford 6 Cyl Turbo, 2002-On, 7 PSI
SKU: TS-0622-1072
Original price $216.00 - Original price $216.00
Original price
$216.00
$216.00 - $216.00
Current price $216.00
+ GST

Stock Status / Availability

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Part Number: TS-0622-1072

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration are likely required.

Available in
5Psi  / 0.3 BAR: TS-0622-1052
7psi  / 0.5 BAR: TS-0622-1072
12psi / 0.8 BAR: TS-0622-1122

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
The 5psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.


SUPPLIED WITH
IWG75 Wastegate Actuator
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
