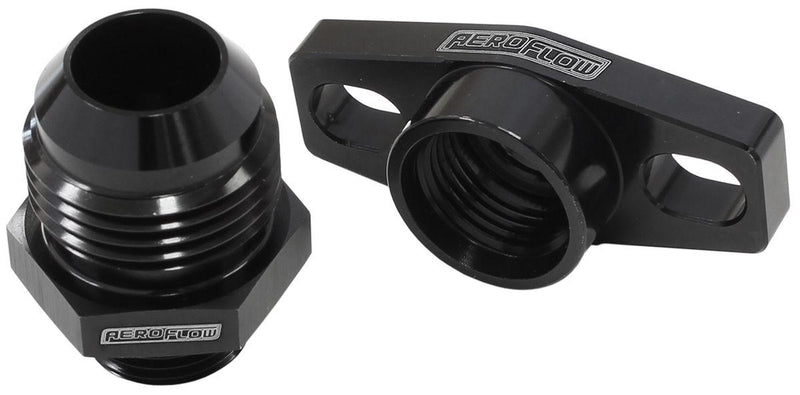

Aeroflow Turbo Drain Adapter (AF463-10)

Aeroflow Turbo Drain Adapter (AF463-10)

With -12AN Fitting, 38-44mm Hole Centres. Black Finish.
SKU: AF463-10
Save $5.89 Save $5.89
$58.90
$58.90 - $58.90
$58.90
$53.01
$53.01 - $53.01
$53.01
+ GST
Availability:
Available, allow for 2-10 days shipping

AF463-10 - TURBO DRAIN ADAPTER -12AN

With -12AN Fitting, 38-44mm Hole Centres. Black Finish.

Part Number: AF463-10

Turbo Oil Drain Adapter With O-Ring Seal.

-12 AN Male with 38-44mm hole centres to suit turbos with 38mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
