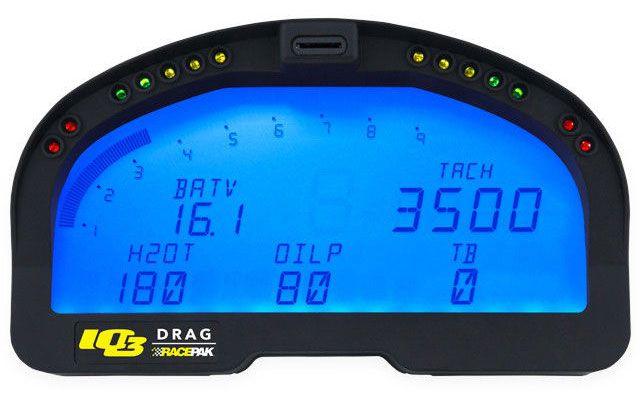

Racepak IQ3 Drag Logger Dash (R250-DS-IQ3D)

R250-DS-IQ3D - IQ3 DRAG LOGGER DASH

Blue Backlight, Display Up To 28 Inputs

Part Number: R250-DS-IQ3D

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. Information is displayed on four user-definable pages and recorded data is stored on a microSD memory card located on the face of the dash for easy access.
WHAT'S IN THE BOX:
IQ3D Dash
Wiring harness (includes 2 programming buttons)
Driveshaft Sensor
Oil Pressure Sensor
Water Temperature Sensor
USB programming cable
Racepak Datalink II software
MicroSD card & reader
Please note:
Drive Shaft collar sold separatel
Specifications
Records Engine and Driveshaft RPM, Oil PSI, Water Temperature, Battery Voltage and 12v Event
Displays up to 28 inputs via 4 pages
Blue dimmable backlight
Four user defined alarms
User defined 5 character sensor input names
Programmable shift light output for up to six shift points
Shielded, low luster display for sunlight viewing
Six additional V-Net channels available (2 and 4 channel upgrades available, up to 18 channels)
Connects to over 20 aftermarket EFI products including Holley, FAST, Big Stuff 3 and more
Shock travel upgrade package available
