Quick Time | SKU: RM-4016

Quick Time RM-4016 Bellhousing - RM-4016

Name: Quick Time RM-4016 Bellhousing - RM-4016
Brand: Quick Time
SKU: RM-4016
Price: 339.40 NZD
Availability: InStock

Compatible with Mazda MX5 to Sadev transmission.

$339.40 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Compatible with Mazda MX5 to Sadev transmission.

Part Number: RM-4016

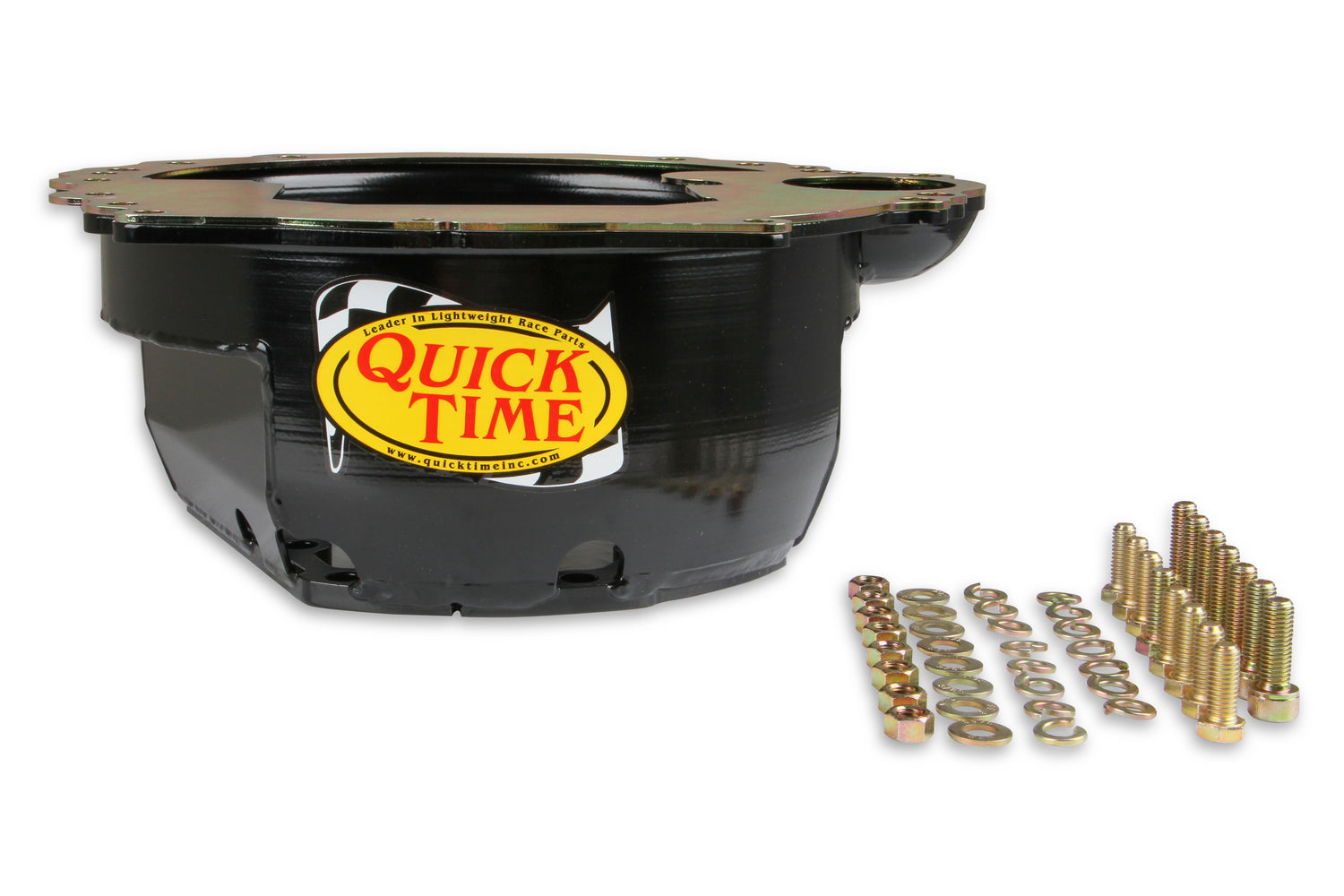

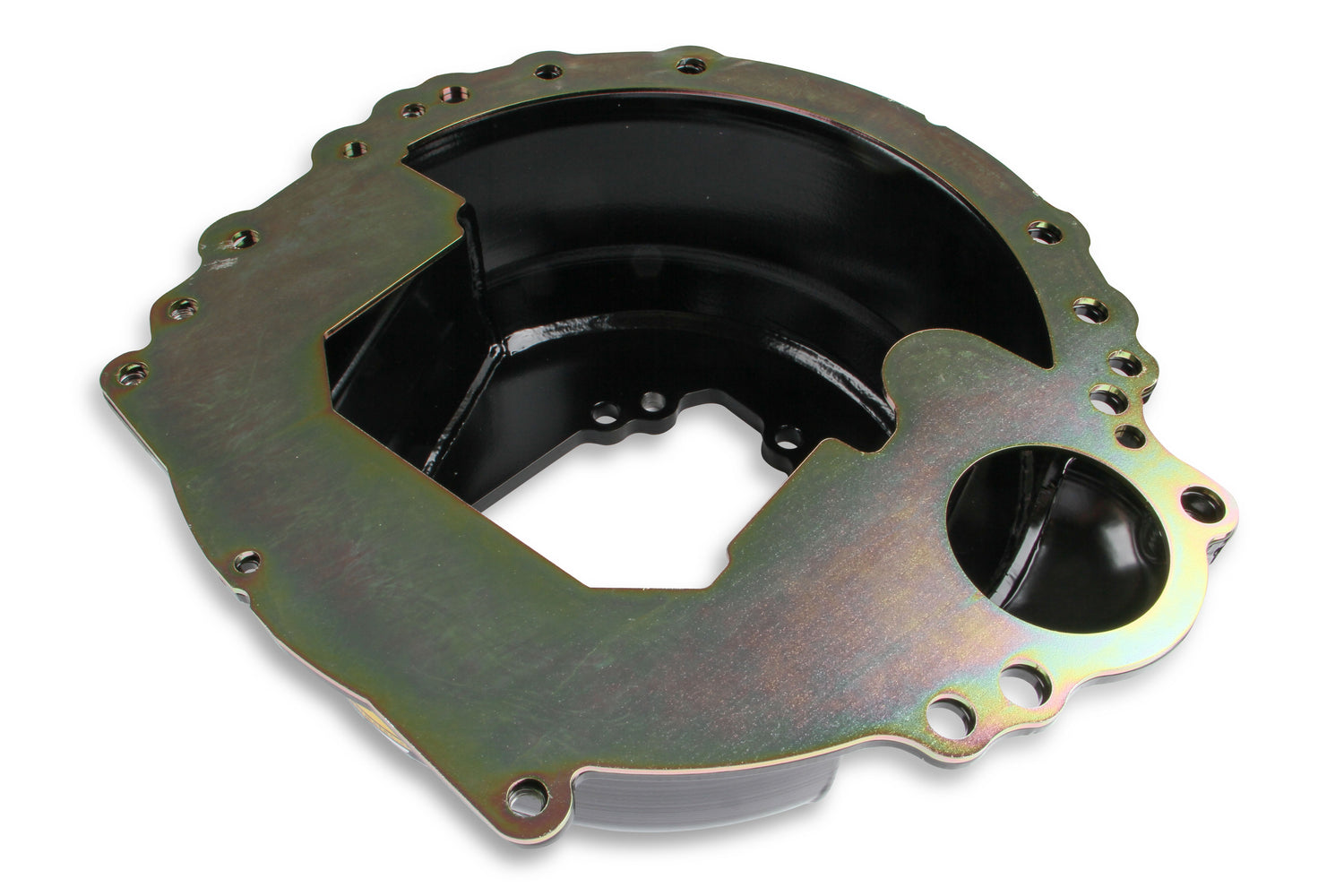

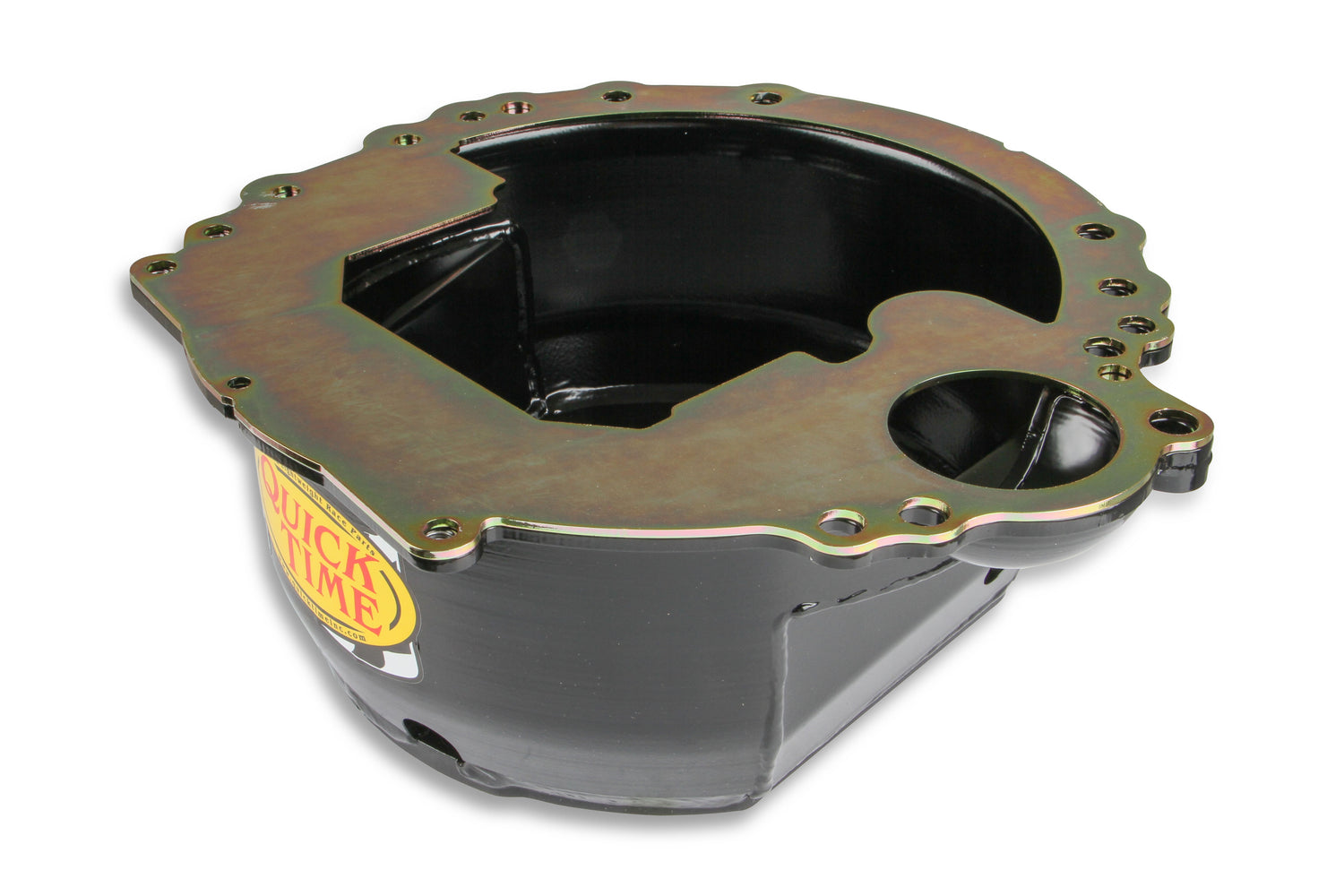

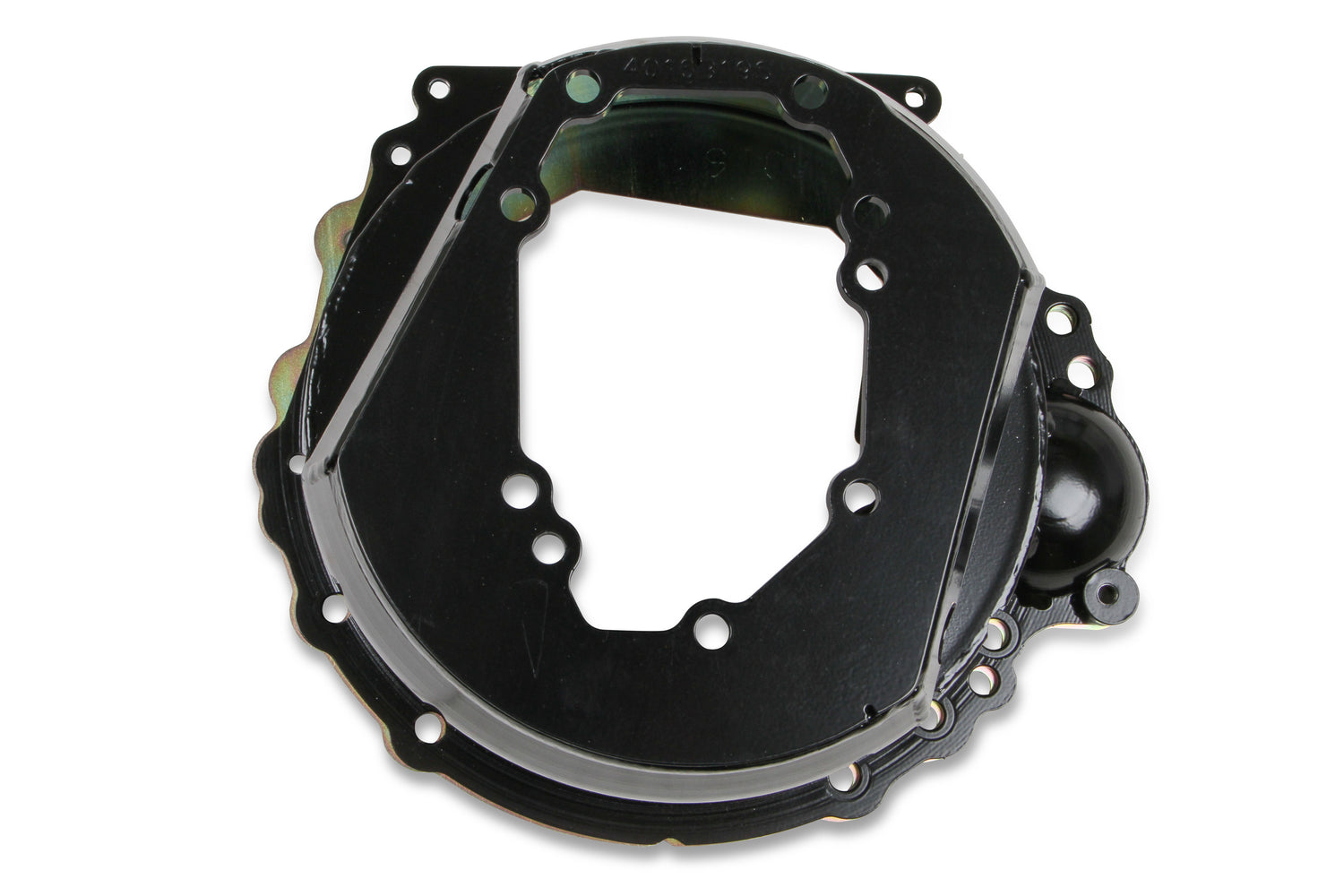

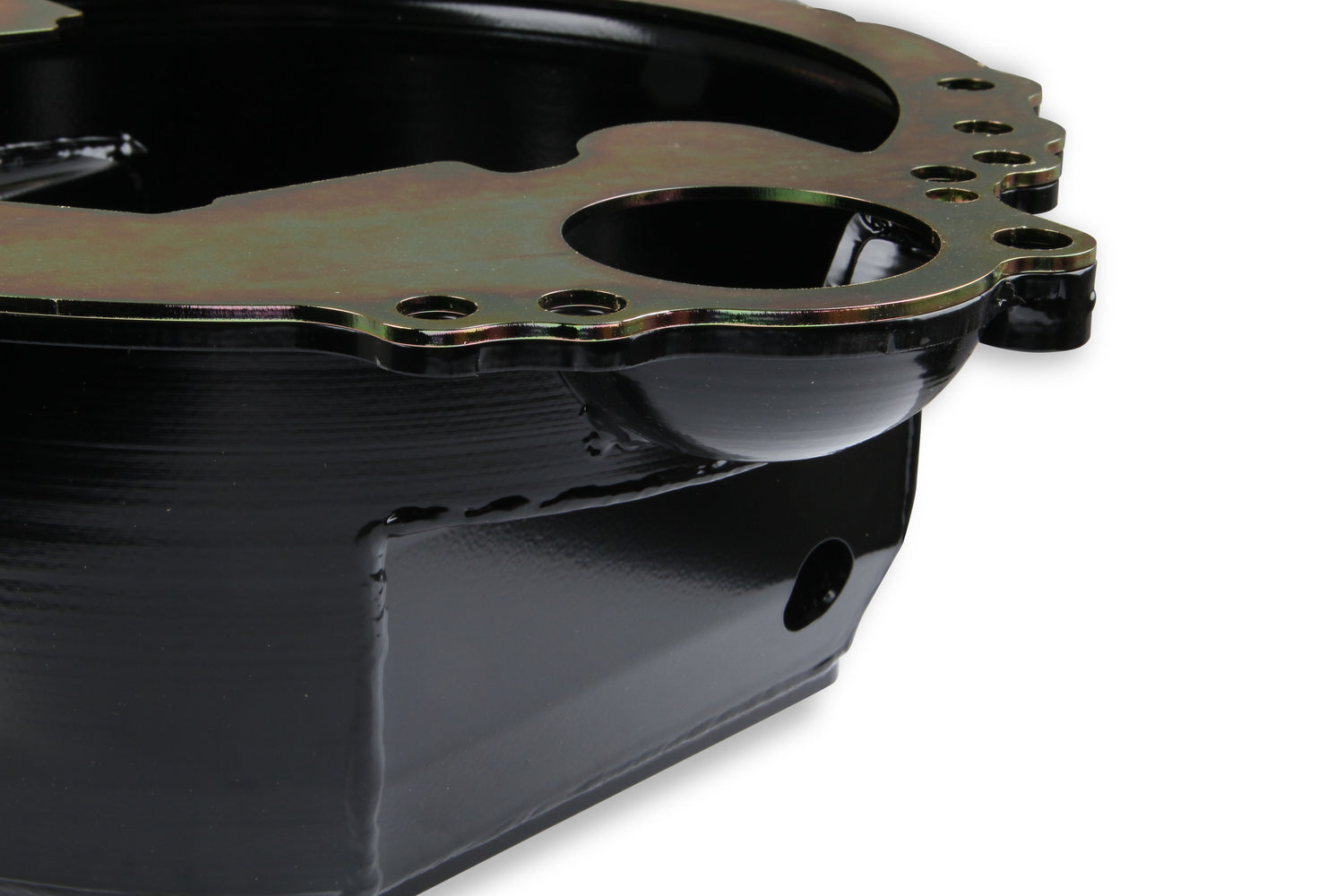

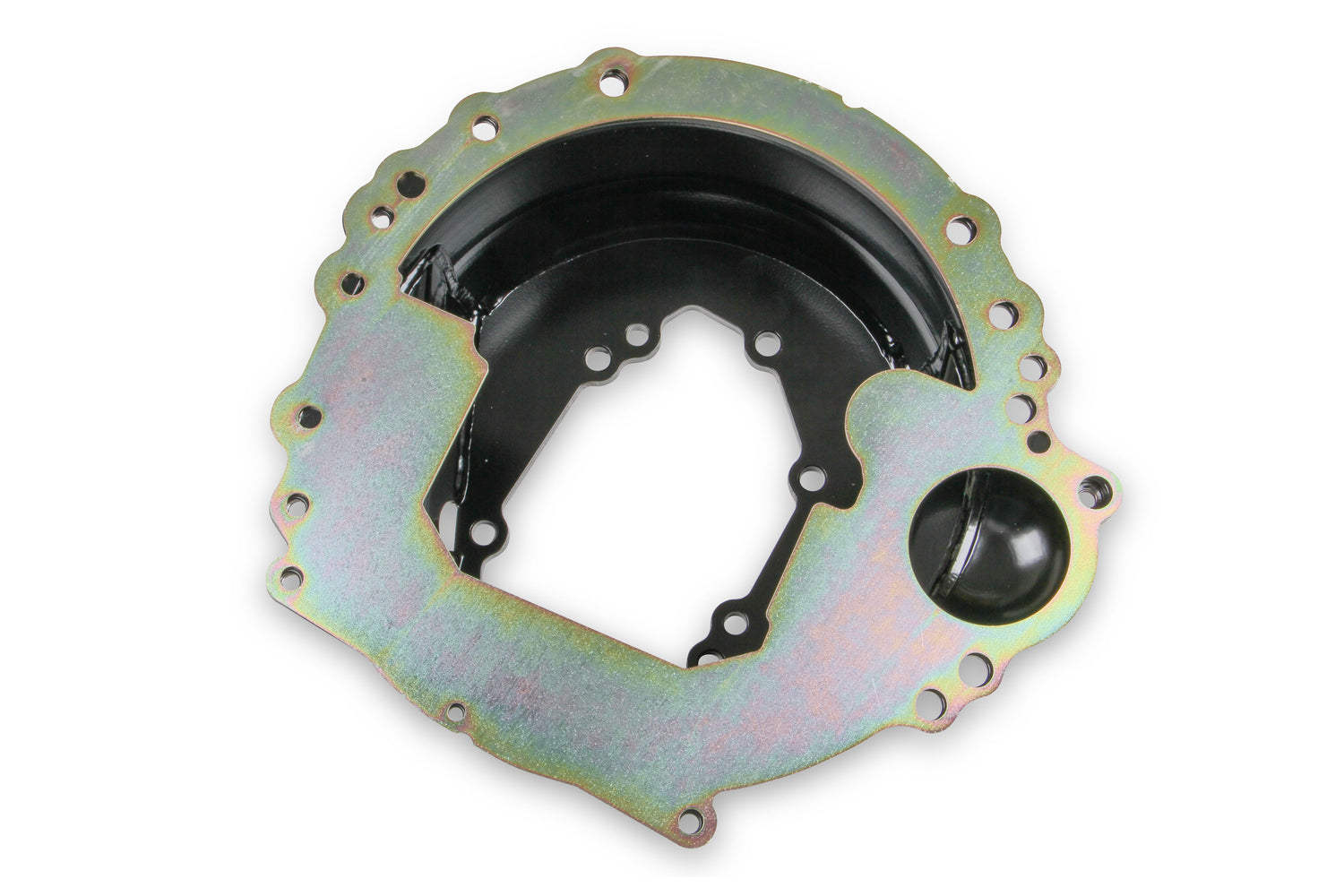

This lightweight Quick Time steel bellhousing fits Mazda MX5 to Sadev sequential manual transmission.

Features and Benefits

• Designed for use with Sadev sequential manual transmission
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel â€" Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

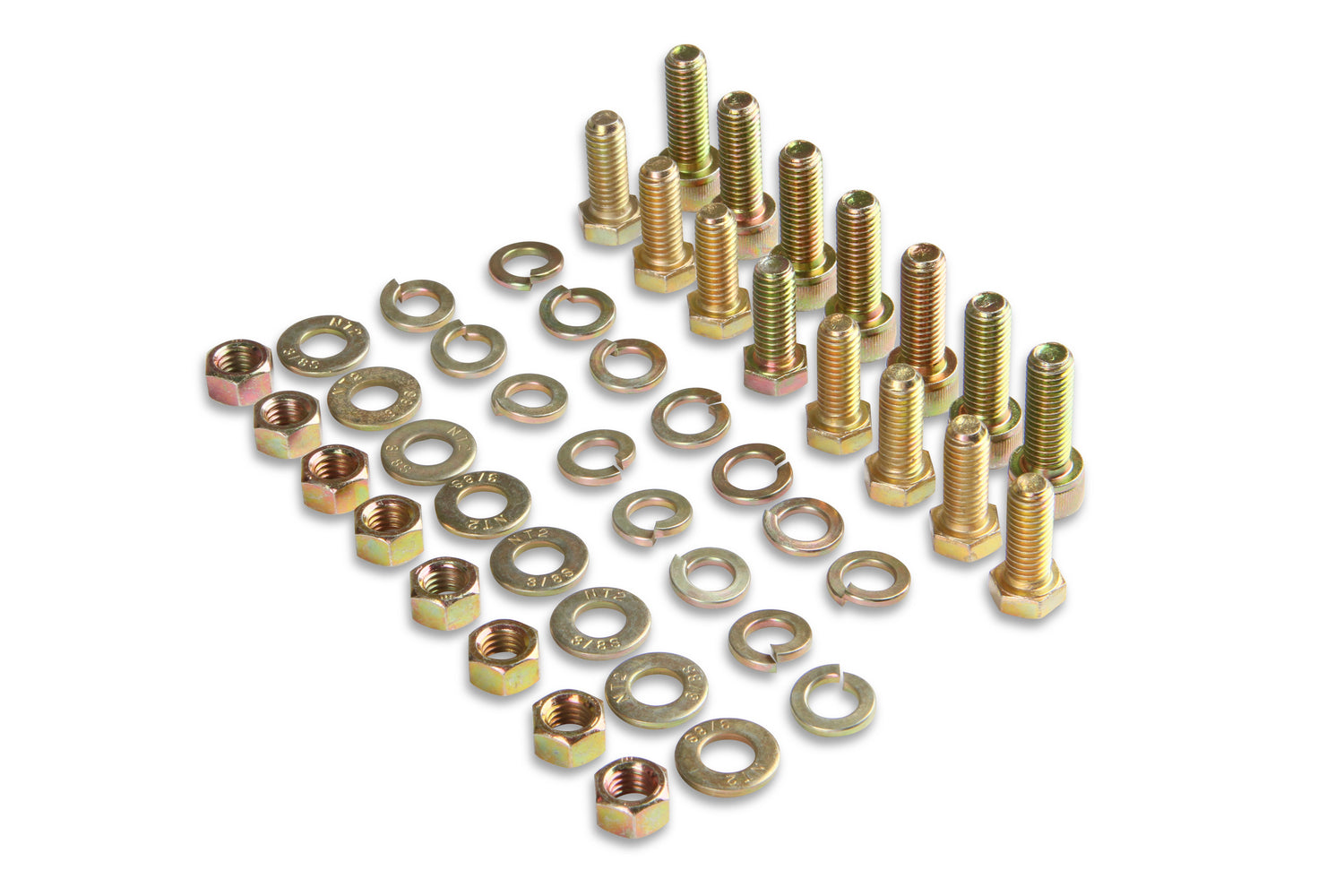

Full Engine Plate and Grade 8 Bolts Included

Specifications

Brand	Quick Time
Category	Transmission
Certification	6.1 SFI
Clutch	7.25" Clutch Disc
Clutch Diameter	7.25 inch
Clutch Operation	Hydraulic
Color	Black
Emission Code	5
Engine Family	Mazda 20B
Engine Make	Mazda
Engine Plate	RM-4091-C
Finish	Semi-gloss
Flywheel	125 Tooth
Make	Mazda
Material	Steel
part type	Transmission Bell Housing
Patented	yes
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
SFI Certified	Yes
Starter	OE
Sub Category	Transmission Hard Parts
Trans Bore Diameter	N/A
Transmission	Sadev Sequential
Transmission Bore	N/A
Transmission Type	Manual
Warranty	Manufacturer's Limited 90 Day Warranty
Weight	20 lbs
