Pulsar Turbo Systems | SKU: PULSAR115

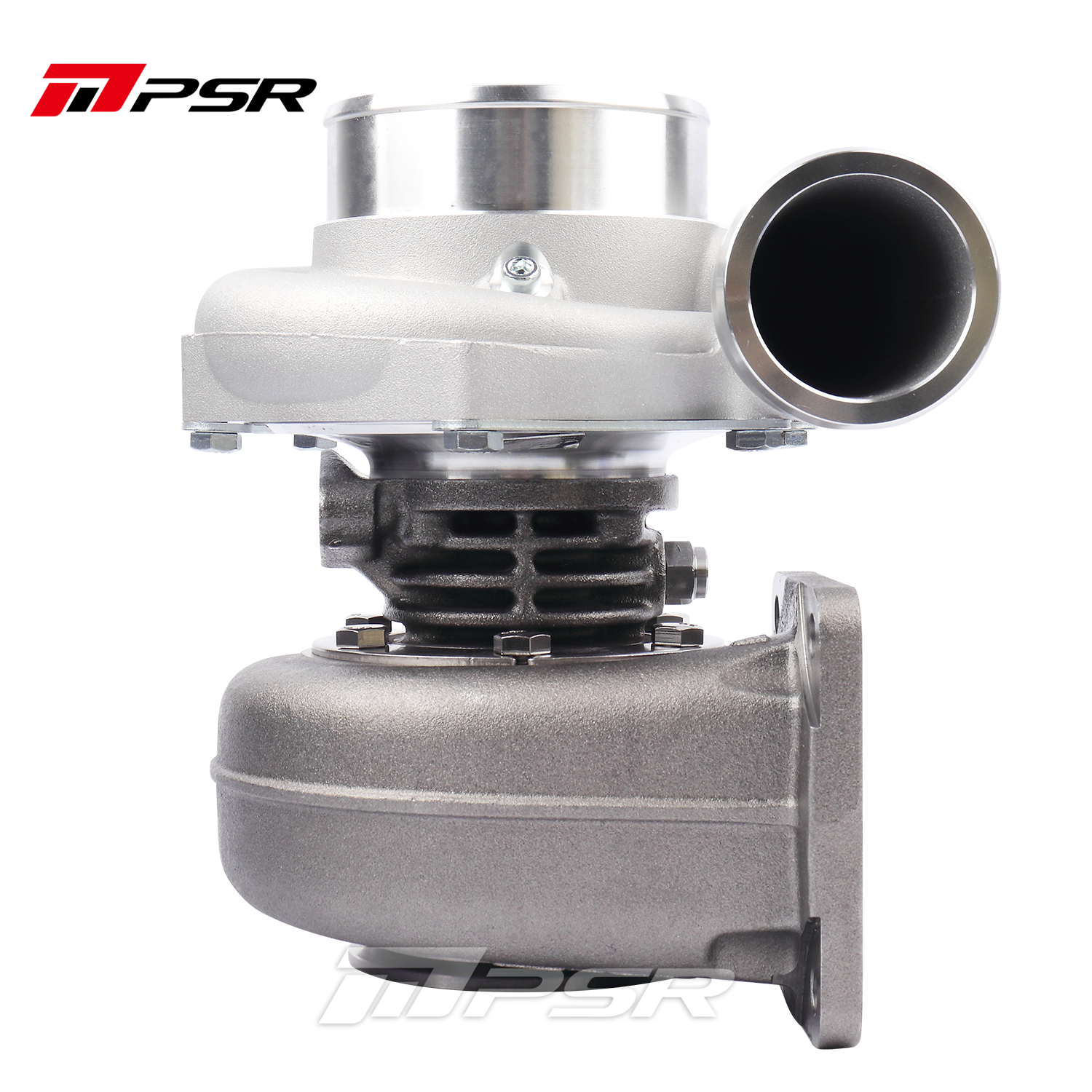

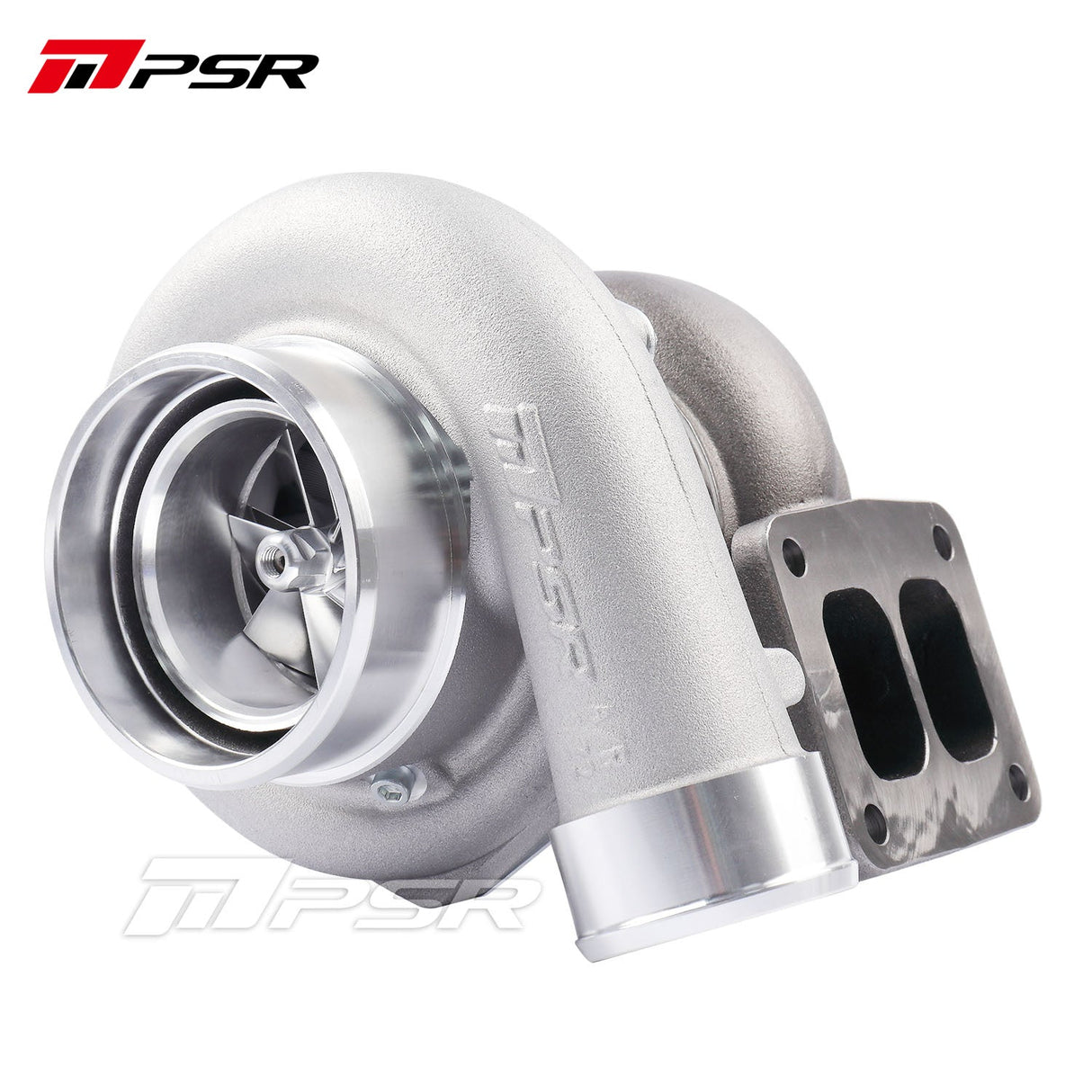

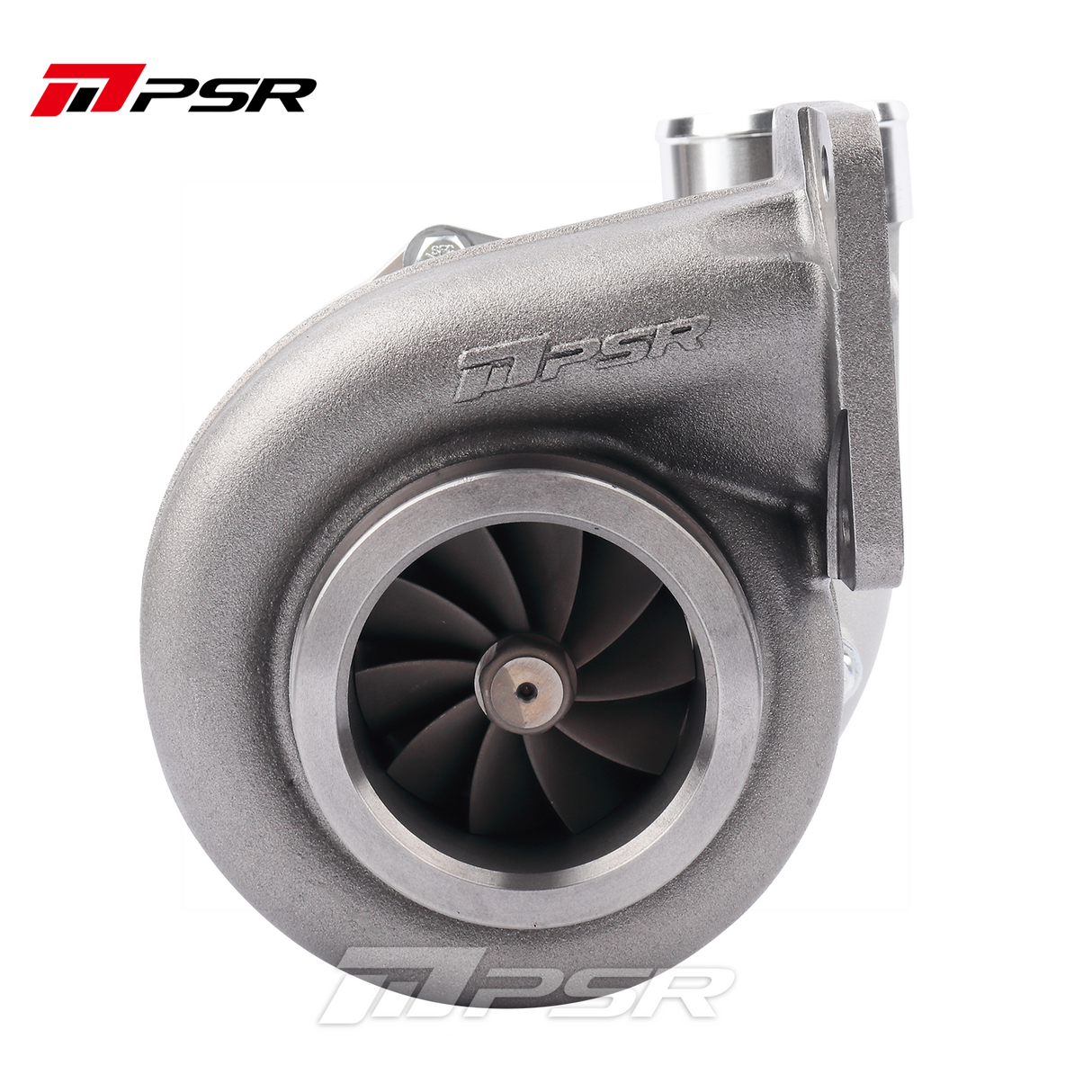

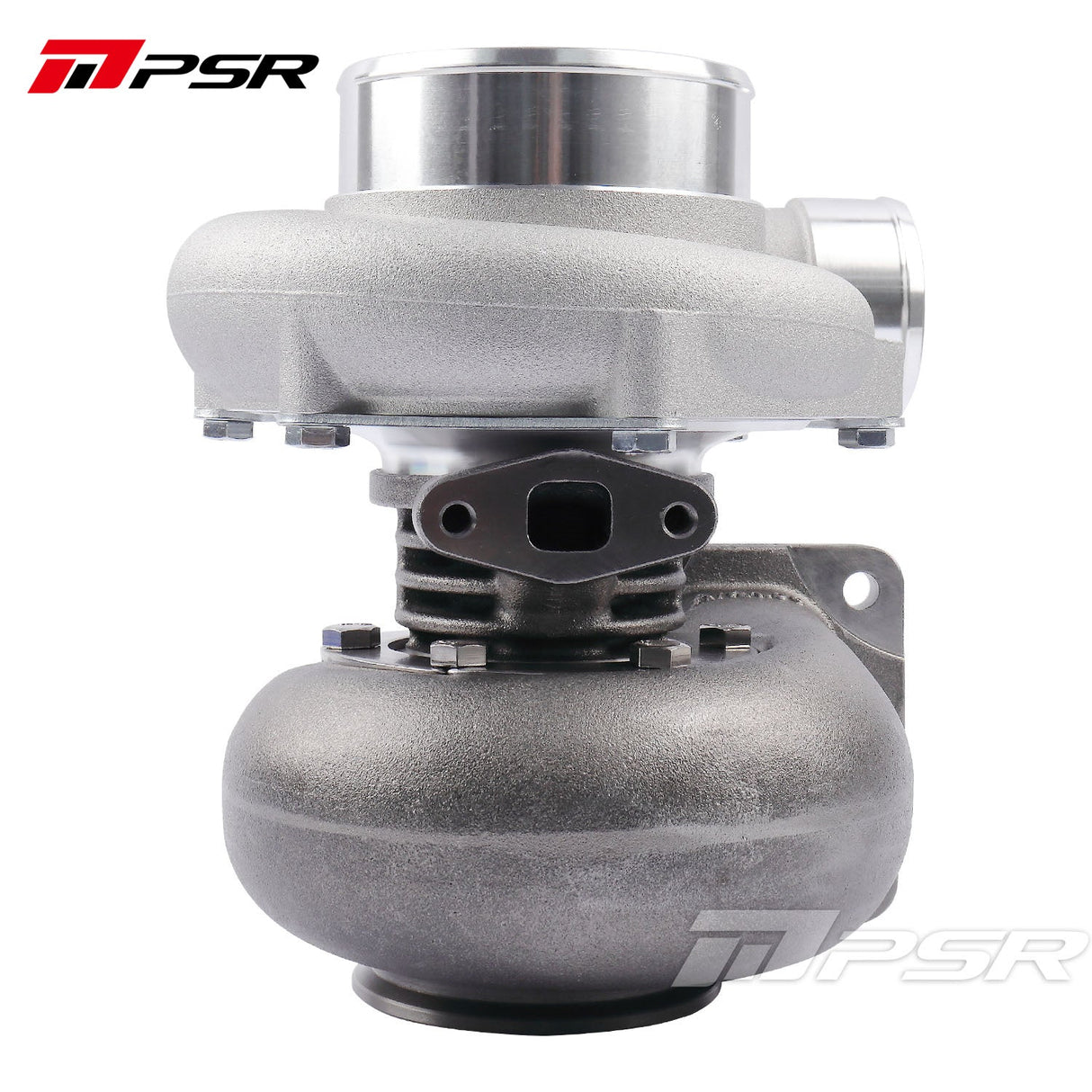

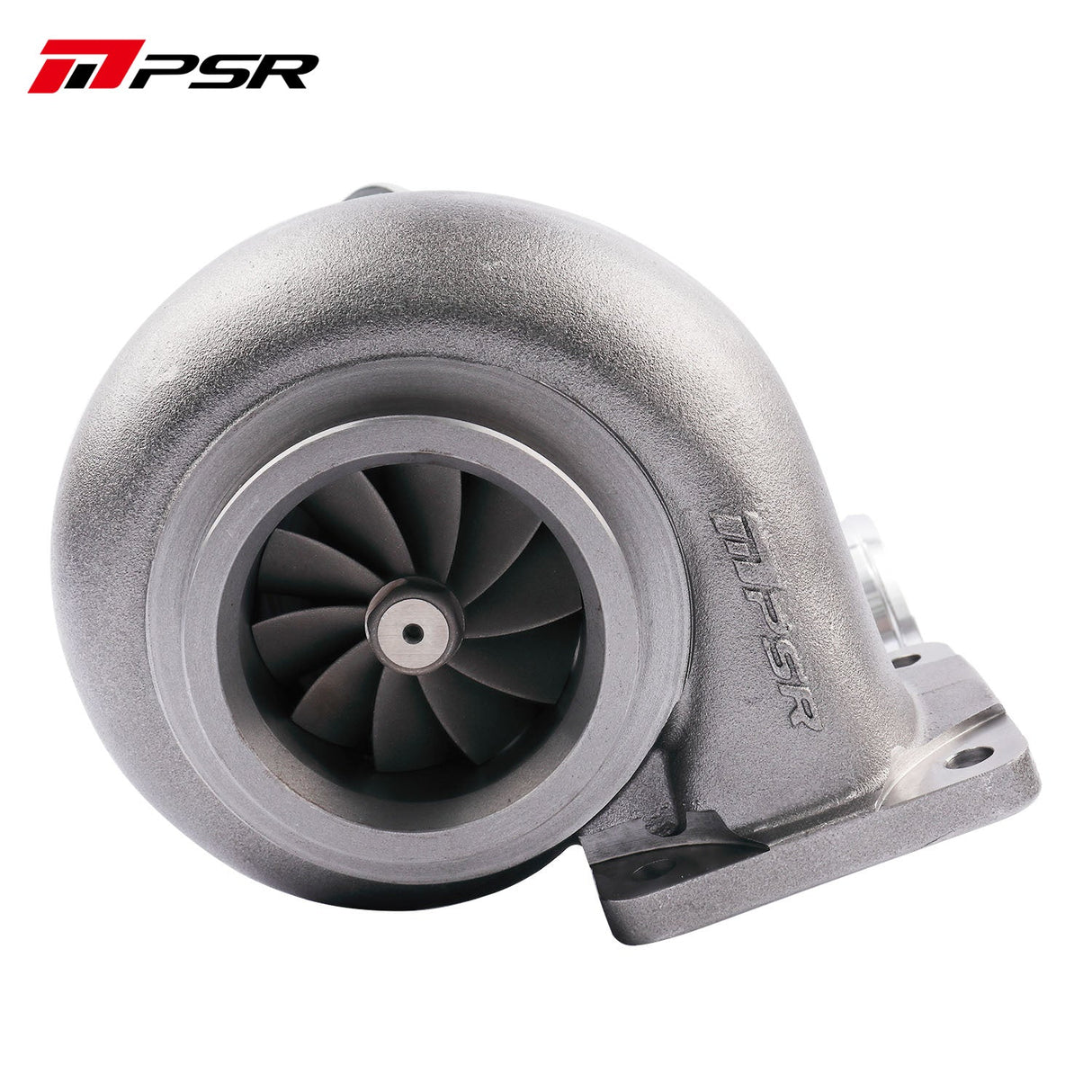

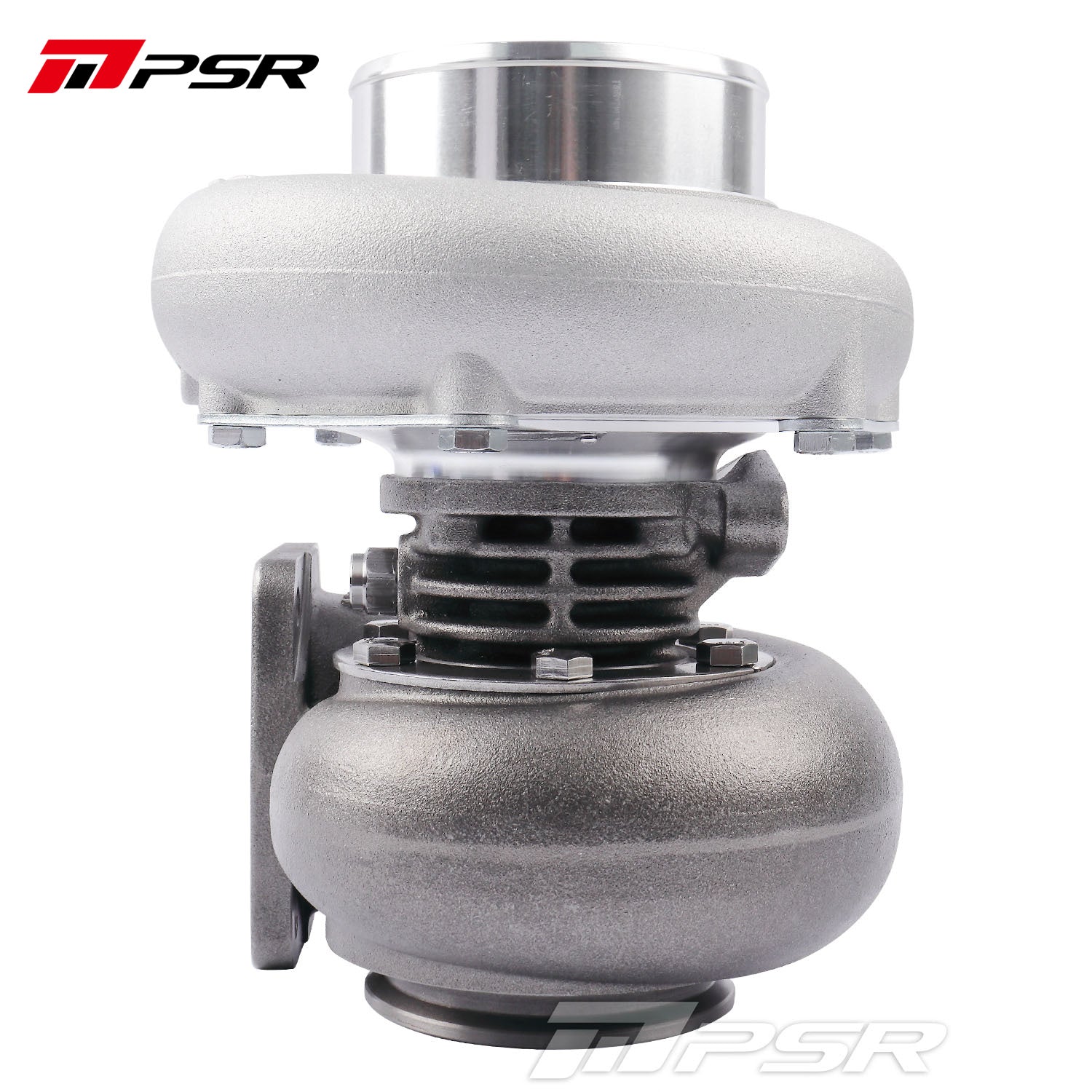

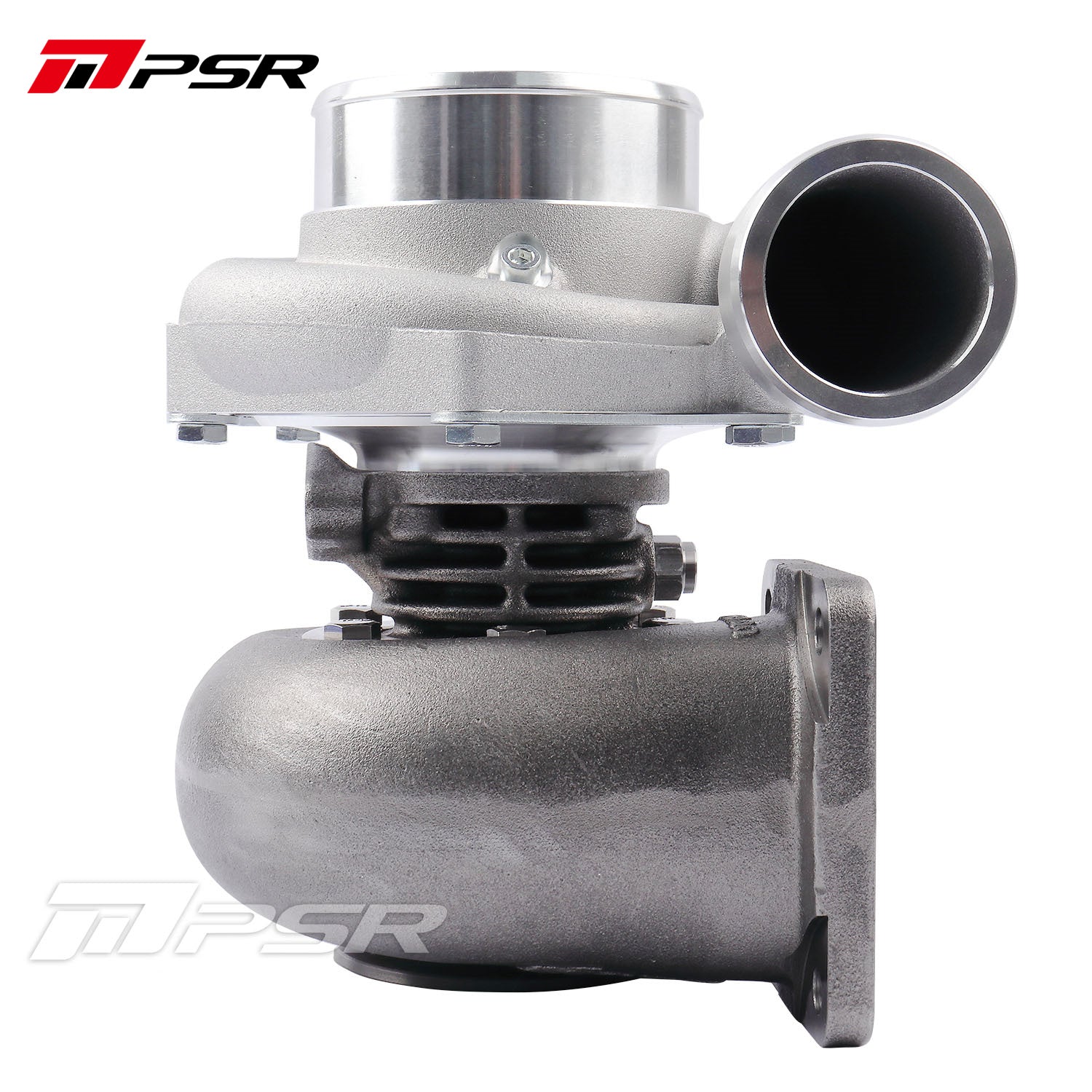

Pulsar 6870E Ball Bearing Turbo UP to 1100HP

Name: Pulsar 6870E Ball Bearing Turbo UP to 1100HP
Brand: Pulsar Turbo Systems
SKU: PULSAR115
Price: 1858.5 NZD
Availability: InStock

$1,858.50 NZD + GST

Shipping calculated at checkout.

Compressor Housing Option

Standard

Turbine Housing Option

T4 Divided VBand Outlet 1.0 A/R T4 Open VBand Outlet 0.81 A/R W/O Turbine Housing

Product variants

Pulsar 6870E Ball Bearing Turbo UP to 1100HP - Standard / T4 Divided VBand Outlet 1.0 A/R is not in stock at Fast Lane Spares and will ship direct from supplier

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

2Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
V-Band Flange kit for the exhaust housing included
Max Engine Horsepower: 1100

Description

Billet Compressor Wheel: 68/92.46mm, 7+7 Blade
Turbine Wheel: 78.8 / 70.2mm, 10 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose

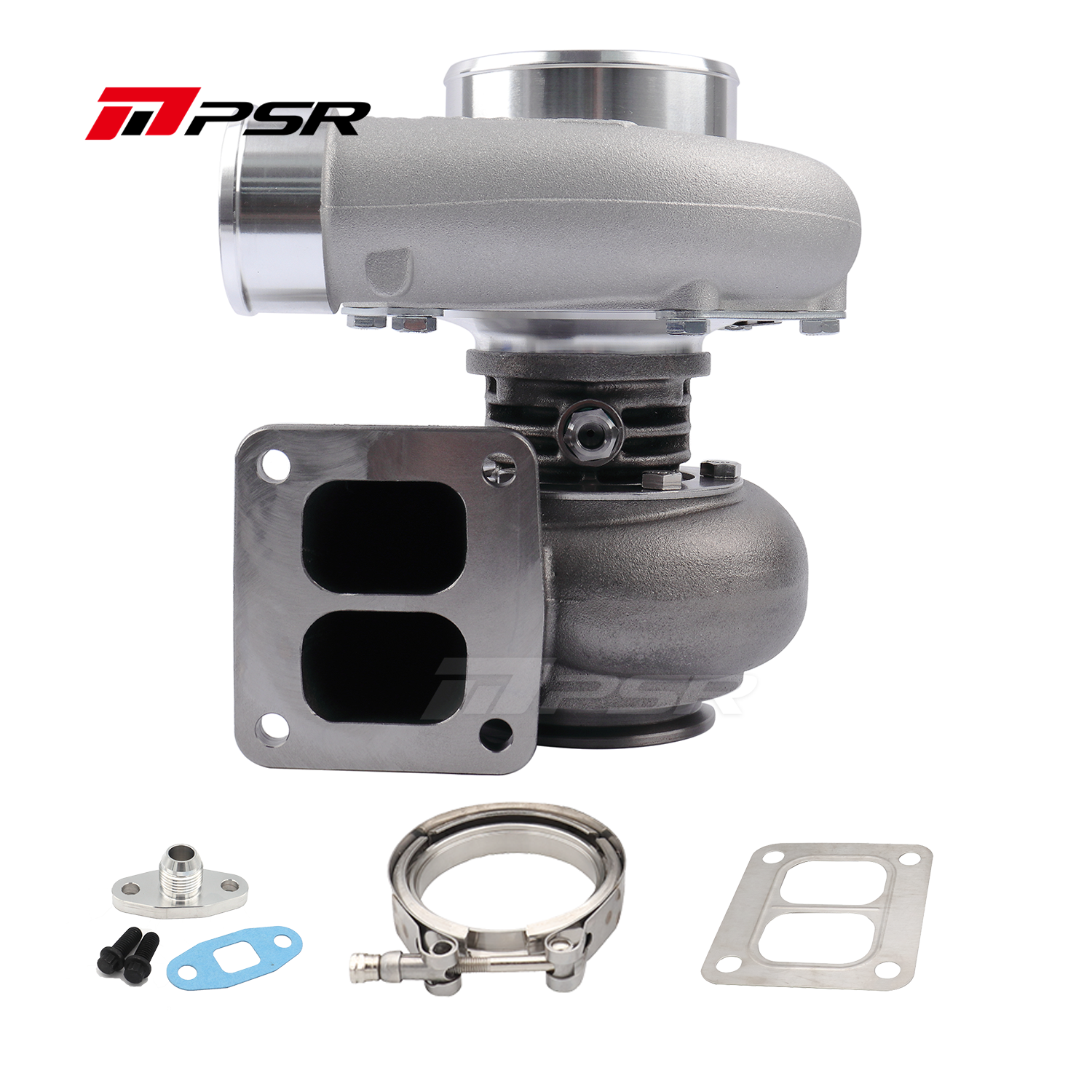

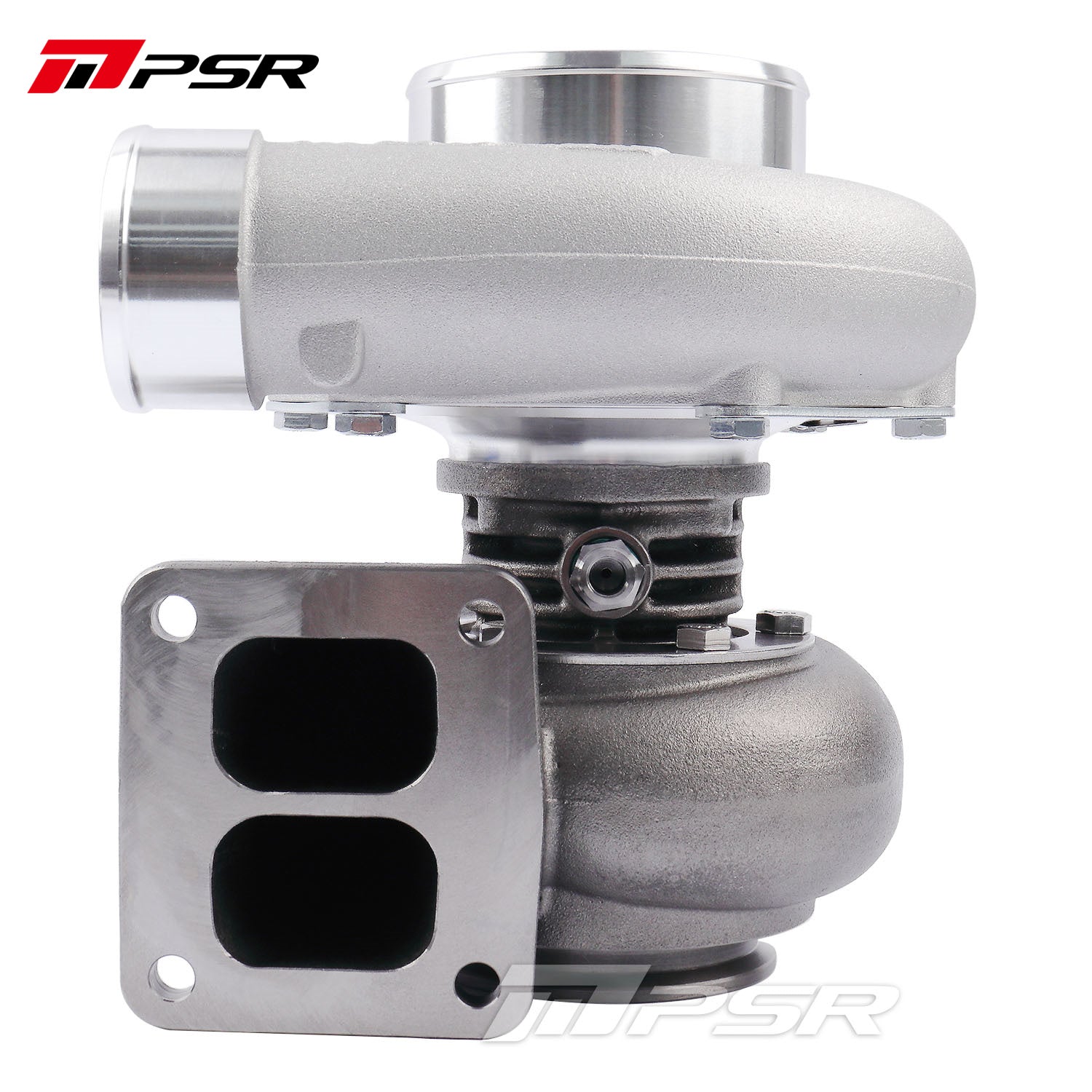

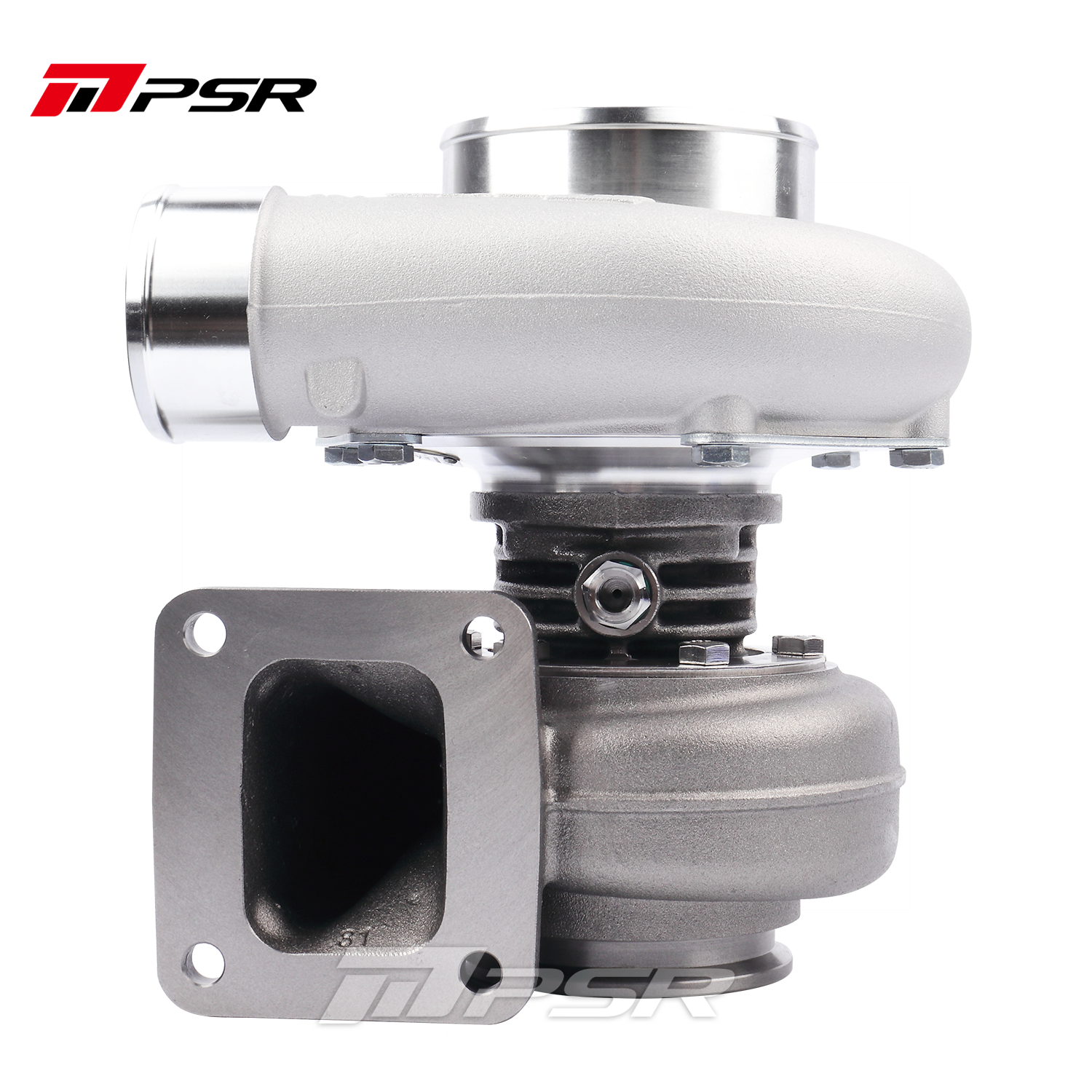

Turbine Housing: T4 Divided 1.0A/R, T4 open 0.81A/R(Coming Soon)
The internal oil feed port is 0.9mm(Oil restrictor is no needed)
Oil feed fitting: 1/8-27 NPSF (Drawing 1)
Oil drain: T4 flange (Drawing 2)
