Holley EFI | SKU: 554-103

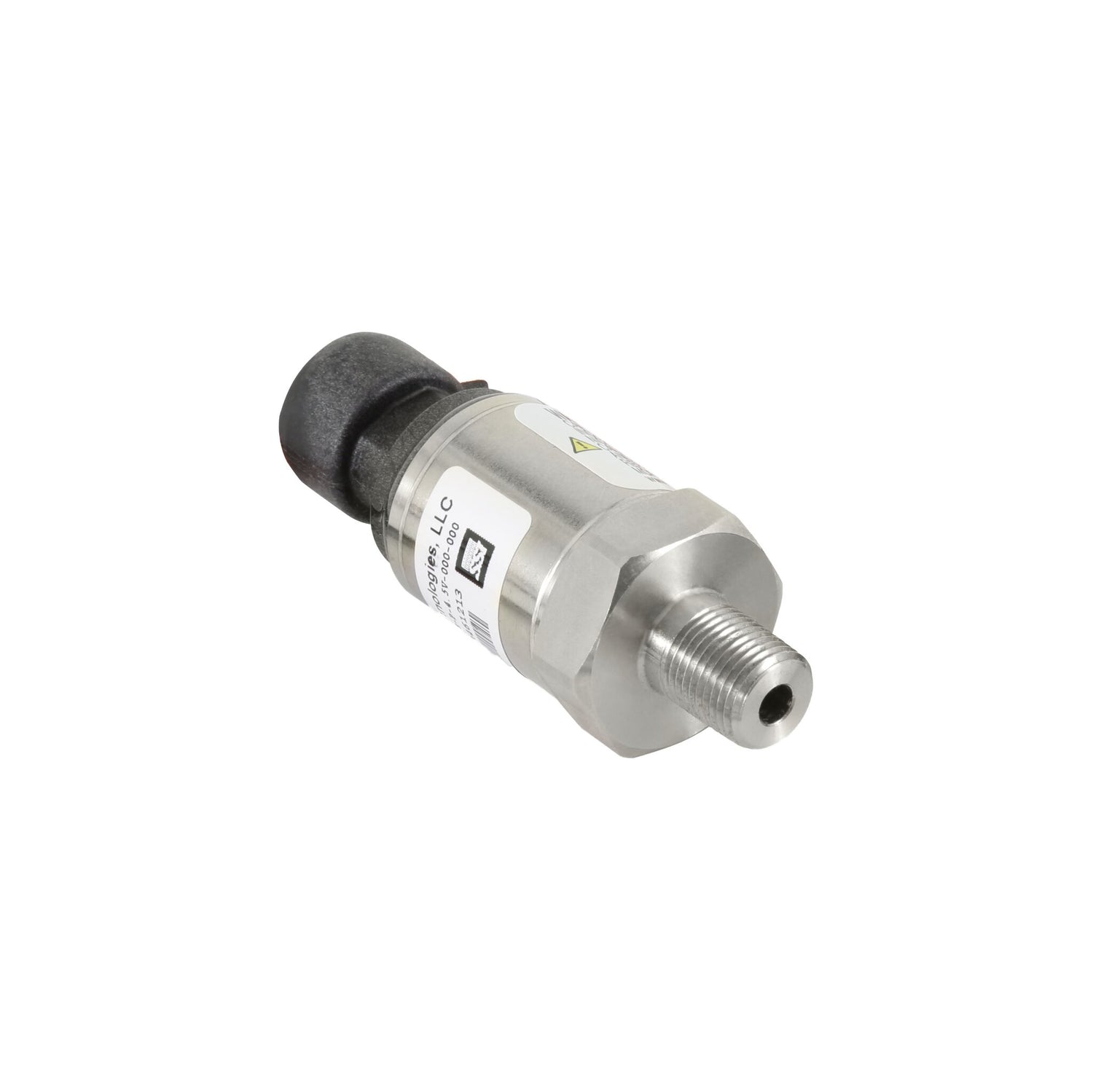

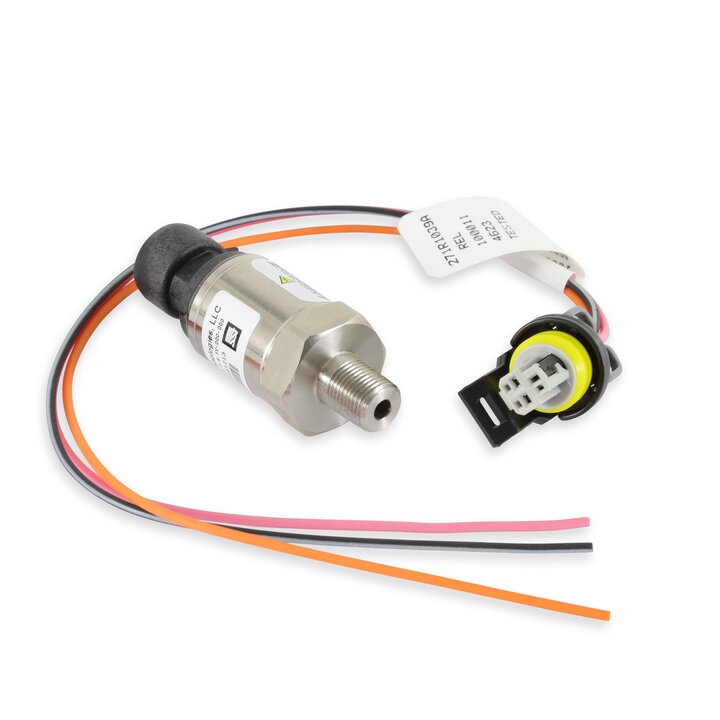

Holley 554-103 Pressure Sensor

Name: Holley 554-103 Pressure Sensor
Brand: Holley EFI
SKU: 554-103
Price: 416.00 NZD
Availability: InStock

0-200 PSI Range

$416.00 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

0-200 PSI Range

Part Number: 554-103

Preconfigured for use in Holley HP and Dominator systems.

Features and Benefits

• Stainless steel construction
• 0-200 PSI range
• Linear voltage output of 0.5V - 4.5V

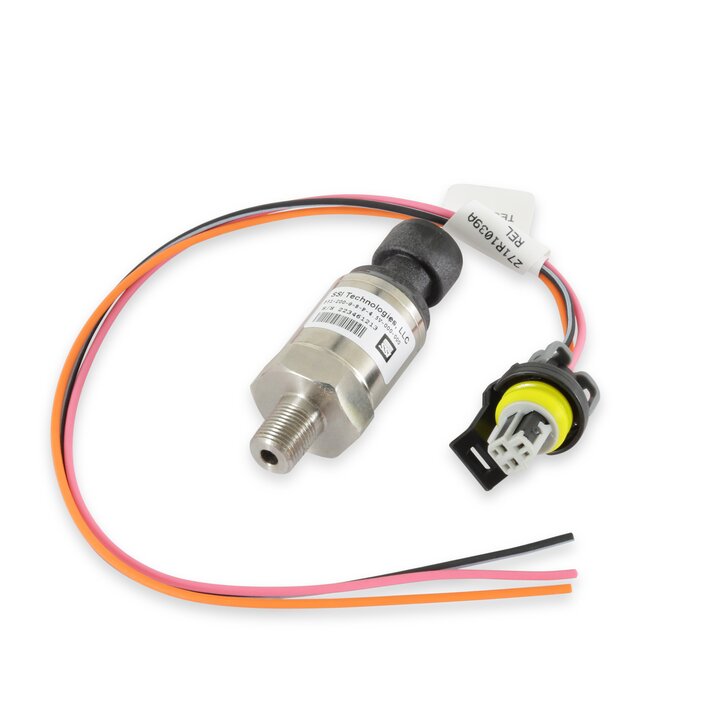

• Includes pigtail connector for custom configurations

Not recommended to directly mount directly into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.

Specifications

Body Diameter	.875"
Body Length	2.558"
Brand	Holley EFI
Category	Air and Fuel Delivery
Connector Gender	Male
Connector Quantity	1
Emission Code	5
Fuel System Type	EFI
Grade Type	Performance
Inlet Size	1/8 inch NPT
Linear voltage output	.5 - 4.5 Volts
Material	Stainless Steel
Maximum Pressure Reading	200 PS
Mount Type	Screw-In
part type	Fuel Injection Pressure Sensor
Pressure Range	0-200 PSI
Product Type	Pressure Senser - Transducer
reference voltage required	5 Volts
Sub Category	Sensors
Terminal Gender	Female
Terminal Quantity	1
Threaded End Diameter	1/8-27 NPT IN
Warning	California Proposition 65
