Holley EFI | SKU: 554-102

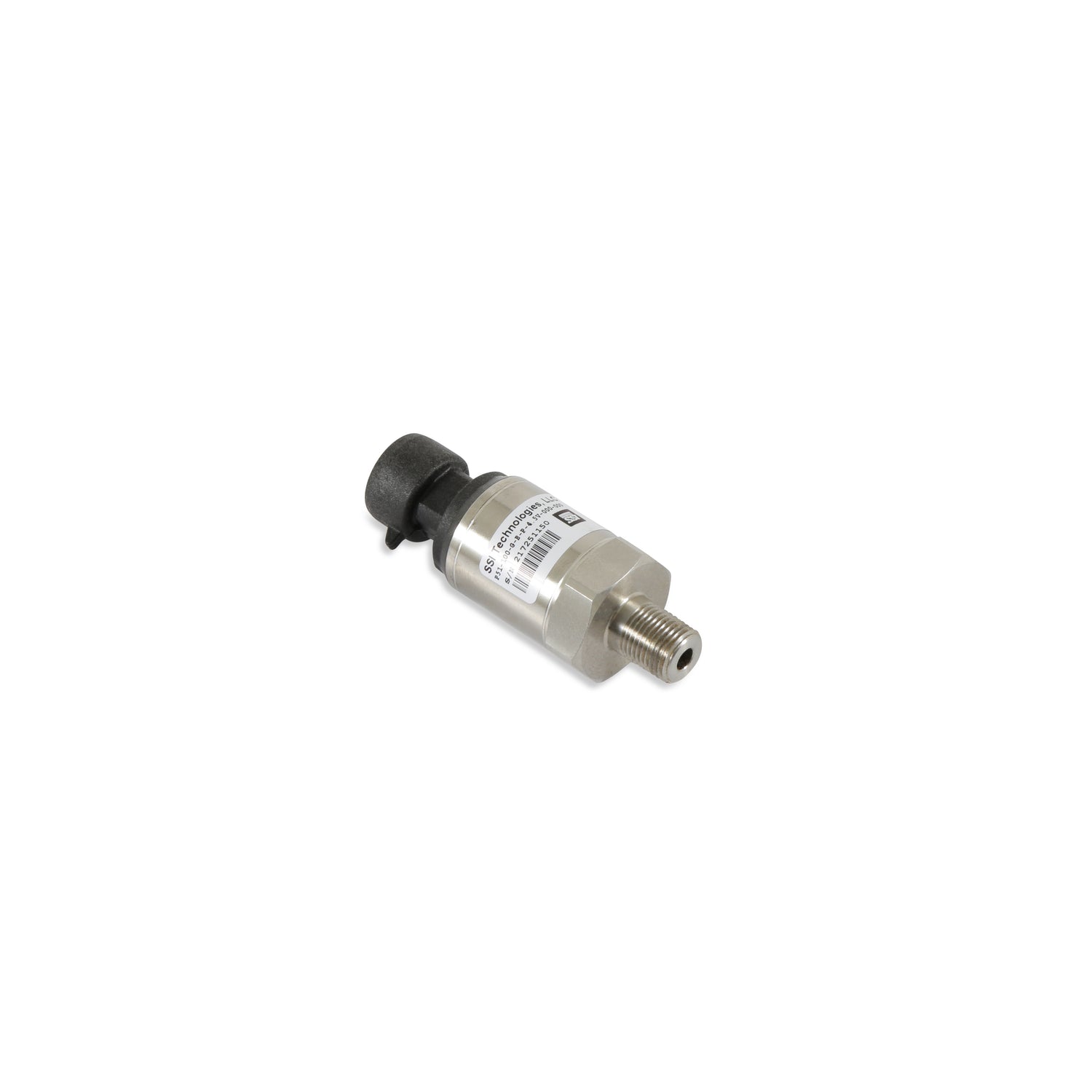

Holley 554-102 Pressure Sensor

Name: Holley 554-102 Pressure Sensor
Brand: Holley EFI
SKU: 554-102
Price: 292.50 NZD
Availability: InStock

0-100 PSI Range

$292.50 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

0-100 PSI Range

Part Number: 554-102

Plug and play for Holley Avenger, HP, and Dominator ECU fuel and oil pressure inputs.

Features and Benefits

• Plug and play for both fuel and oil pressure inputs with Holley EFI systems
• Stainless steel construction
• Linear voltage output of 0.5V - 4.5V
• Includes pigtail connector for custom configurations

Not recommended to directly mount directly into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.

Specifications

Body Diameter	.875"
Body Length	2.558"
Brand	Holley EFI
Category	Air and Fuel Delivery
Connector Gender	Male Female
Connector Quantity	1
Emission Code	5
Fuel System Type	EFI
Grade Type	Performance
Inlet Size	1/8" NPT
Linear voltage output	.5 - 4.5 Volts
Material	Stainless Steel
Maximum Pressure Reading	100 PS
Mount Type	Screw-In
part type	Fuel Injection Pressure Sensor
Pressure Range	0-100 PSI
Product Type	Pressure Senser - Transducer
reference voltage required	5 Volts
Sub Category	Sensors
Terminal Gender	Female
Terminal Quantity	1
Threaded End Diameter	1/8-27 NPT IN
Warning	California Proposition 65
