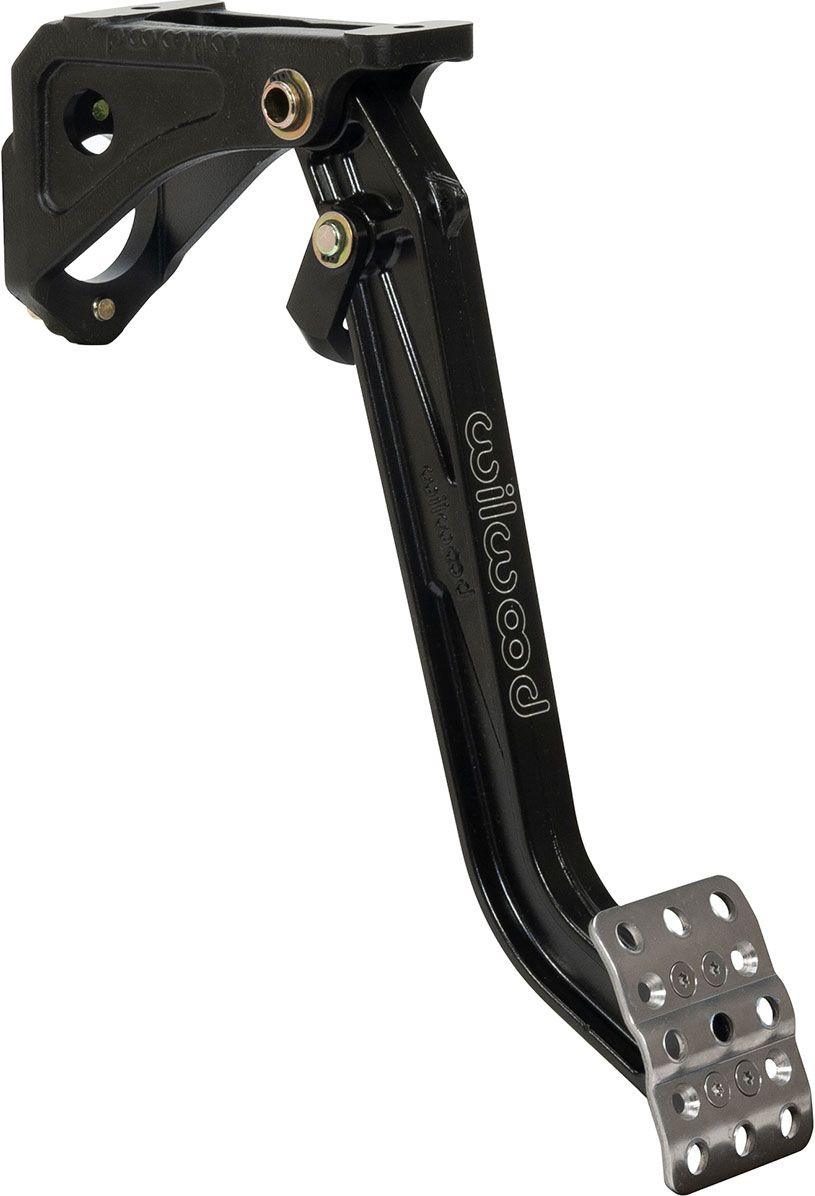

Wilwood Forward Swing Pedal Assembly (WB340-13834)

This swinging mount pedal assembly mounts a single brakeor clutch master cylinder in aforward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged7:1 ratio pedal Arm. The non-skid waffled pedal pad canbe laterally adjusted for driver preference or clearanceas necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange mastercylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.

Caution: To use this pedal with a horizontal mount flangetandem outlet master cylinder,order adapter kit part number 250-3677.

Caution: Four wheel brake systems require a two circuit,tandem outlet master cylinder.Single outlet master cylindersshould not be used for those applications
