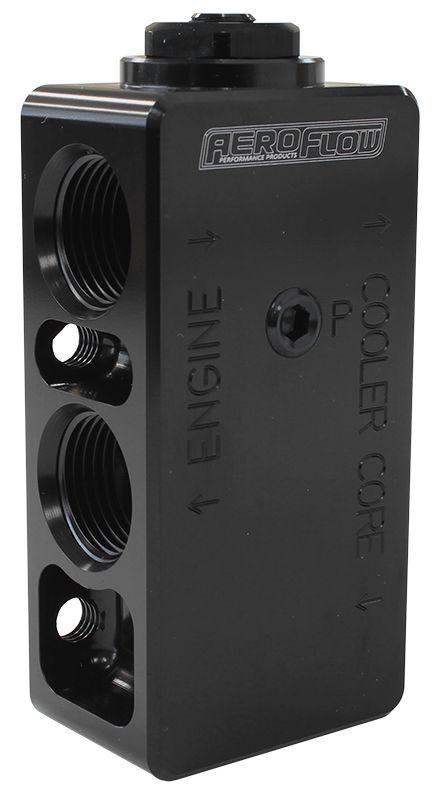

Aeroflow Billet Aluminium Oil Thermostat (AF64-4111)

AF64-4111 - Billet oil thermostat -10ORB

4 x -10 ORB ports, 1/8" NPT Port

Part Number: AF64-4111

Perfect for use with Aeroflow oil coolers, this Billet Aluminium thermostat helps maintain engine oil temperature by holding the oil until it reaches operating temperature at (82°C) 180°F when the thermostat is fully open to allow full flow to the oil cooler. It will self-adjust flow according to the oil temperature to maintain a constant operating oil temperature just like a coolant thermostat would operate.
The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features four labelled inlets and outlets -10AN ORB ports provided for plumbing the engine oil to and from the sandwich adapter and the oil cooler. Two 1/8" NPT ports and plugs are provided for auxiliary sensors.
To run this product correctly a sandwich plate adapter or block head adaptor must be installed onto engine to allow the lines to run to the external oil cooler. Use Aeroflow Performance products such as AF64-2108 oil cooler sandwich plate, AF64-2060 sandwich adapter.

Specifications: Dimensions:
Overall Length: 50mm
Overall Width: 34.70mm
Overall Height: 107.20mm
Centre to Centre of Engine Side -10ORB Ports: 38.30mm
Centre to Centre of Oil Coler Side -10ORB Ports: 58.60mm
- Start to open @ 71°C (160°F)
- Fully open @ 82°C (180°F)
- 3 x M8 x 1.25mm Mounting Holes
