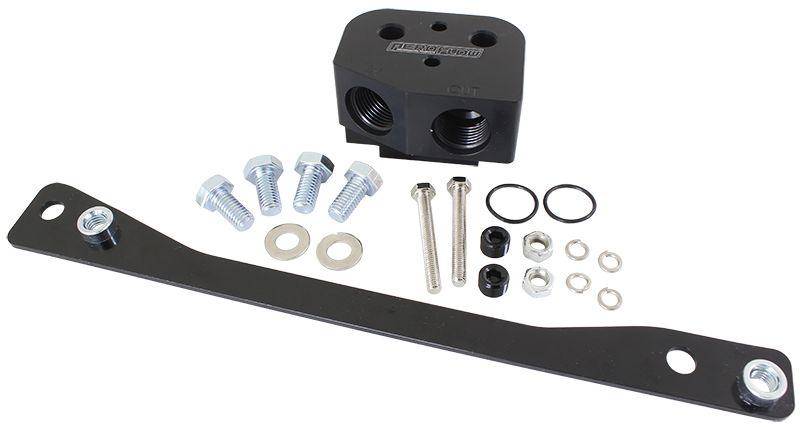

Aeroflow Oil Cooler Adapter (AF64-2114BLK)

Billet LS Oil Cooler Adapter.

Now you can bolt on oil coolers and redirect your engine oil with these LS oil cooler adapters. AF64-2114BLK is designed to bolt directly in place of the factory bypass cover on front sump LS Chevy engines (VT-VZ Commodore and Pontiac GTO should use extension AF64-2184BLK to clear the engine block) allowing you to run an oil cooler. This adapter features 2x Female -8 ORB ports and 2x 1/8" NPT ports for running temp or pressure gauges or an oil feed line fora turbocharger or supercharger. The main body ismade from billet 6061 aluminium, then anodised blackfor great looks and corrosion resistance. Included with thiskit is a billet bracket designed to help relocate the power steering line into a better location to allow room for this adapter.

For rear sump applications use part number AF64-2084BLK.
