Aeroflow Nissan SR20 2 Bolt Main Stud Kit 12 Point Nuts and 8740 Grade Material (AF37-2235)
12 Point Nuts and 8740 Grade MaterialNISSAN SR20 MAIN STUD KIT
12 Point Nuts and 8740 Grade Material
Part Number: AF37-2235
Aeroflow Performance main studs are designed to keep your main caps in placed and stop them walking and fretting which can lead to engine failure. These studs are preferred over bolts as they allow you to obtain more accurate torque readings.
These main studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.
Specifications:

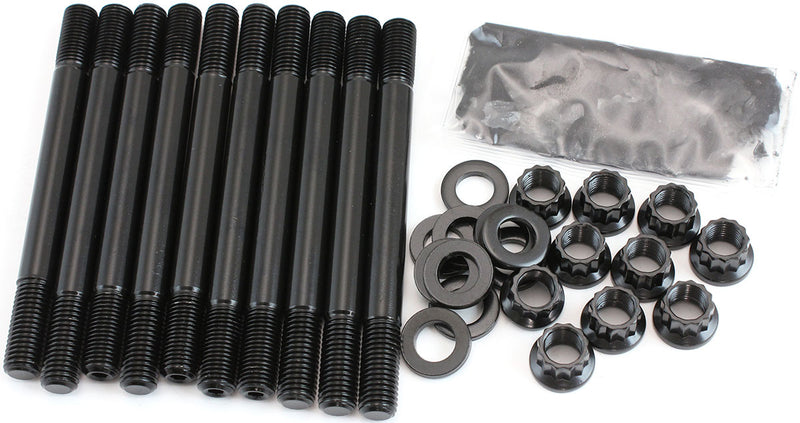

Kit Contains
10 x Studs
M11 x 1.50mm Thread on Engine Block
7/16"-20 Thread on Nut End
128.75mm Overall Length
75.90mm Shank Length
11mm Shank Diameter
26.20mm thread into Engine Block
24.20mm thread on Nut End
10 x 12 Point Nuts
7/16"-20 Thread
18.30mm Outside Diameter
11.70mm Height
1/2 Spanner Size
10 x Flat Washers
20mm Outside Diameter
11.10mm Inside Diameter
3mm Thickness
80ft.lbs (108Nm) Torque Setting
Important Information:
Torque Recommendations
80 ft.lbs or 108Nm
