Link RACEPAD - Steering Wheel CAN Keypad

Part Number: 101-0332

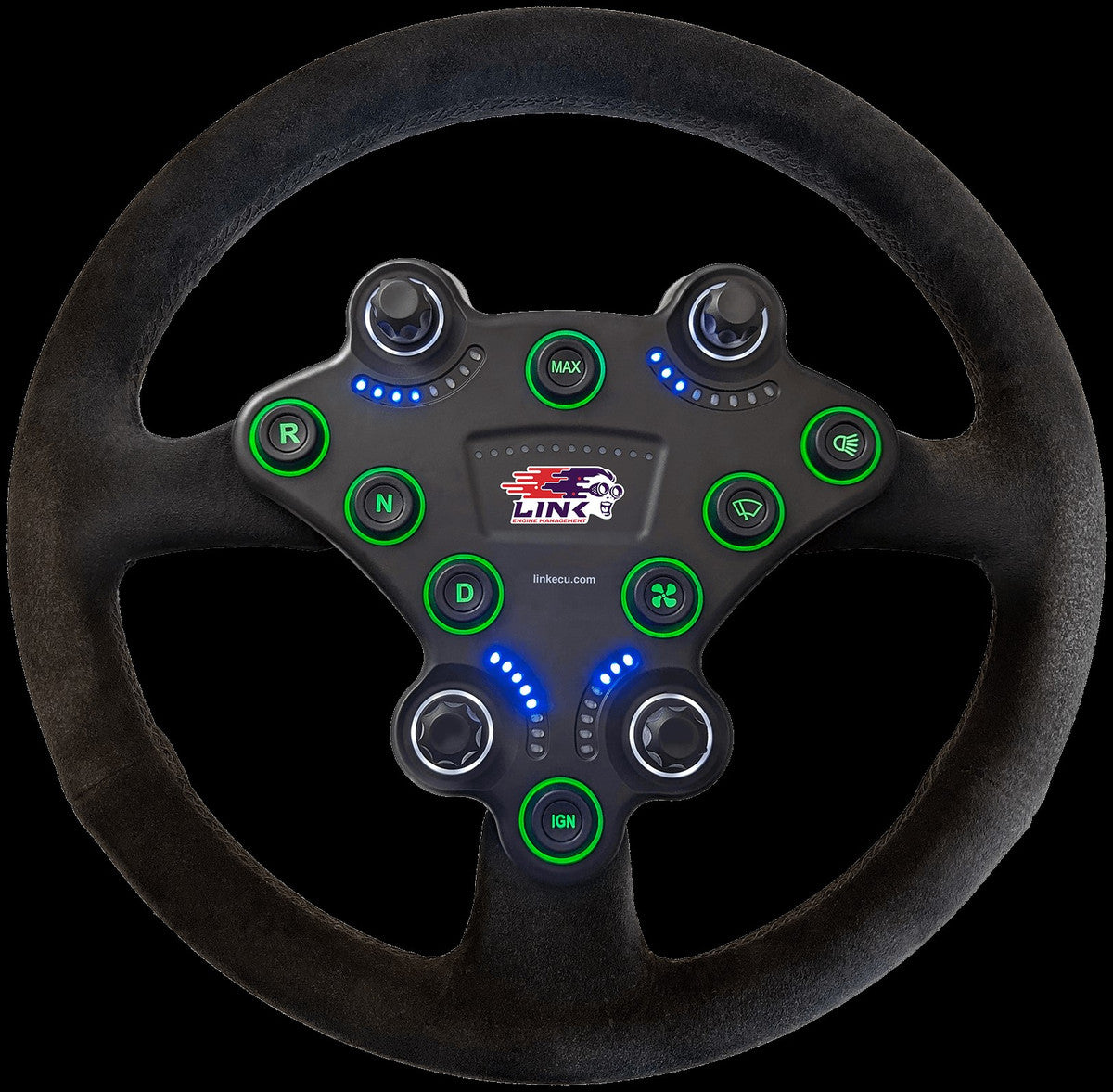

RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level. With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.

See features tab for more info

Box Contents:
1 x RACEPAD (steering wheel is not included)

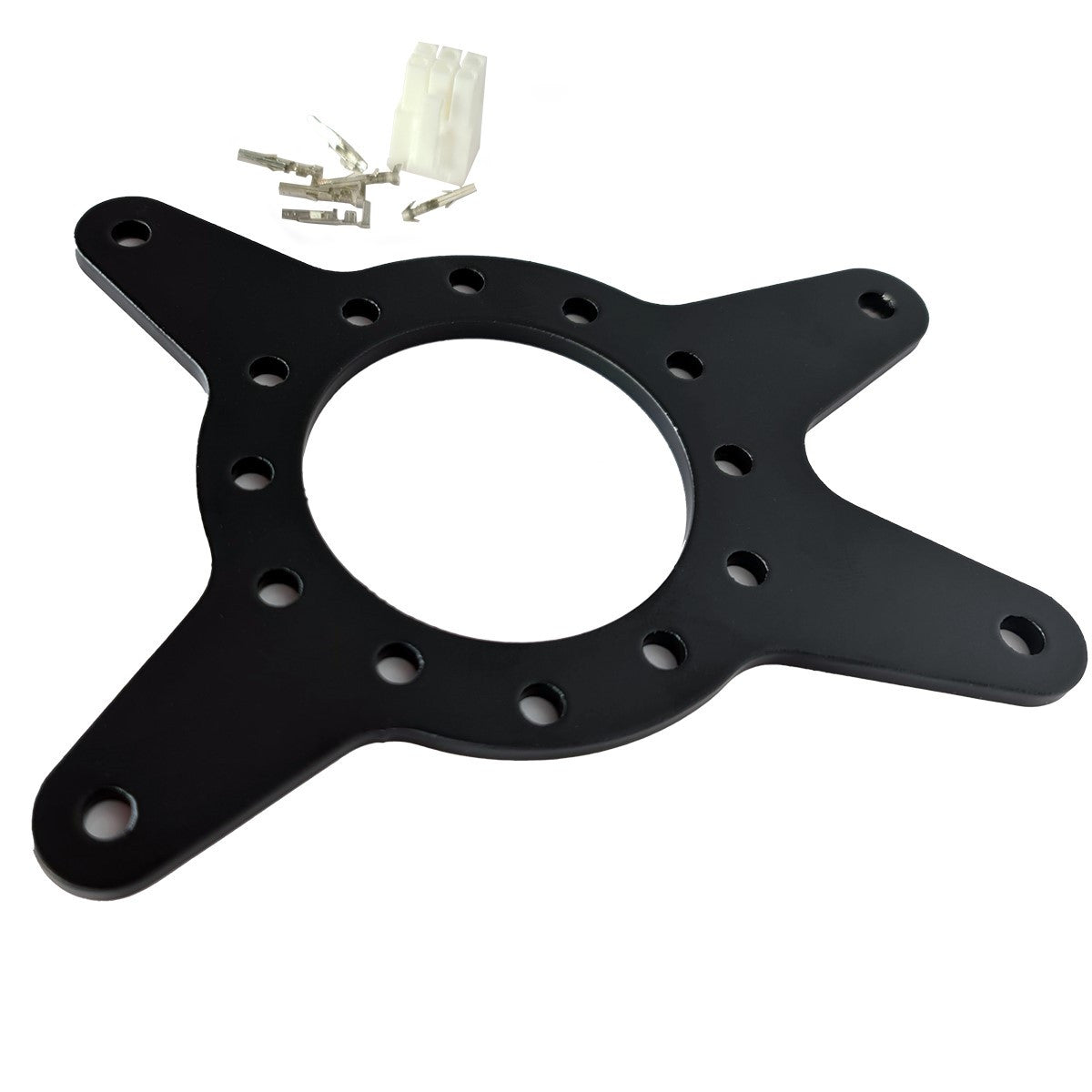

1 x Mounting Bracket
1 x DTM4 Mating Connector Kit

1 x Molex Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo

Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

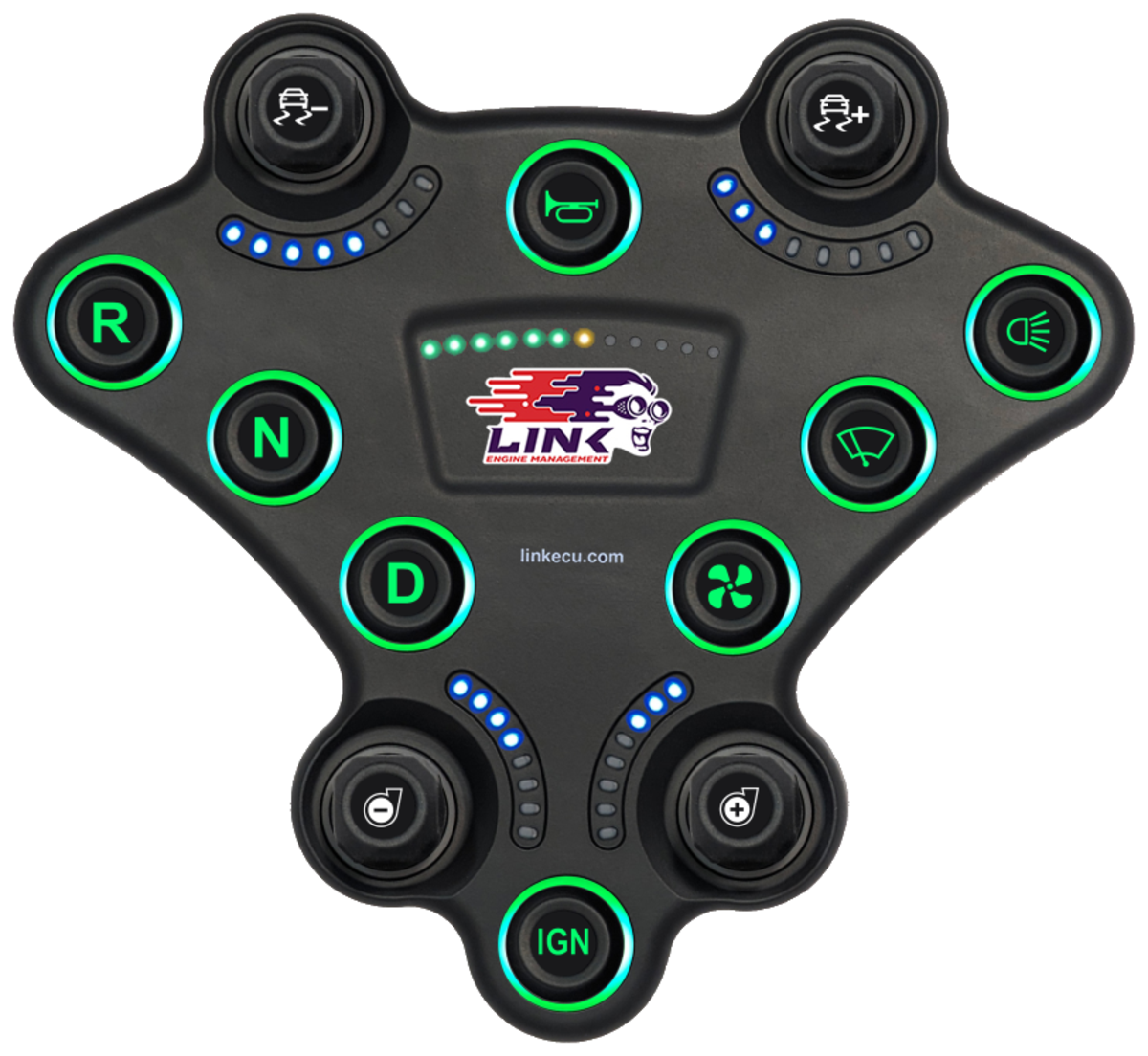

• 8 Backlit Buttons and 4 Rotary Knobs
• 4 Analogue Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button
  LED backlight colour, individual button indicator ring
  colour, programmable to show change in status, flashing
  option, multiple modes including momentary, latched
  and toggle
• 8 Blue LED Lights on Rotary Encoders while all 8
  Pushbuttons Buttons have customisable RGB LED Rings
• CAN Bus Communication back to Engine Management
  System
• Compatible with all G4X and G5 ECUs
• Customizable Button Inserts – The replacement system
  for individual inserts makes modifying the keypad layout
  simple and economical
• 12 Fixed LEDs in centre can be used for configurable
  feedback – RPM etc.
• Includes mounting plate adapter to support
  common aftermarket steering wheel bolt patterns
  including MOMO (6x70mm) and Nardi (6x74 mm)
• DTM4 Connector for CAN and Power, Molex Connector
  for Analog Inputs

Specifications

• 8 Backlit Buttons and 4 Rotary Knobs
• 4 Analogue Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button
  LED backlight colour, individual button indicator ring
  colour, programmable to show change in status, flashing
  option, multiple modes including momentary, latched
  and toggle
• 8 Blue LED Lights on Rotary Encoders while all 8
  Pushbuttons Buttons have customisable RGB LED Rings
• CAN Bus Communication back to Engine Management
  System
• Compatible with all G4X and G5 ECUs
• Customizable Button Inserts – The replacement system
  for individual inserts makes modifying the keypad layout
  simple and economical
• 12 Fixed LEDs in centre can be used for configurable
  feedback – RPM etc.
• Includes mounting plate adapter to support
  common aftermarket steering wheel bolt patterns
  including MOMO (6x70mm) and Nardi (6x74 mm)
• DTM4 Connector for CAN and Power, Molex Connector
  for Analog Inputs

Specifications

Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
Switch Life - 3 million operations
Default Baud Rate - 1000kbit/s
Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
UV Protection - UVB 400 hours
Salt Spray Per - ASTMB117

Weight (Racepad) - 110grams

Dimensions (From front w x h) - 197 x 180mm

Thickness - 36.2mm excluding knob height
