Link ECU | SKU: 109-4000-KIT

Link G4X XtremeX ECU Package

Name: Link G4X XtremeX ECU Package
Brand: Link ECU
SKU: 109-4000-KIT
Price: 3215.00 NZD
Availability: InStock

Includes ECU, loom(s) + sensors

$3,215.00 NZD + GST

Shipping calculated at checkout.

Link G4X XtremeX ECU Package is not in stock at Fast Lane Spares and will ship direct from supplier

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

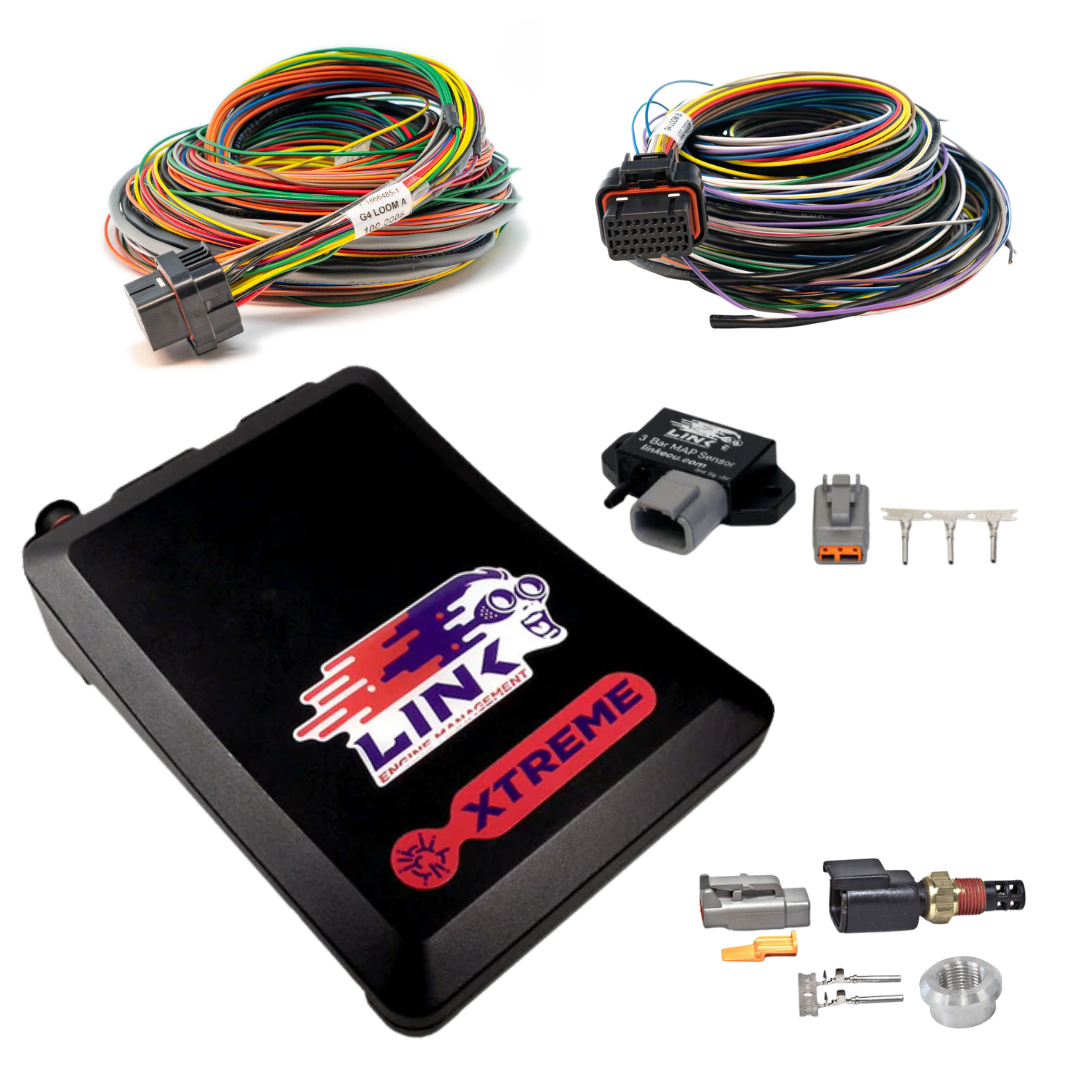

LINK G4X XtremeX Package

This kit includes:

1x LINK G4X XtremeX ECU
1x 2.5M A Loom
1x 2.5M B Loom
1x 3-Bar MAP Sensor (suitable for turbo engines up to approximately 29 PSI of boost - a larger sensor is available upon request) – Bosch
1x Intake Air Temperature (IAT) Sensor – MSEL
1x IAT Weld-On Boss for the IAT Sensor – Aeroflow

The XtremeX has built in E-throttle and all the advanced features including Anti-lag, Cruise Control and Traction Control.
With 8 Injector drives and 8 ignition drives the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsport or more demanding road car applications.

Requires "A" & "B" Looms for installation.

Inputs
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog input
2 x Trigger inputs
2 x Knock inputs
*2 inputs required when using 2nd CAN Bus

Outputs
8 x injection drives
8 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
