Link G4X FuryX ECU Package
Includes ECU, loom(s) + sensorsStock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.

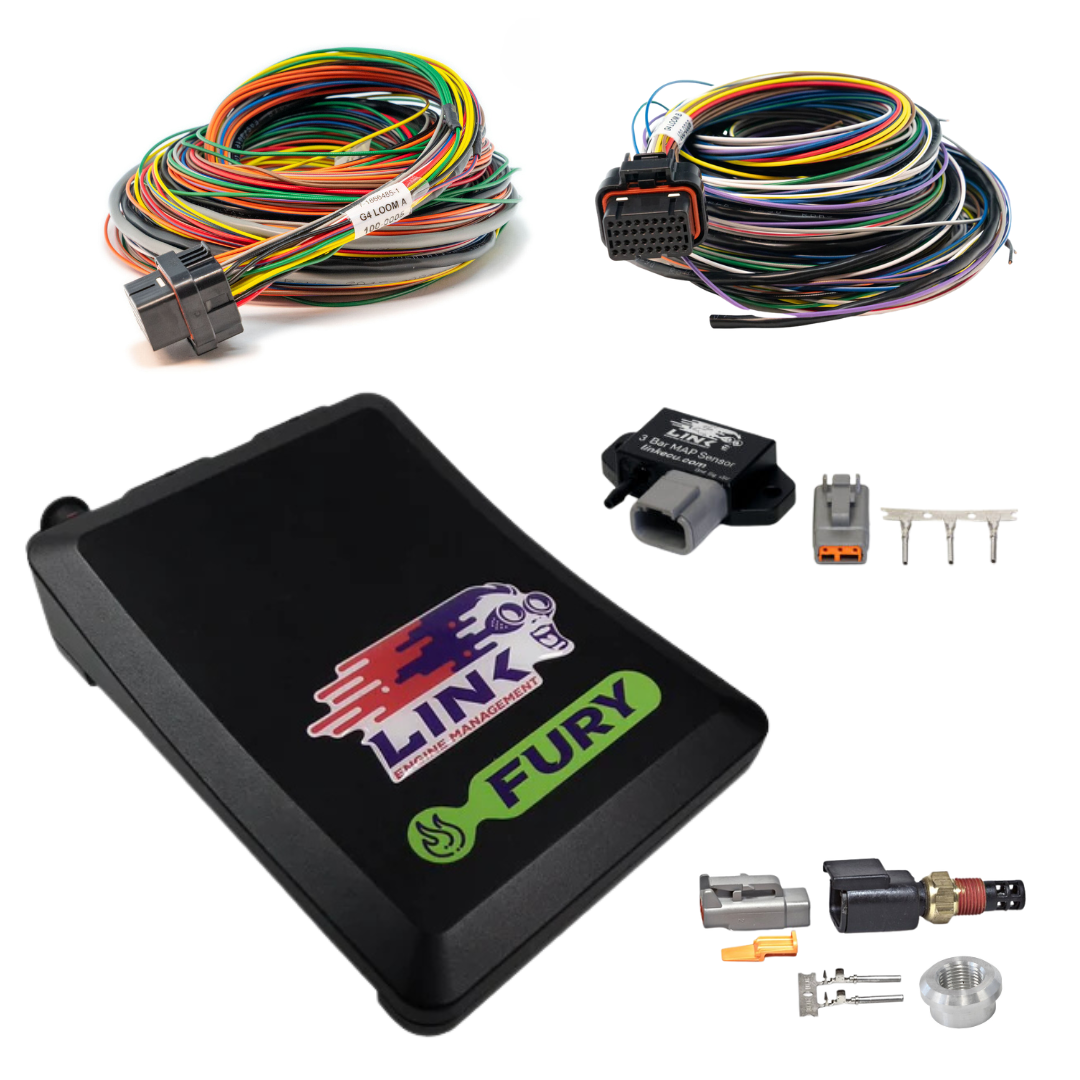

LINK G4X FuryX Package
This kit includes:
- 1x LINK G4X FuryX ECU
- 1x 2.5M A Loom
- 1x 2.5M B Loom
- 1x 3-Bar MAP Sensor (suitable for turbo engines up to approximately 29 PSI of boost - a larger sensor is available upon request) – Bosch
- 1x Intake Air Temperature (IAT) Sensor – MSEL
- 1x IAT Weld-On Boss for the IAT Sensor – Aeroflow
The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control. Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!
With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.
The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.
Inputs
8/10* x Digital inputs
4 x Temperature inputs
9 x Analog inputs
2 x Trigger input
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
Outputs
8 x Injection drives
6 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
Communications
2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
