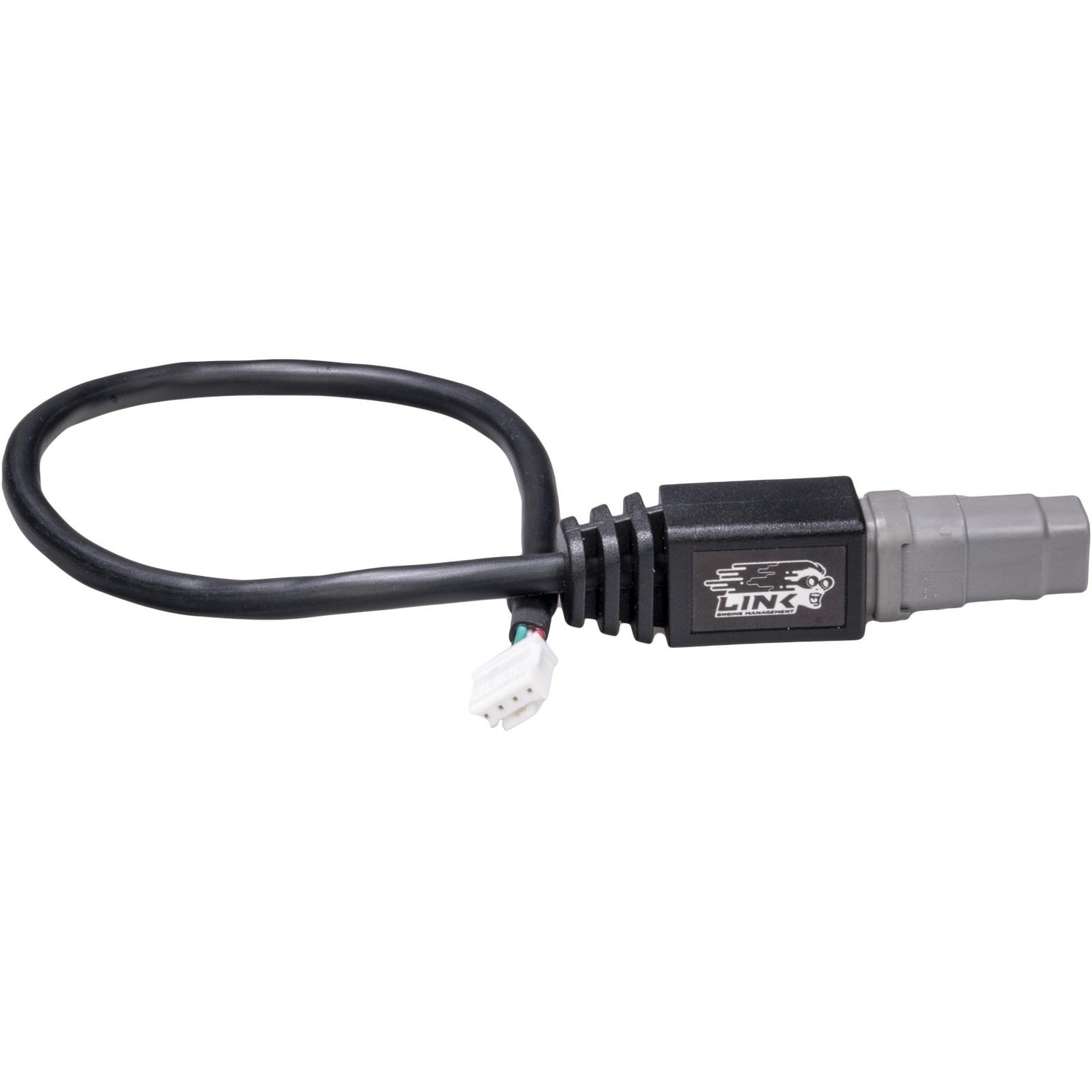

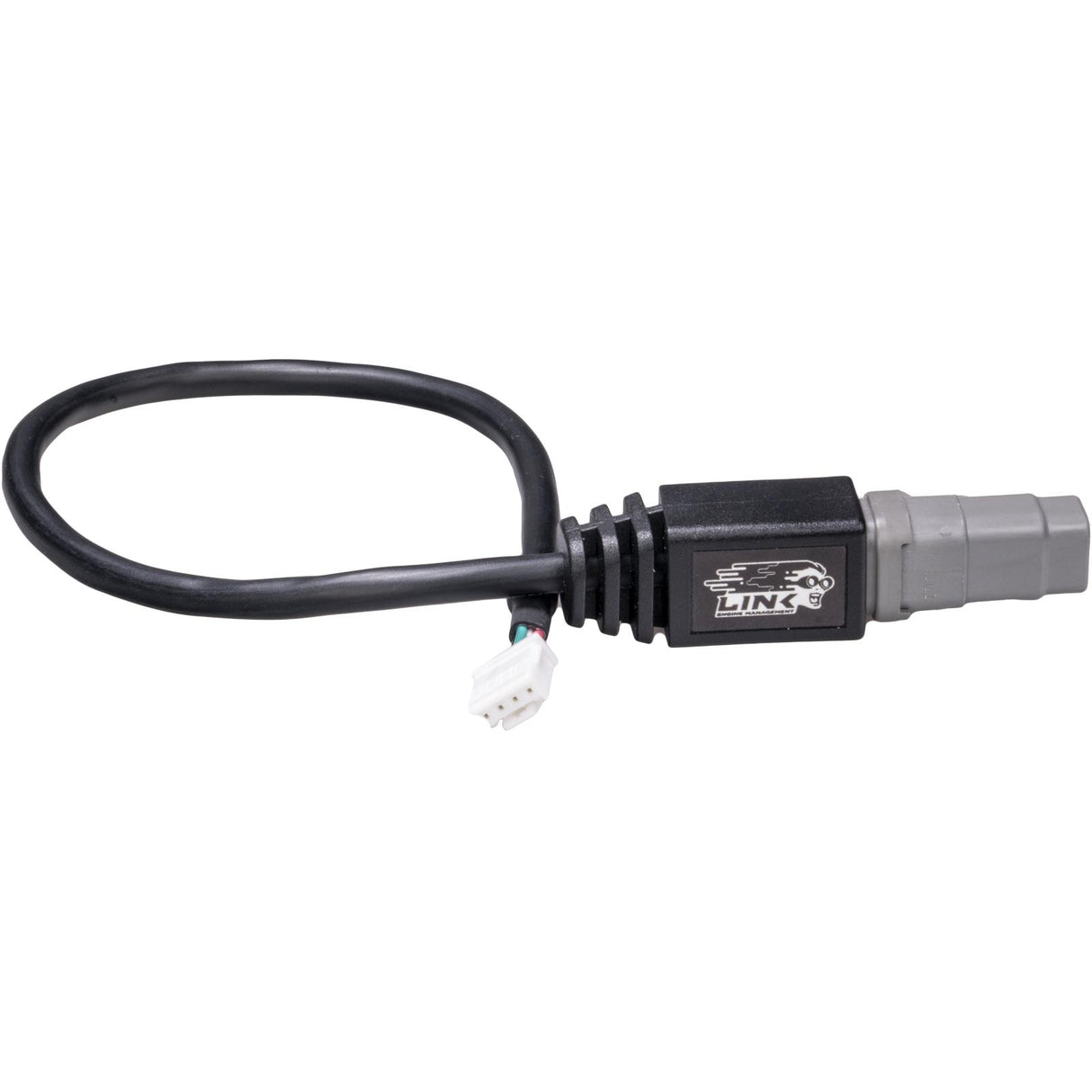

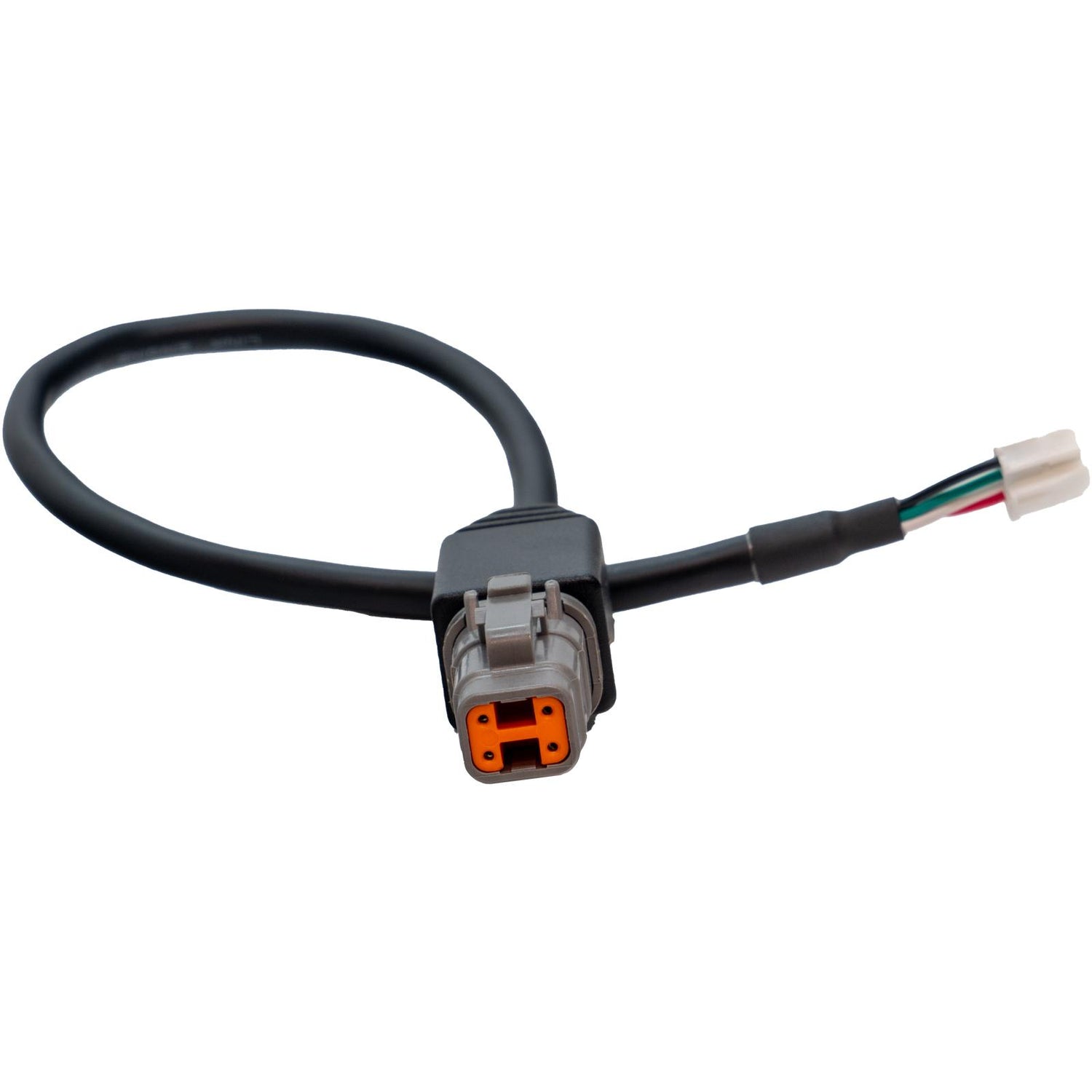

Link CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: 101-0198
Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories. Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A. Note: there are two versions of this cable; both function the same. Compatible PlugIns: 219-4000 - Plugin ECU G4X Mazda RX7 Series 7-8 (V1.4 onwards) 228-4000 - PlugIn ECU G4X Subaru WRX V5-6 233-4000 - PlugIn ECU G4X Honda S2000 AP1 235-4000 - PlugIn ECU G4X Toyota JZX90X 237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX 238-4000 - Plugin ECU G4X Subaru WRX11 239-4000 - Plugin ECU G4X MX5NB2X 240-4000 - Plugin ECU G4X MX5NB1X Specs DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
