Link ECU | SKU: 101-0197

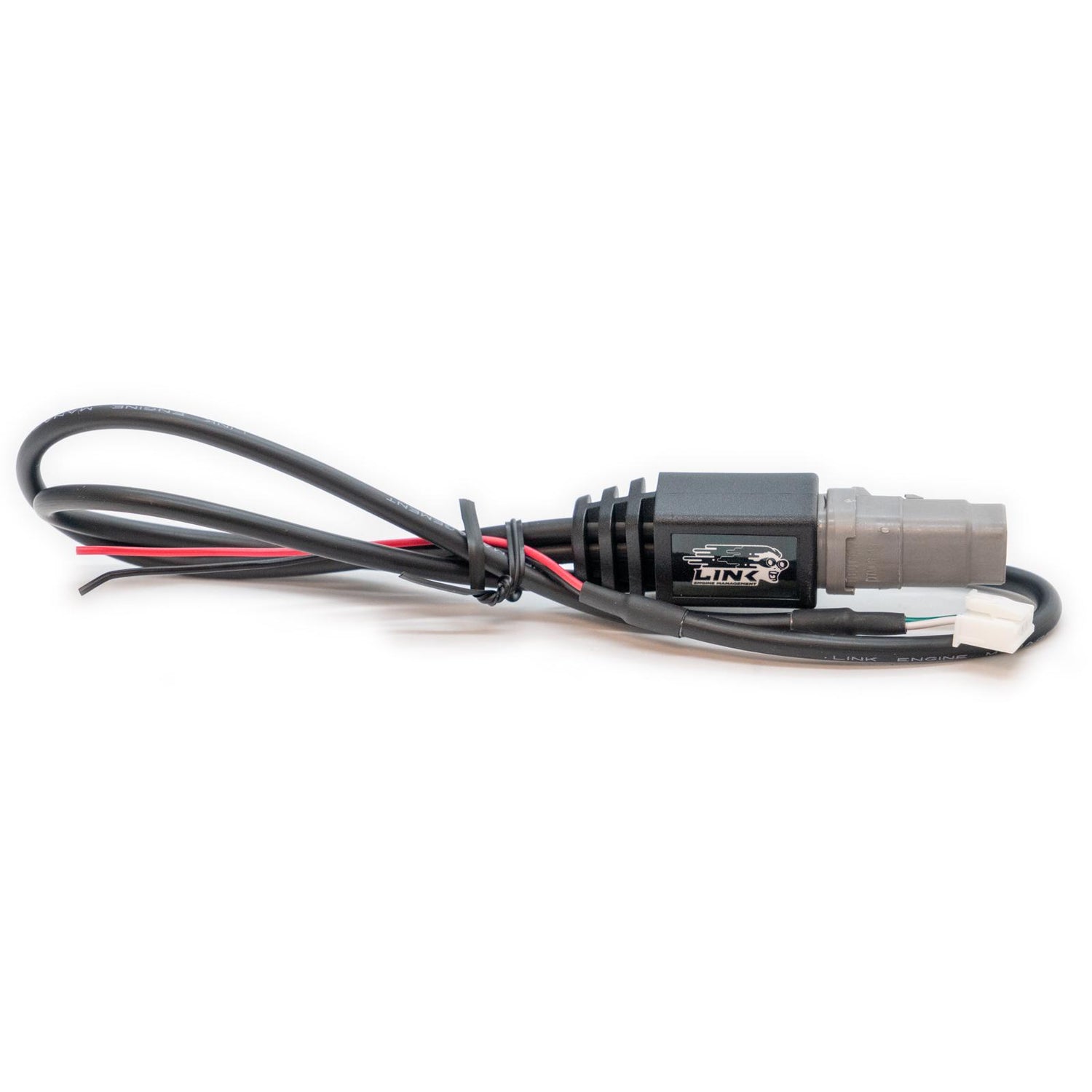

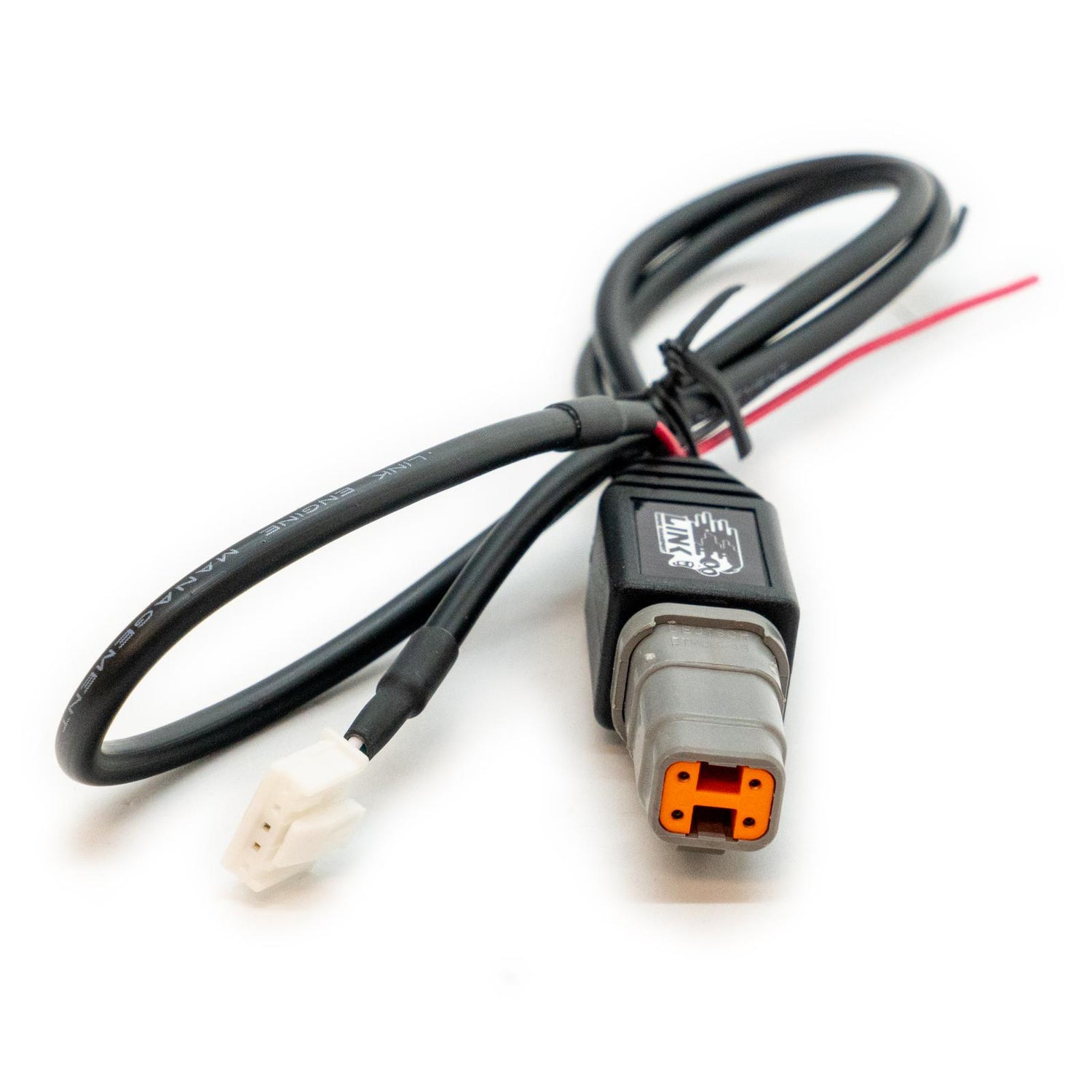

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)

Name: Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)
Brand: Link ECU
SKU: 101-0197
Price: 51.00 NZD
Availability: InStock

$51.00 NZD + GST

Shipping calculated at checkout.

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin) is not in stock at Fast Lane Spares and will ship direct from supplier

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

Part Number: 101-0197

Used to add CAN communications to G4+/G4X Plugin ECU’s which have a 5 Pin CAN connector. Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable ( CANEXT) and CAN Splitter Cable (CANTEE) Not compatible with the below PlugIns (these require a CANJST4 Cable): 233-4000 - PlugIn ECU G4X Honda S2000 AP1 228-4000 - PlugIn ECU G4X Subaru WRX V5-6 237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX 238-4000 - Plugin ECU G4X Subaru WRX11 239-4000 - Plugin ECU G4X MX5NB2X 240-4000 - Plugin ECU G4X MX5NB1X Specs DTM4 Male to JST4. 12V and GND Terminated to JST5. Length 300mm DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
