Link Boost Control Solenoid - 3 Port (3BCS)
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: 101-0015

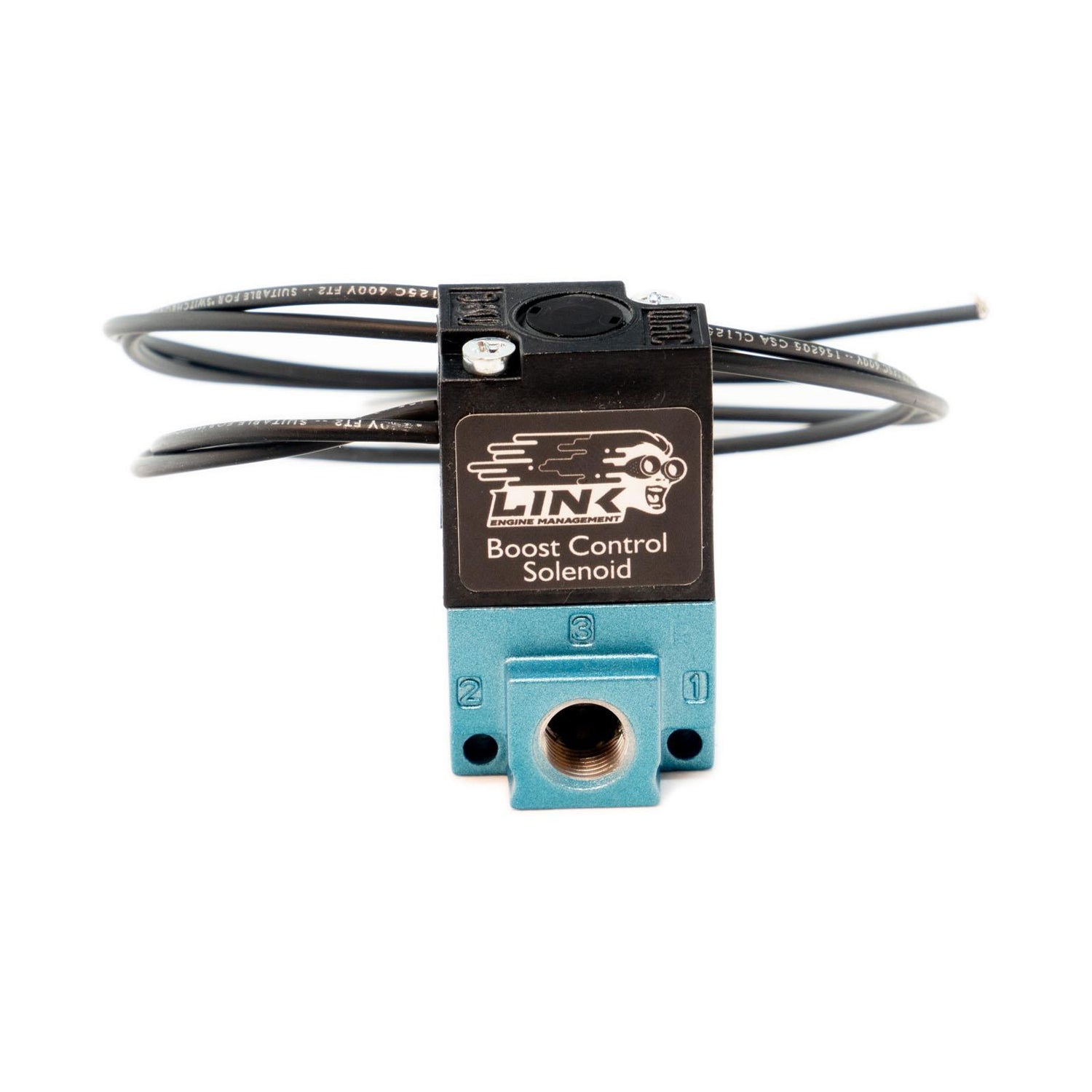

More boost? Of course and this 3 port boost control solenoid will help you do it. 3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate. For higher boost applications consider our 4-Port boost control solenoid. Features: Compatible with all Link ECU’s Can be used with single or multiple wastegates (Using T junction) Compatible with internal or external wastegates Fast and consistent response times High shifting forces MAC 35 series – Rugged, reliable and long operational life Short stroke, high flow Balanced poppet, immune to variations of pressure We recommend starting with a PWM Frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in our PCLink software which is available for free download. Specifications: MAC 35 series 120 PSI max 1/8” BSPPL 12 VDC (5.4W) 18” (45cm) coil leads Includes 3 x 1/8” BSP hose tail fittings for easy connection
