Link 3 Bar MAP Sensor (MAP3)

Name: Link 3 Bar MAP Sensor (MAP3)
Brand: Link ECU
SKU: 101-0164
Price: 180.00 NZD
Availability: InStock

$180.00 NZD + GST

Shipping calculated at checkout.

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

Part Number: 101-0164

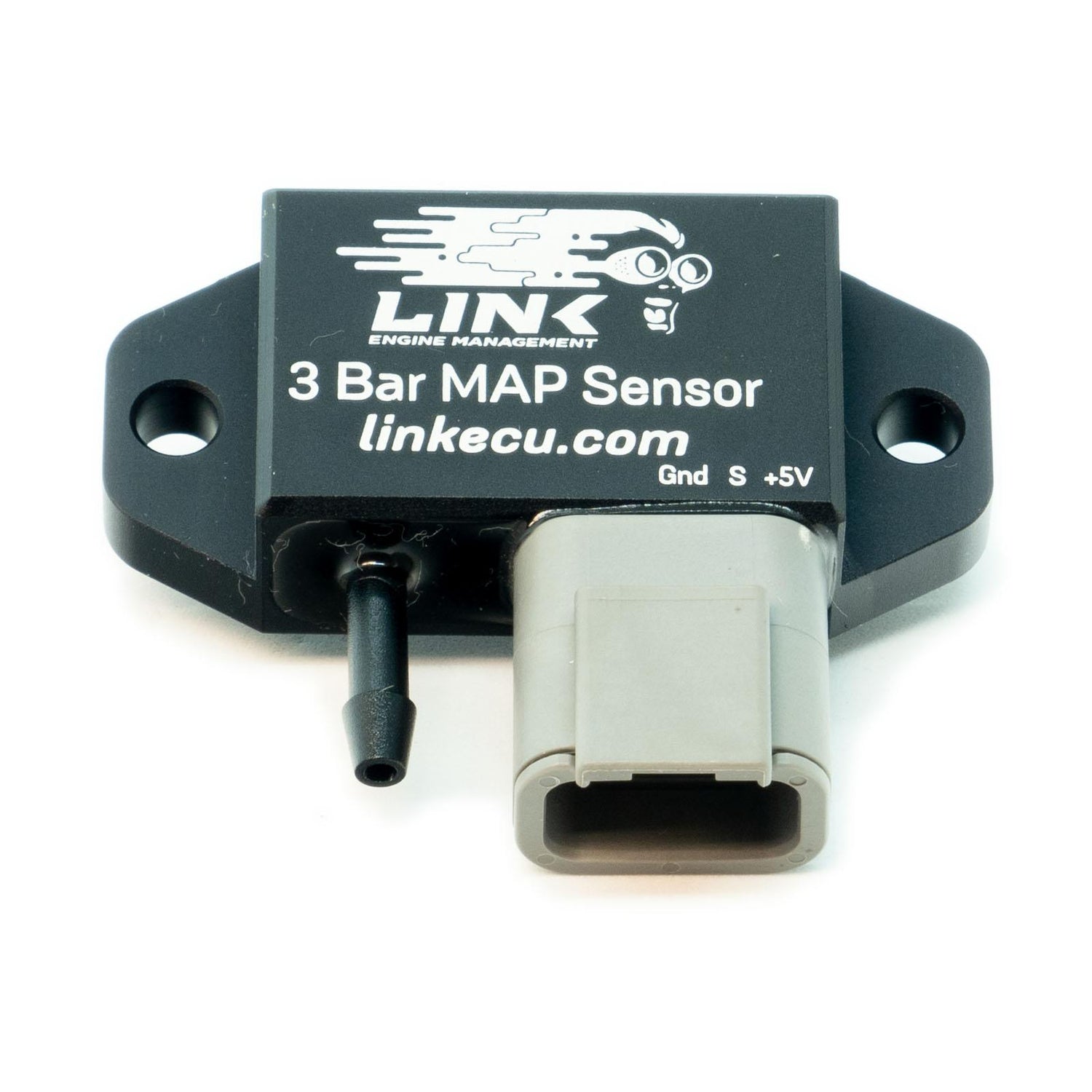

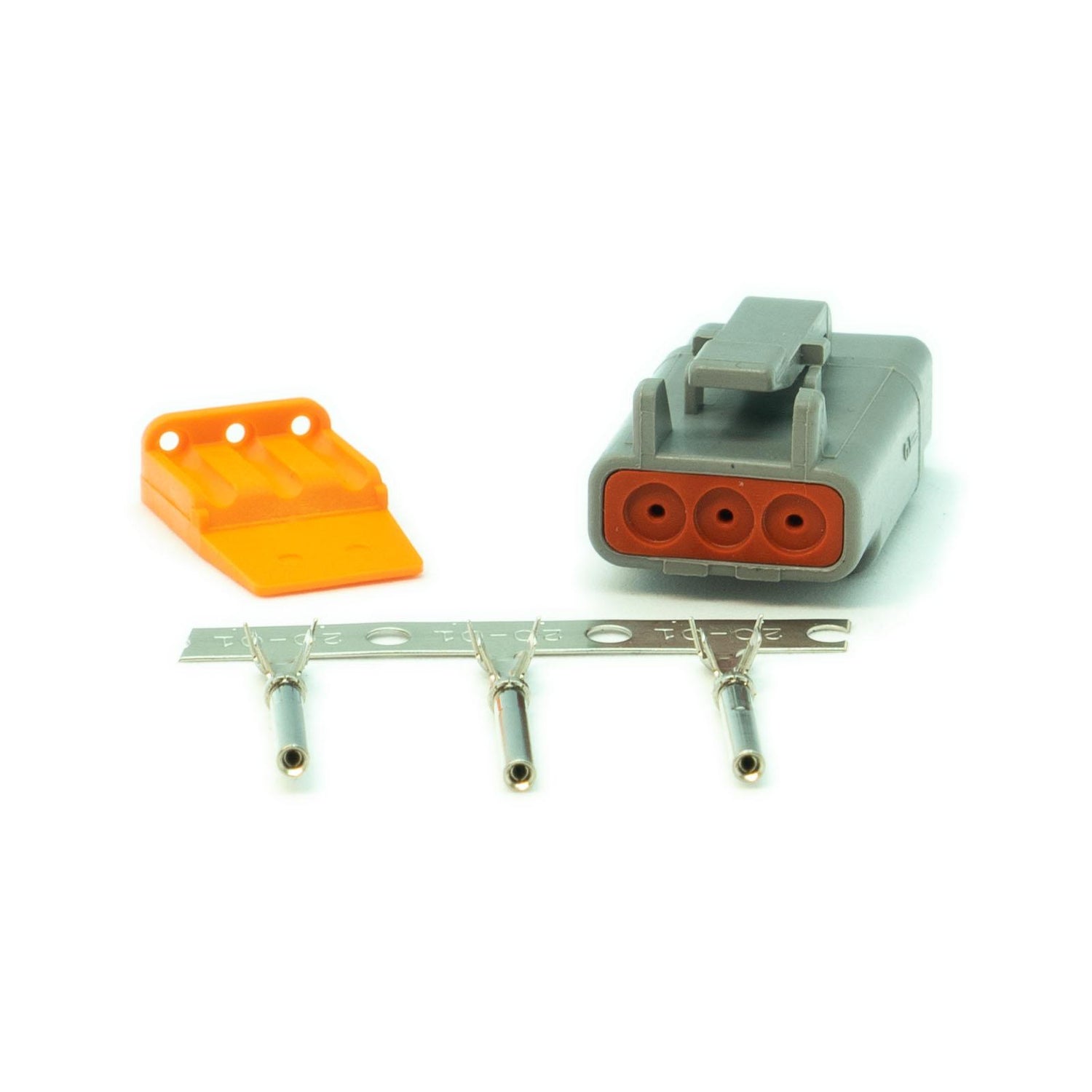

This Link MAP sensor reads up to 3 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 2.0 Bar (or 29psi) of boost pressure. The wiring pinout for this sensor is indicated on the sensor. Includes Deutsch 3-pin connector kit Easy to mount via 2 bolt holes. Note that the sensor should be mounted higher than the intake manifold port that the hose connects to. Compact aluminium enclosure Mechanical connection via 4mm hose connector nipple Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Link 3 Bar’
