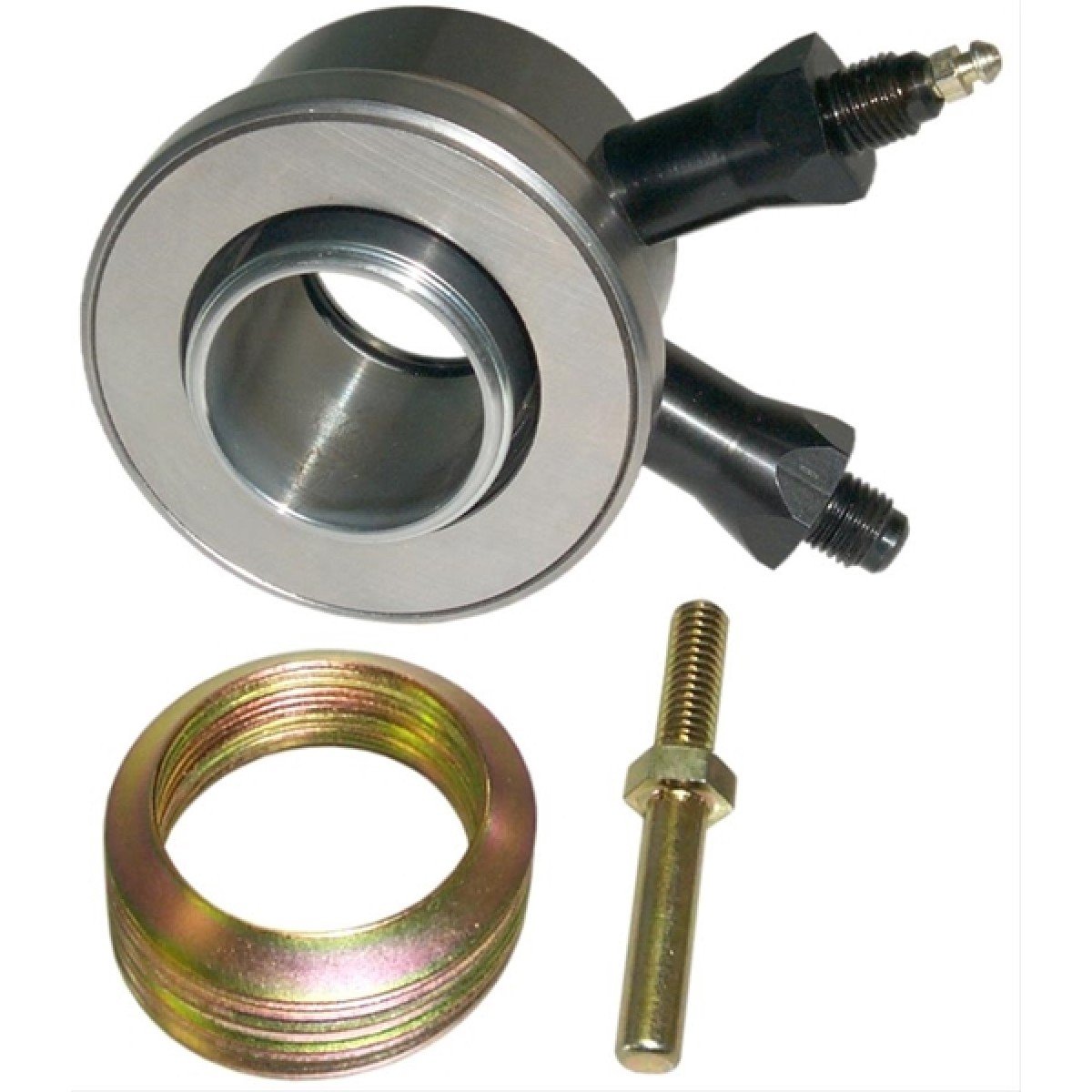

Howe Hydraulic Release Bearing

Designed for race classes that require a stock-style clutch setup.
Installs easily by replacing just one bolt on the front of your transmission.
Includes conical shims for adjusting static height.

Built to suit Saginaw, T-10, Muncie, and Jerico gearboxes, but can work with others that use the same diameter bearing retainer.
The inner diameter of the bearing is 1.379" – check your transmission's input collar to confirm fitment.

Specs:

• Compressed thickness: 1.688"
• Extended length: 2.375"
• Total travel: 0.688"

Recommended Setup:

• 3/4" bore master cylinder
• Minimum 6:1 pedal ratio
• Check if a pedal stop is needed for your setup

Avoid exceeding 1,500 PSI to prevent O-ring damage.
Compatible with most OEM radius-finger diaphragm clutches.
Flat face bearing design.

Must use a radial faced bearing if using a flat finger pressure plate.
