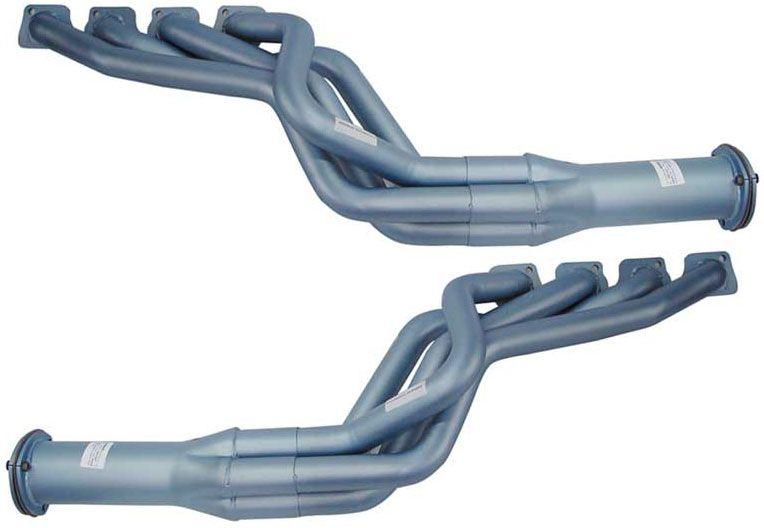

Pacemaker TRI-Y Exhaust Headers 1-5/8" Primary (PH5210)

PH5210 - PACEMAKER HEADERS HOLDEN HQ-WB

Suit Holden HQ-WB 253-308 V8

Part Number: PH5210

Application:
Suit Holden HQ, HJ, HX, HZ, WB 253-308 V8 Manual & Automatic
P/Steering:
Yes
Air Cond.:
Yes
Oxy. Sen.:
N/A
E.G.R.:
N/A
Y Branch:
N/A
Gasket:
DSF 9A
Prim. Pipe:
1-5/8" (41mm)
Sec. Pipe:
1-3/4" (45mm)
Outlet:
2" (51mm)
Fitting Time:
2 Hrs
* Linkages on column auto must be modified. Will fit with HI torque starter motor
* Will fit Ford Toploader gearbox with hatfield bell housing. Will not fit Turbo 400
Pacemaker are the pioneers of quality headers featuring the Mandrel bend system. Pacemaker's modern workshop incorporates the very latest equipment available, including aircraft quality computerised benders with revolutionary, patented, vertebrate type mandrel, ensuring perfectly round bends, previously unavailable in Australia. Pacemaker are the only Australian header manufacturer to manufacture their products with pipe over the cone design. The advantages are there is no protruding inside the collector cone, therefore increasing exhaust gas flow and eliminating turbulence inside the exhaust header. The result is better gas flow and increased horsepower.

Additional features include:
Precision cut and machined thick flanges to eliminate leaking and warpage
All headers are jig welded for guaranteed fitment and are checked prior to shipment

Comprehensive fitting instructions with V8 sets, together with hi-tensile header bolts
Emission hookups provided where applicable
Primary pipes fitted through the flanges
Heat proof finish tested to 1270°C
