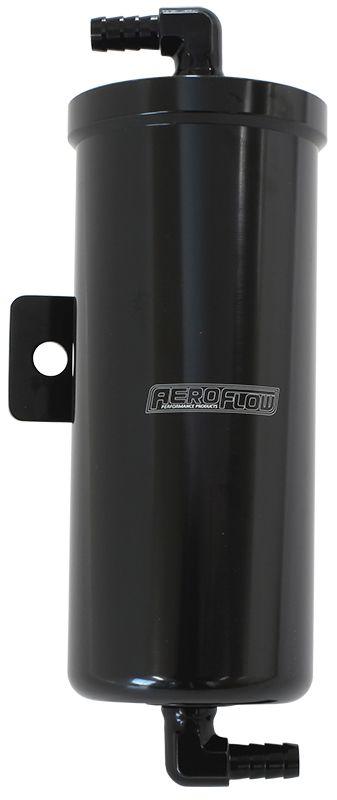

Aeroflow Universal Radiator Overflow Tank (AF77-1029BLK)

AF77-1029BLK - UNIVERSAL OVERFLOW TANK BLACK

6-3/4" (171mm) H x 3" (76mm) O.D - Black Finish

Part Number: AF77-1029BLK

When your radiator coolant gets too hot, it will blow through your overflow spout and all over your engine bay unless you have an overflow tank. Aeroflow's overflow tanks are available in polished billet aluminium or anodised black with 3/8" barb fittings for a simple installation. They will allow the coolant to expand and then recover as the temperature drops.
This tank features a female -6AN O-ring fitting welded on each end of the tank This tank also comes with two -6AN O-ring to 3/8" (9.52mm) barb fittings pre-installed.
To plumb up this tank one fitting on the tank should go to the radiator neck spout. The other barb will be attached to long tube that is mounted inside the overflow tank. This is an extra barb that is designed if the tank gets too full it needs to empty so pressure is not built up inside. Ensure to plumb this barb away from moving components or extreme heat sources to avoid any damages or accidents.

Specifications: Dimensions:
Overall Length- 221mm
Tank Length - 178mm
Tank Diameter - 74.1mm
Capacity - 475ml
3/8" (9.52mm) barbs on each end of tank or -6ORB female ports on each end of tank
