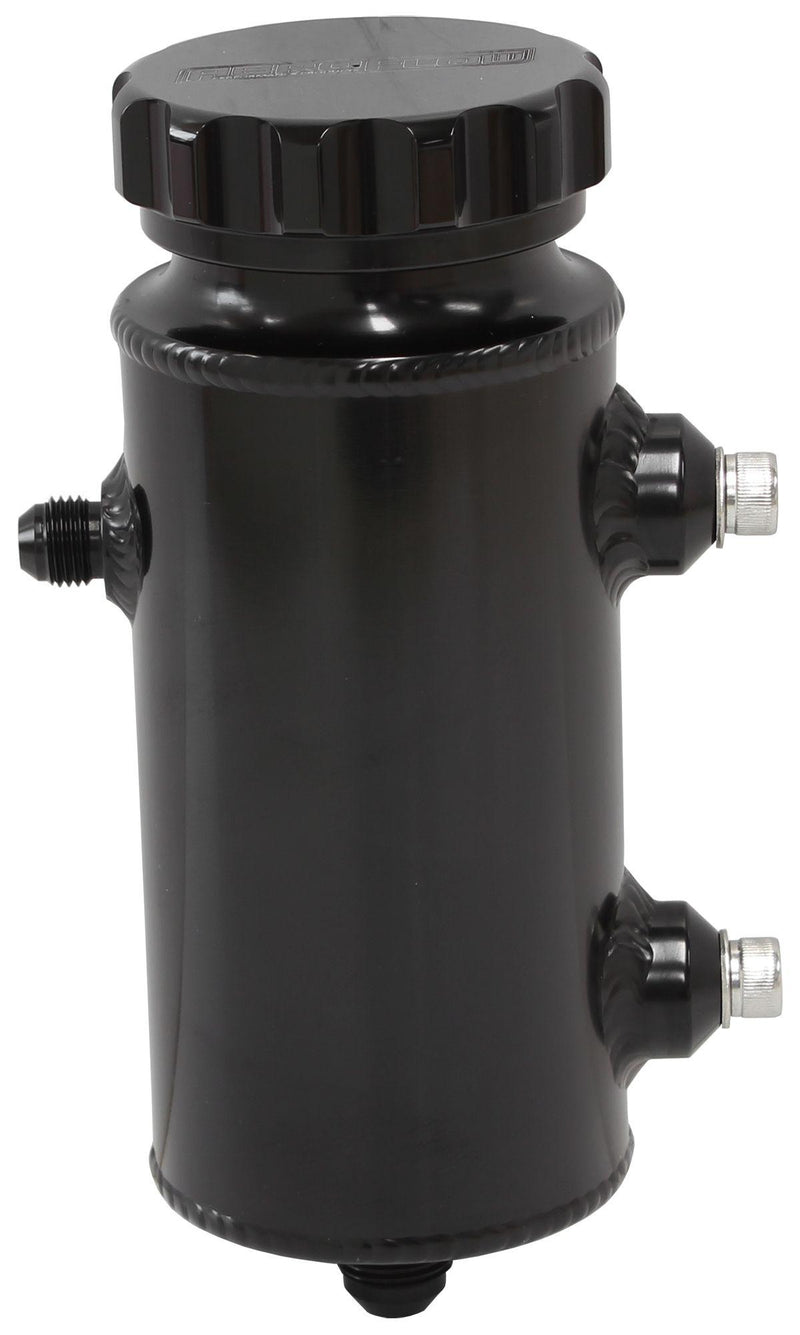

Aeroflow Universal Fabricated Alloy Power Steering Reservoir (AF77-1014BLK)

AF77-1014BLK - UNIVERSAL POWER STEER TANK

650ml capacity, 8" H x 3" Dia., -8AN Feed, -6AN Return, Black finish

Part Number: AF77-1014BLK

Aeroflow universal fabricated power steering remote reservoirs are ideal for applications that can not fit a pump mounted reservoir in conversion cars or you wish to dress up your engine bay with an aftermarket power steering system. They are manufactured from high-grade 6061-T6 aluminium with internal baffles which act like an air separator to keep the fluid from getting foamy or overflowing. Included on the return side we have incorporated a restrictor to prevent aeration within the tank as well.
Each tank features a 50mm (2") billet cap and can hold 650ml (22oz) of fluid. M8 mounting bungs are on each tank for mounting with a -8AN male feed on the bottom and a -6AN male return fitting on the side.
These professionally constructed tanks come either highly polished or in a black anodised finish.
NOTE: At Operating Temperature, Fluid Level Must Stay Above Return Line (-6AN fitting)

Specifications: Dimensions:
Tank Height: 155mm
Overall Height: 200mm
Tank O.D.: 77mm
Centre to Centre of Mounting Bungs: 80mm
M8 x 1.25mm Mounting Bungs
