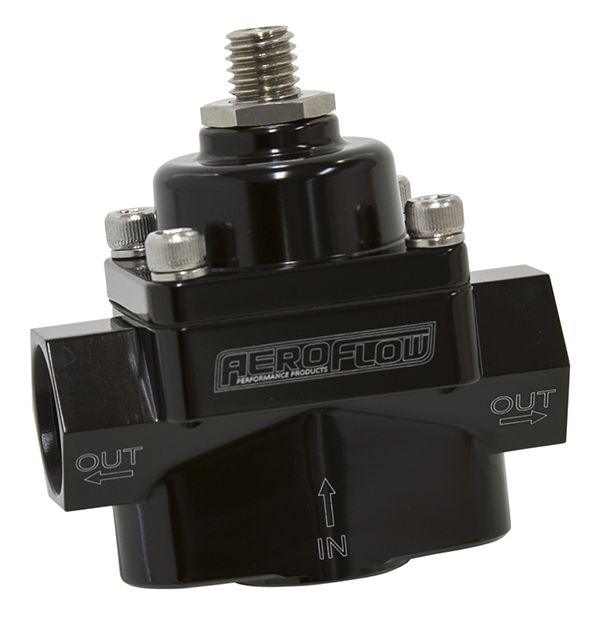

Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4000BLK)
Black Finish. 4.5-9 psi Adjustable
Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4000BLK) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
BLUE STYLE REG 4.5-9 PSI ADJUS
Black Finish. 4.5-9 psi Adjustable
Part Number: AF49-4000BLK
Billet 2 Port Carb Fuel Regulator.
Made from Billet 6061-T6 aluminium, these regulators are an ideal replacement/upgrade from the traditional Holley style 2 port regulator. Available withNPT or ORB fittings and in 2 pressure adjustment ranges - 1-4psi & 4.5-9psi. Available in 4 different finishes - Blue, Red, Black & Polished. Comes with chrome mounting bracket and mounting screws.
Suitable for use with pump fuel, E85 alcohol and diesel fuels.
Note: Recommended for use with Carburettor fuel pumps only - not EFi.
Specifications: Dimensions:
Body Overall Length = 69mm
Body Overall Width = 41mm
Body Overall Height = 62mm
Fittings: 3/8" NPT Female
Adjustable Pressure Range: 4.5-9psi
Important Information: Real world testing of this regulator with a dead head fuel system. Found an AeroflowBlue Fuel Pump (AF49-1009) would regulate from 2-12PSI. With the Compact Silver fuel pump (AF49-1064) would regulate from 3-6 PSI.
