Aeroflow Small Block Chev Fuel Rail Kit for Air Gap Intake Manifold Suits AF6090-1000 and AF6290-1000 Intake Manifolds ONLY (AF6999-1001)
Suits AF6090-1000 and AF6290-1000 Intake Manifolds ONLYSBC EFI FUEL RAIL KIT INTAKE
Suits AF6090-1000 and AF6290-1000 Intake Manifolds ONLY
Part Number: AF6999-1001
Give your Small Block Chev intake manifold the capabilityto flow some serious flow to feed even the most fuel hungryapplications. These Chevy fuelrails from Aeroflow Performance are specifically designed for use with the Small Block Chev with EFI bungs air gap intake manifold.It will not suit any factory Chevy intake manifold.
Each fuel railis precision CNC machined fromextruded 6063 aluminium with alarge internal diameter bore with -6ORB ports on each end and anodized black.
The injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel typesincluding popular alcohol mixtures such as E85.
This kit includes all mounting hardware to mountto the intake manifold.
Specifications:
Requires the use of 14mm short (33.60mm) fuel injectorsor 14mm full length (60.63mm) fuel injectors.

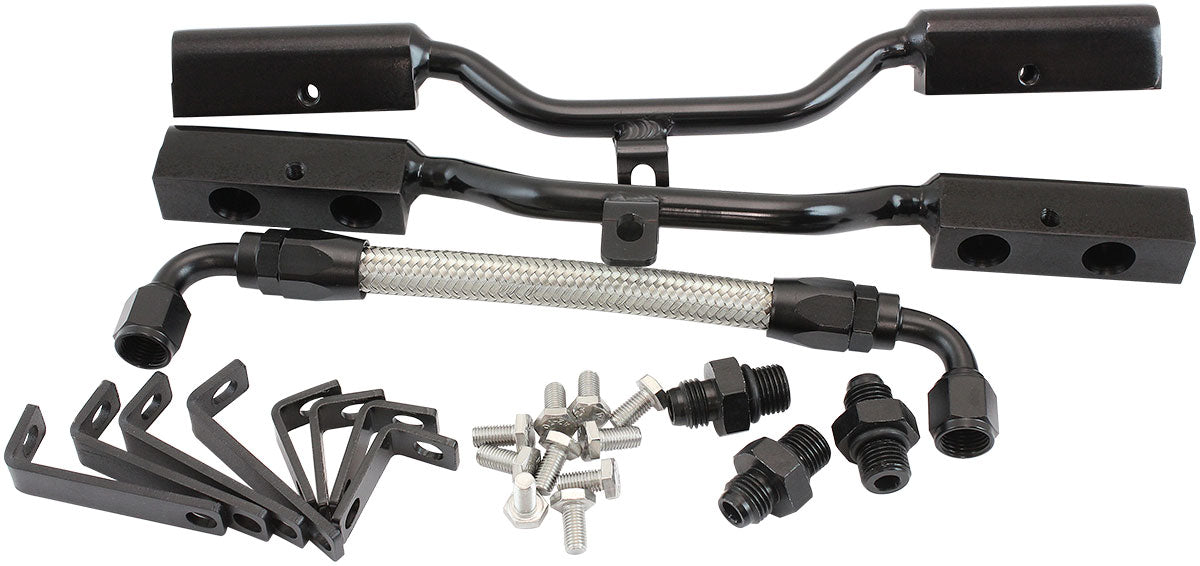

AF6999-1001 Includes
2 xFuel Rails (-6ORB)
-6AN cross over 200 series braided line with two 90 degree non full flow fittings
3 x -6an to -6ORB fittings
1 x -6ORB hex port plug
4 xlong mounting brackets
4x short mounting brackets
10 x 1/4-20" hex screws (12mm UHL)
Important Information:
This Fuel Rail kit will notsuit Factory Chevy Intake Manifolds. This fuel rail kit can only be used with AeroflowPerformance Small Block Chev EFI Air Gap intake manifold (AF6090-1000 and AF6290-1000)
