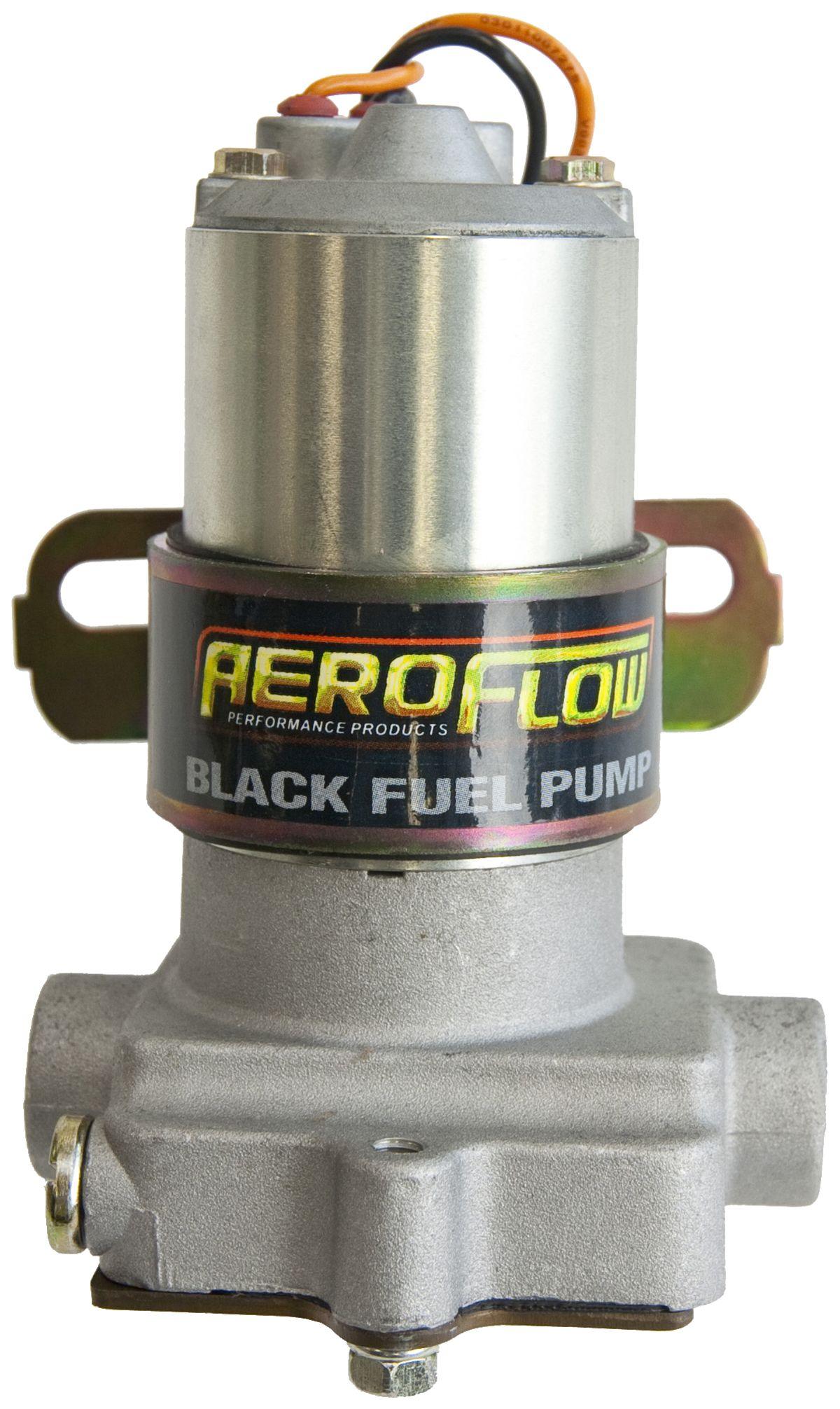

Aeroflow Electric "Black" Fuel Pump (AF49-1010)

Aeroflow Black 140GPH Fuel Pump.

The Black fuel pump is a high pressure fuel pump which operates at a free flow of 140GPH at a set pressure of 14psi (0.96BAR). We recommend the use of a carburettor fuel regulator. This meets the flowrequiremetns of high performance carburettor applications. This motor draws2 amps of current and an 8amp fuse is recommended.

Compatible with Unleaded, E85, Methanol and Diesel. (When running Alcohol fuels the service life will be reduced and filter maintenancemust be increased).

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessaryto allow for an adequate fuel supply. It is designed to pushthe fuel and not pull the fuelout of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
