Stromberg S/S Fuel Line Kit (STROM9146-BIG)

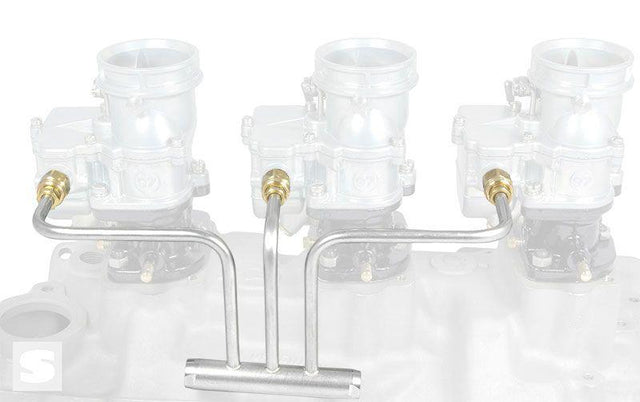

Our classic stainless steel3-into-1 fuel line (Big Bore 5/16in OD) for Small Block Chevy 3x2 intakes, combines super-clean looks with simple TwoStep installation. Designedand manufactured exclusively by Stromberg Carburetor, each kit is supplied ready to install, complete with special5/16in Ford Nut compression fittings into the carburetor. Check out the features!

Set at 5-1/2incarb spacing to fit Offenhauser and Edelbrock SBC intakes, this kit uses CNC-bent 5/16†OD 304 stainless steel lines with leak-free, 'invisible' furnacebrazed joints. The round-bar fuel block sits down close to the manifold, matching the 4 degree Chevy intake angle to align visually with the valve covers. For maximum versatility, it has 1/4NPT threads at both ends with machined 11/16in AF flats so fittings can be tightened safely without damaging the line.

To help hot rodders complete the fuel lineinstallation, a complementary range of 1/4NPT brass fittingsis also available from Stromberg. Retaining the traditional hot rod look, theymake it so much easier to get fuel into the block and mount a liquid-filled fuel pressure gauge. NPT fittings illustrated are not included with this kit. Please order separately.

1. 9178K 1/4NPT 90deg elbow (for fuel pressure gauge)
2. 9179K 1/4NPT to 1/8NPT bush (for fuel pressure gauge)
3. 9180K 1/4NPT hard line compression adapter (for 5/16in hard line)
4. 9181K 1/4NPT hexhead plug
5. 9182K 1/4NPThose fitting

Note:Use 9564K-BIG Stromberg S-jets
Stromberg Big Borefuel lines must be used with Stromberg 9564k-BIG S-jet inlet valves. Fitted as standard on Stromberg BIG 97s,they are specially designed totake 5/16in OD stainless steelline. If you have regular Stromberg 97 carburetors, you MUST update to 9564K-BIG S-jets.

• 5-1/2†carbspacing for Small Block Chevy
• Fits Offenhauserand Edelbrock SBC intakes
• Big Bore 5/16in CNC-bent stainless lines
• Fuel block anglealigns with valve covers
• Ford Nut compression fittings included
• Classic 3-into-1 shape - keeps everything on the engine
• 1/4NPT threads at both ends of fuel block - fittings available from Stromberg!
• Must use 9564K-BIG S-jet inlet valves (standard on Stromberg BIG 97)
• Use with Stromberg9246S or 9246PRO linkage
