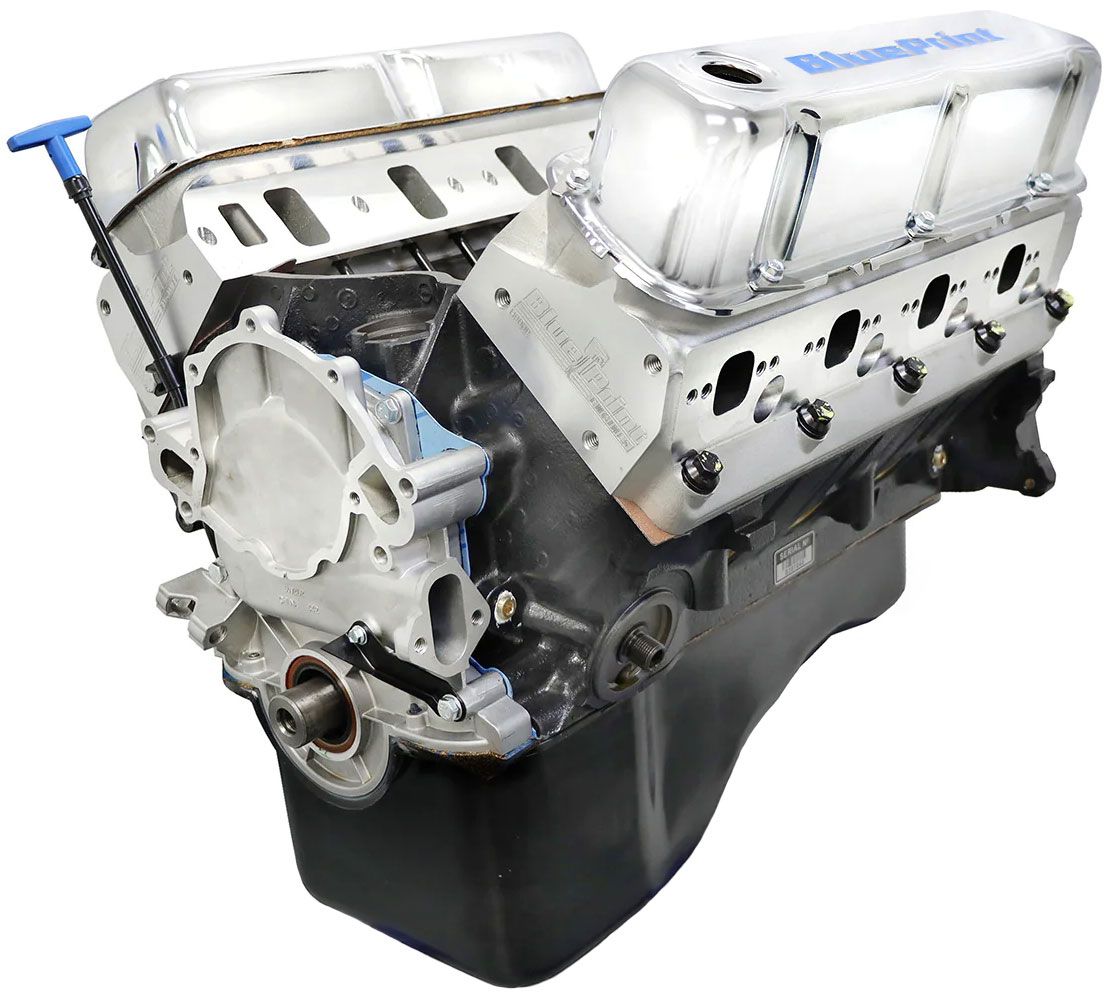

Blueprint SB Ford 408 c.i.d Long Crate Engine (PSEBPF4088CT)
This is a special order item!
We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.
PSEBPF4088CT - FORD CRATE MOTOR 351w 408 CU
425 HP/470ft-lbs Torque, 9.8:1 Comp
Part Number: PSEBPF4088CT
HP & Torque: 425 HP / 455 FT
Compression Ratio: 9.8:1
Aluminium Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons
BLOCK:
Hand picked seasoned block Square and parallel decked Line honed main bearing bore Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are Sonic tested for thickness
2-Bolt Main
4.000" Bored
1-Piece Rear Main Seal
Mech fuel pump provision: yes
ROTATING ASSEMBLY:
New Cast steel crankshaft 4.000" Stroke
Forged I-Beam 6.200" connecting rods
Forged Pistons
Internal Balance
CYLINDER HEADS:
BluePrint Aluminium Cylinder Heads -HP9009
60cc chamber
2.02" intake/1.60" exhaust valves
90cc intake/65cc exhaust runners
CAM SPECS:
Roller
.543 Intake / .554 Exhaust
218 Intake / 226 Exhaust duration @ .050 - 112 degree lobe separation
IGNITION TIMING:
34 degrees total at 3500 RPM
ALSO INCLUDES:
Oil pan, dipstick, timing cover and valve covers
Dyno tested and shipped with result s
