Blueprint | SKU: PSEBPF4089CTC

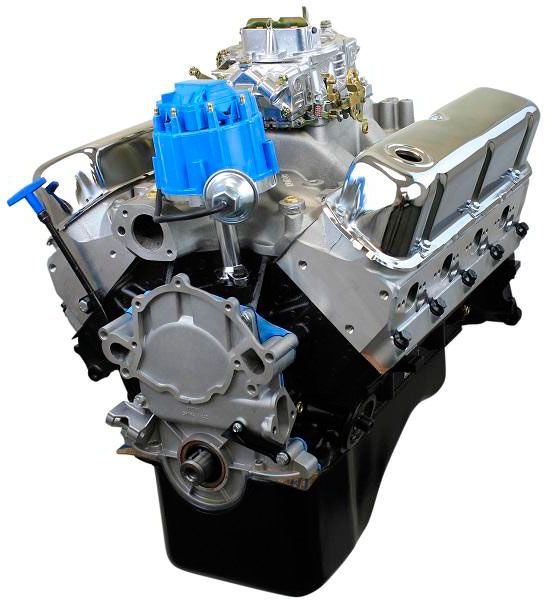

Blueprint SB Ford 408 c.i.d Long Crate Engine (PSEBPF4089CTC)

Name: Blueprint SB Ford 408 c.i.d Long Crate Engine (PSEBPF4089CTC)
Brand: Blueprint
SKU: PSEBPF4089CTC
Price: 18973.70 NZD
Availability: OutOfStock

$18,973.70 NZD + GST

Shipping calculated at checkout.

We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.

Description

FORD CRATE MOTOR 351w 408 CU

450 HP/470ft-lbs Torque, 9.8:1 Comp

Part Number: PSEBPF4089CTC

HP & Torque: 450 HP / 470 FT LBS
Compression Ratio:9.8:1
Aluminium Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons

BLOCK:
Hand picked seasoned block
Square and paralleldecked
Line honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are Sonic tested for thickness
2-Bolt Main
4.000"Bored
1-Piece Rear Main Seal
Mech fuel pump provision: yes

ROTATING ASSEMBLY:
New Cast steel crankshaft
4.000" Stroke
Forged I-Beam 6.200" connecting rods
Forged Pistons
External 28 Oz. Balance front and rear

CYLINDER HEADS:
BluePrintAluminium Cylinder Heads -HP9009
60cc chamber
2.02" intake/1.60" exhaust valves
90cc intake/65cc exhaust runners

CAM SPECS:
Roller
.579 Intake / .579 Exhaust
236 Intake / 248 Exhaust duration @ .050 - 114 degree lobe separation

IGNITION TIMING:
34 degrees total at 3500 RPM

ALSO INCLUDES:
Intakemanifold
Distributor
Carburettor
Oil pan, timing cover and valve covers
Dyno tested and shipped with results
