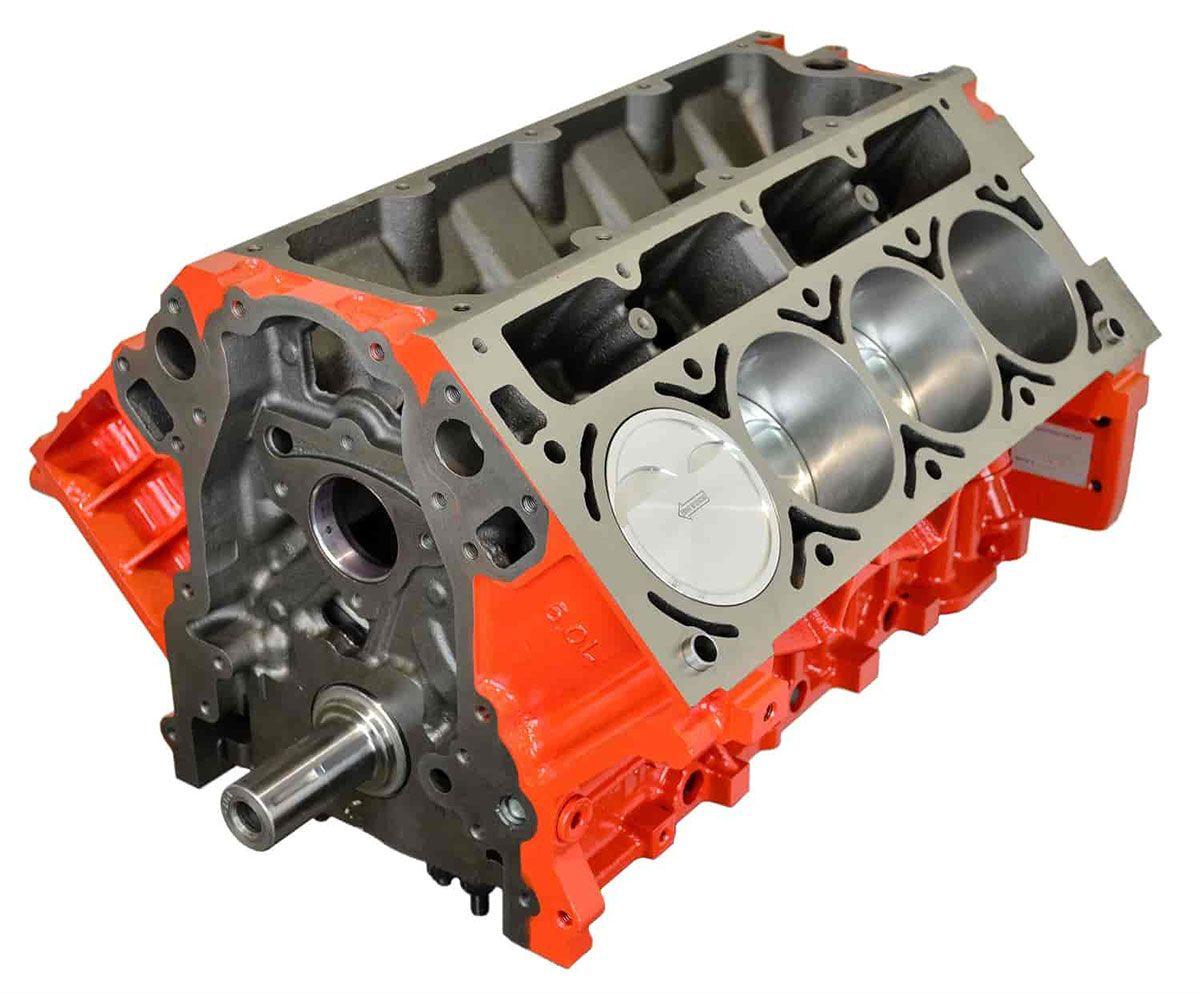

GM LQ9 6.0L Short Crate Motor (GMSP96-G4)

GM LQ9 6.0L Short Crate Motor (GMSP96-G4)

4.000" Bore x 3.622" Stroke
SKU: GMSP96-G4
Contact for availability
$9,448.30 - $9,448.30
$9,448.30
$9,448.30 - $9,448.30
$9,448.30
+ GST

This is a special order item!

We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.

GMSP96-G4 - CHEVY LQ9 SHORT MOTOR 6.0L

4.000" Bore x 3.622" Stroke

Part Number: GMSP96-G4

Short Engine Features:
Block: GM 6.0L Iron Gen IV
Bore/Stroke: 4.000" x 3.622"
Displacement: 364 C.I.D.
Crankshaft: OE Reground 3.622" Internally Balanced 58 Tooth
Connecting Rods: Scat 4340 Forged I Beam 6.125" ARP 8740 Bolts
Pistons: Wiseco 2618 Forged -11cc Dish
Piston Rings: Wiseco GFX with Steel Top Ring
Compression Ratio: 64cc = 9.7:1 / 68cc = 9.3:1 / 72cc = 8.9:1 (can vary due to deck height/gasket thickness)
Camshaft Bearings: Installed & Clocked to OEM Position
Freeze Plugs: Brass Installed & Sealed Oil Galley Plugs: Installed & Sealed
